BINDER - M12-A, angled, wire clamp, shielding ring, shieldable

M12-A, angled, wire clamp
M12-A, angled, crimp

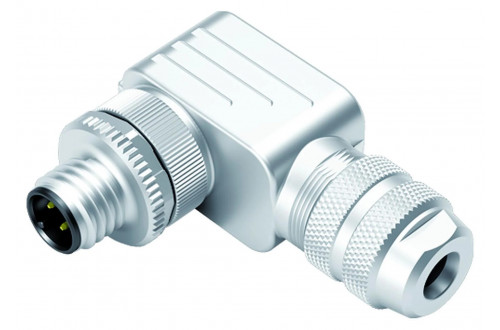

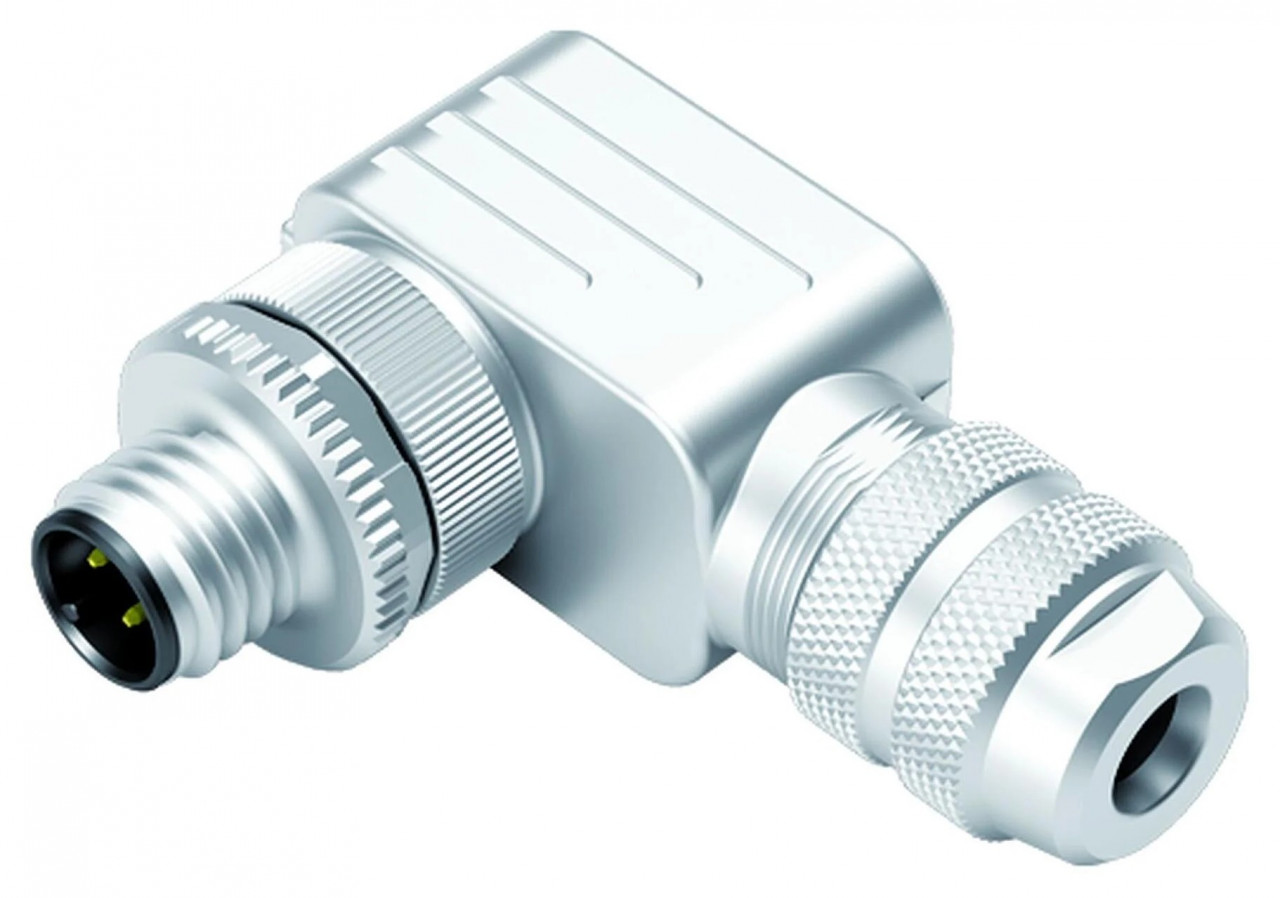

BINDER - M12-A, angled, wire clamp, shielding ring, shieldable

Click to zoom

For illustration purpose only

Brand : BINDER
Code numberSupplier Type Ingress Protection Rated voltage Max. current (A) Locking type Gender Min mating cycles Number of poles Cable outlet Minimum temperature (°C) Maximum temperature (°C) External diameter (mm) Shielded Length (mm)StockPrice ( ExVAT )
436 03907 99 1525 824 04 M12-A IP67 250 4,0 Screw Male 100 4 4,0 - 6,0 -40 85 20,2 o 42
436 03906 99 1525 822 04 M12-A IP67 250 4,0 Screw Male 100 4 6,0 - 8,0 -40 85 20,2 o 42
436 03929 99 1537 824 05 M12-A IP67 60 4,0 Screw Male 100 5 4,0 - 6,0 -40 85 20,2 o 42
436 03928 99 1537 822 05 M12-A IP67 60 4,0 Screw Male 100 5 6,0 - 8,0 -40 85 20,2 o 42
