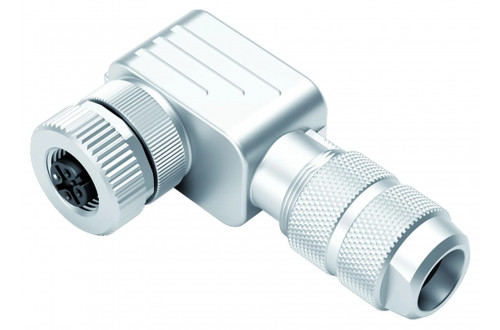

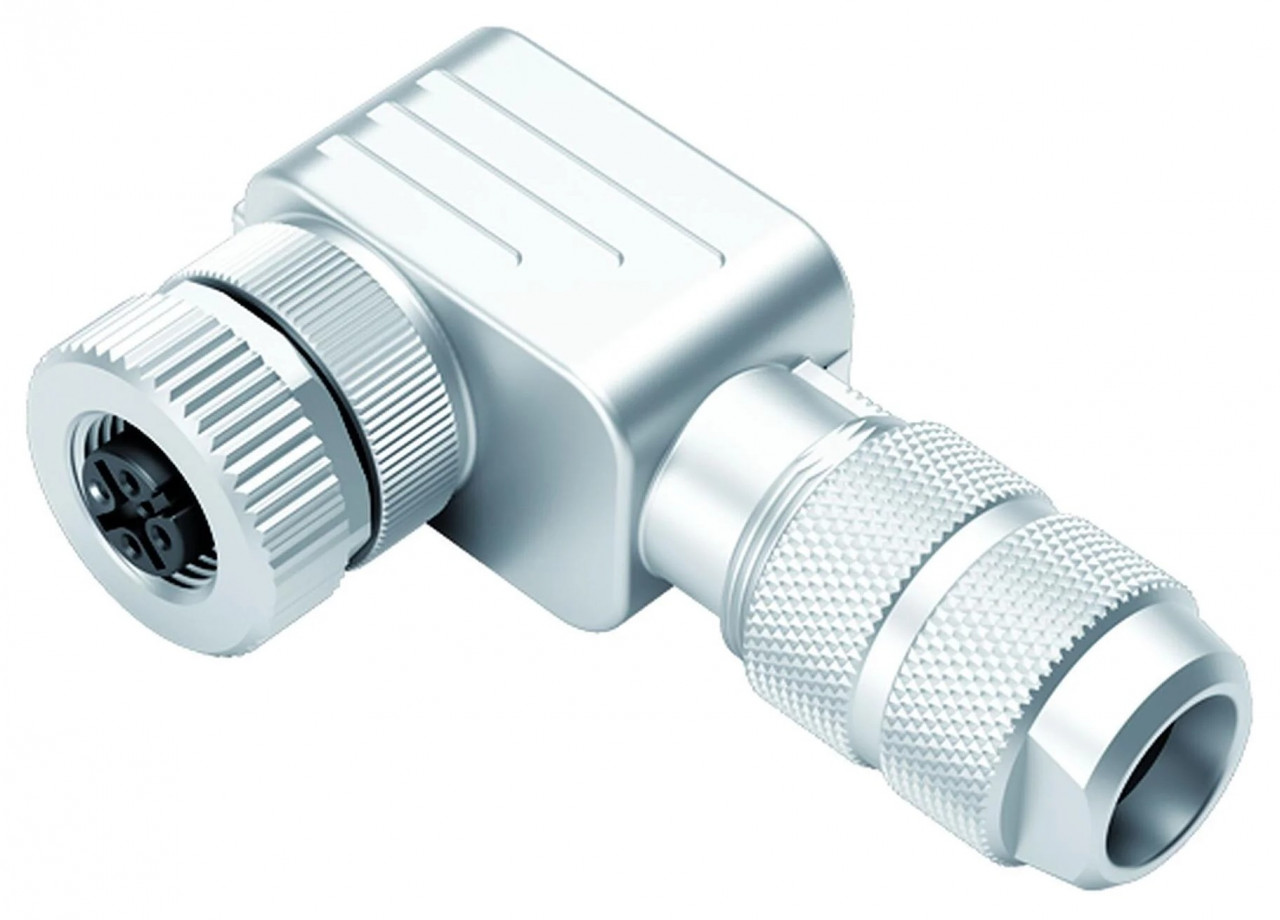

BINDER - M12-A, angled, screw clamp, iris spring, shieldable

M12-A, angled, plastic locking, screw clamp
M12-A, angled, screw clamp, power
BINDER - M12-A, angled, screw clamp, iris spring, shieldable

Click to zoom

For illustration purpose only

Brand : BINDER
Code numberSupplier Type Ingress Protection Rated voltage Max. current (A) Locking type Gender Min mating cycles Number of poles Cable outlet Minimum temperature (°C) Maximum temperature (°C) External diameter (mm) Shielded Length (mm)StockPrice ( ExVAT )
436 03835 99 1432 824 04 M12-A IP67 250 4,0 Screw Female 100 4 5,0 - 8,0 -40 85 20,2 o 37
436 03873 99 1438 824 05 M12-A IP67 60 4,0 Screw Female 100 5 5,0 - 8,0 -40 85 20,2 o 37
436 03892 99 1488 824 08 M12-A IP67 30 4,0 Screw Female 100 8 5,0 - 8,0 -40 85 20,2 o 37
