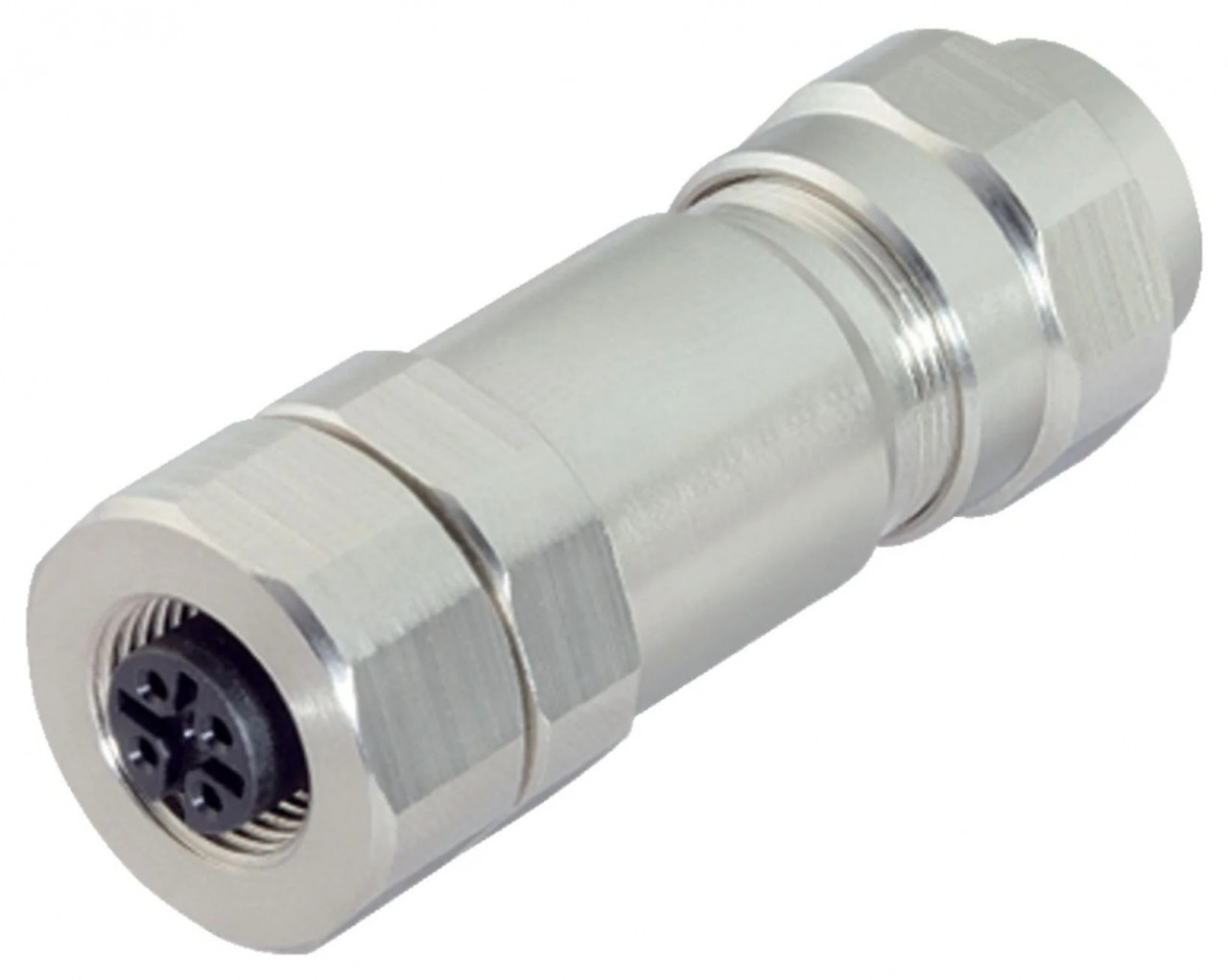

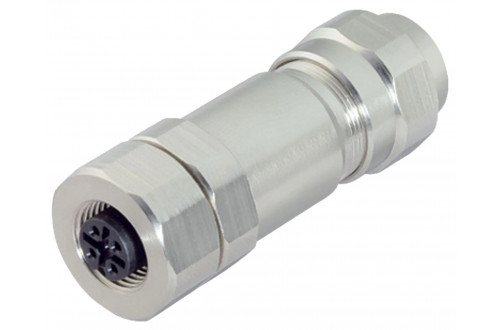

BINDER - M12-A, screw clamp, shielding ring, shieldable, stainless

M12-A, screw clamp, shielding ring, shieldable, stainless
M12-A, screw clamp/solder, shielding ring, shieldable
BINDER - M12-A, screw clamp, shielding ring, shieldable, stainless

Click to zoom

For illustration purpose only

Brand : BINDER
Code numberSupplier Type Ingress Protection Rated voltage Max. current (A) Locking type Gender Min mating cycles Number of poles Cable outlet Minimum temperature (°C) Maximum temperature (°C) External diameter (mm) Shielded Length (mm)StockPrice ( ExVAT )
436 03828 99 1430 991 04 M12-A IP67 250 4,0 Screw Female 100 4 3,0 - 5,5 -40 85 20 o 57
436 03829 99 1430 992 04 M12-A IP67 250 4,0 Screw Female 100 4 5,5 - 8,6 -40 85 20 o 57
436 03854 99 1436 991 05 M12-A IP67 60 4,0 Screw Female 100 5 3,0 - 5,5 -40 85 20 o 57
436 03855 99 1436 992 05 M12-A IP67 60 4,0 Screw Female 100 5 5,5 - 8,6 -40 85 20 o 57
436 03884 99 1486 992 08 M12-A IP67 30 2,0 Screw Female 100 8 5,5 - 8,6 -40 85 20 o 57
436 03903 99 1492 992 12 M12-A IP67 30 1,5 Screw Female 100 12 5,5 - 8,6 -40 85 20 o 57
