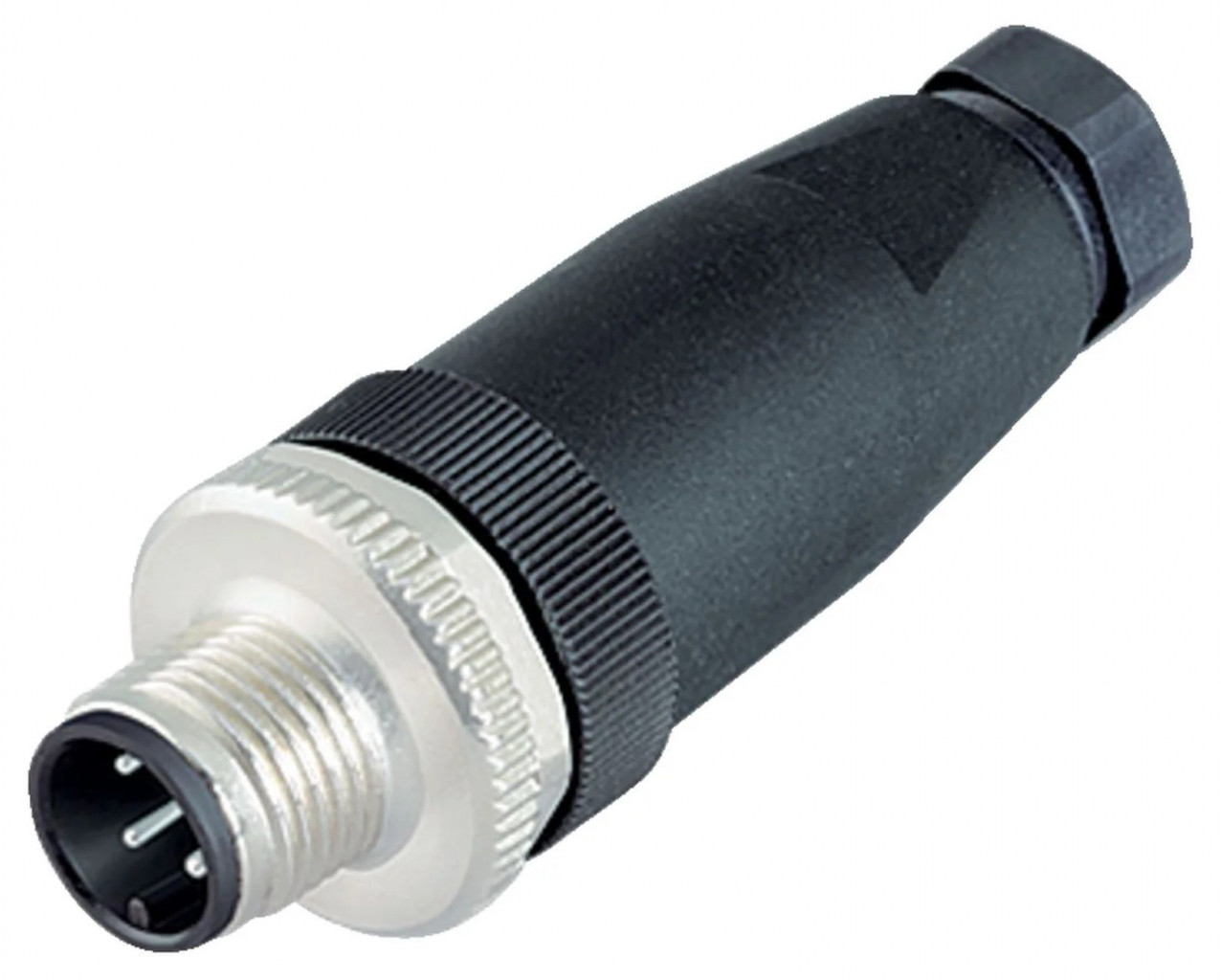

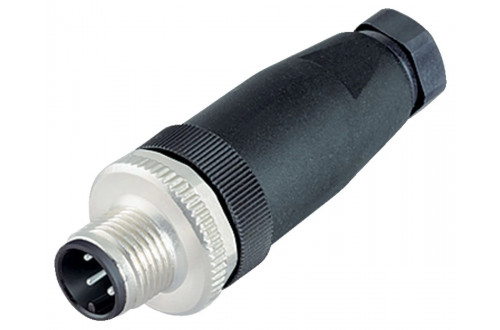

BINDER - M12-A, wire clamp

M12-A, screw clamp, stainless
M12-A, wire clamp
BINDER - M12-A, wire clamp

Click to zoom

For illustration purpose only

Brand : BINDER
Code numberSupplier Type Ingress Protection Rated voltage Max. current (A) Locking type Gender Min mating cycles Number of poles Cable outlet Minimum temperature (°C) Maximum temperature (°C) External diameter (mm) Shielded Length (mm)StockPrice ( ExVAT )
436 03519 99 0525 14 04 M12-A IP67 250 4,0 Screw Male 100 4 4,0 - 6,0 -40 85 20,2 Delete 60
436 03518 99 0525 12 04 M12-A IP67 250 4,0 Screw Male 100 4 6,0 - 8,0 -40 85 20,2 Delete 60
436 03540 99 0537 14 05 M12-A IP67 60 4,0 Screw Male 100 5 4,0 - 6,0 -40 85 20,2 Delete 60
436 03539 99 0537 12 05 M12-A IP67 60 4,0 Screw Male 100 5 6,0 - 8,0 -40 85 20,2 Delete 60
