BINDER - M12-A, angled, screw clamp, stainless

M12-A, angled, metal locking, screw clamp/solder
M12-A, angled duo connector, plastic locking, screw clamp

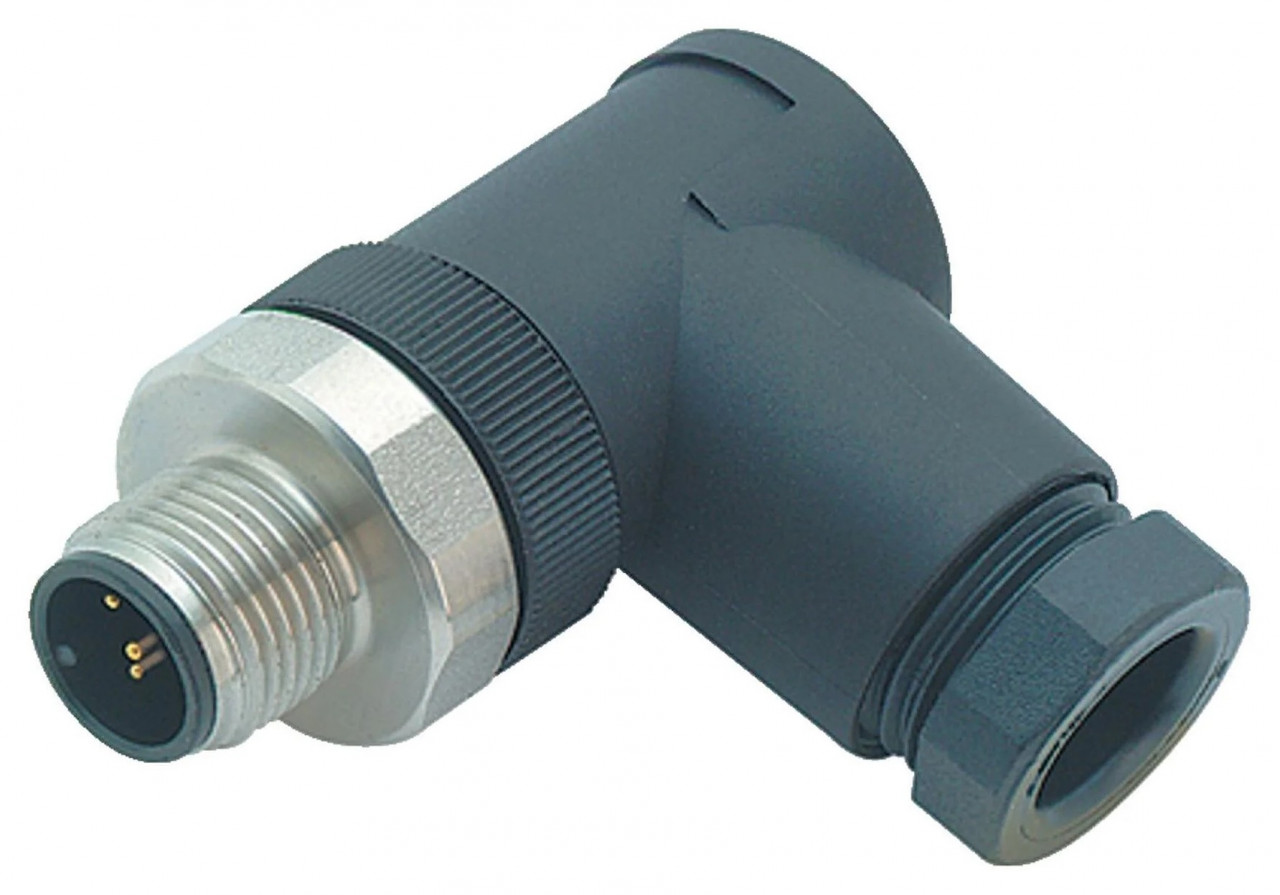

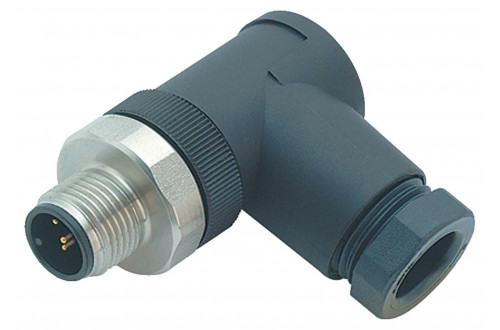

BINDER - M12-A, angled, screw clamp, stainless

Click to zoom

For illustration purpose only

Brand : BINDER
Code numberSupplier Type Ingress Protection Rated voltage Max. current (A) Locking type Gender Min mating cycles Number of poles Cable outlet Minimum temperature (°C) Maximum temperature (°C) External diameter (mm) Shielded Length (mm)StockPrice ( ExVAT )
436 03364 99 0429 92 04 M12-A IP67 250 4,0 Screw Male 50 4 4,0 - 6,0 -40 85 20 Delete 41
436 03345 99 0429 292 04 M12-A IP67 250 4,0 Screw Male 50 4 6,0 - 8,0 -40 85 20 Delete 41
436 03468 99 0437 92 05 M12-A IP67 60 4,0 Screw Male 50 5 4,0 - 6,0 -40 85 20 Delete 41
436 03457 99 0437 292 05 M12-A IP67 60 4,0 Screw Male 50 5 6,0 - 8,0 -40 85 20 Delete 41
