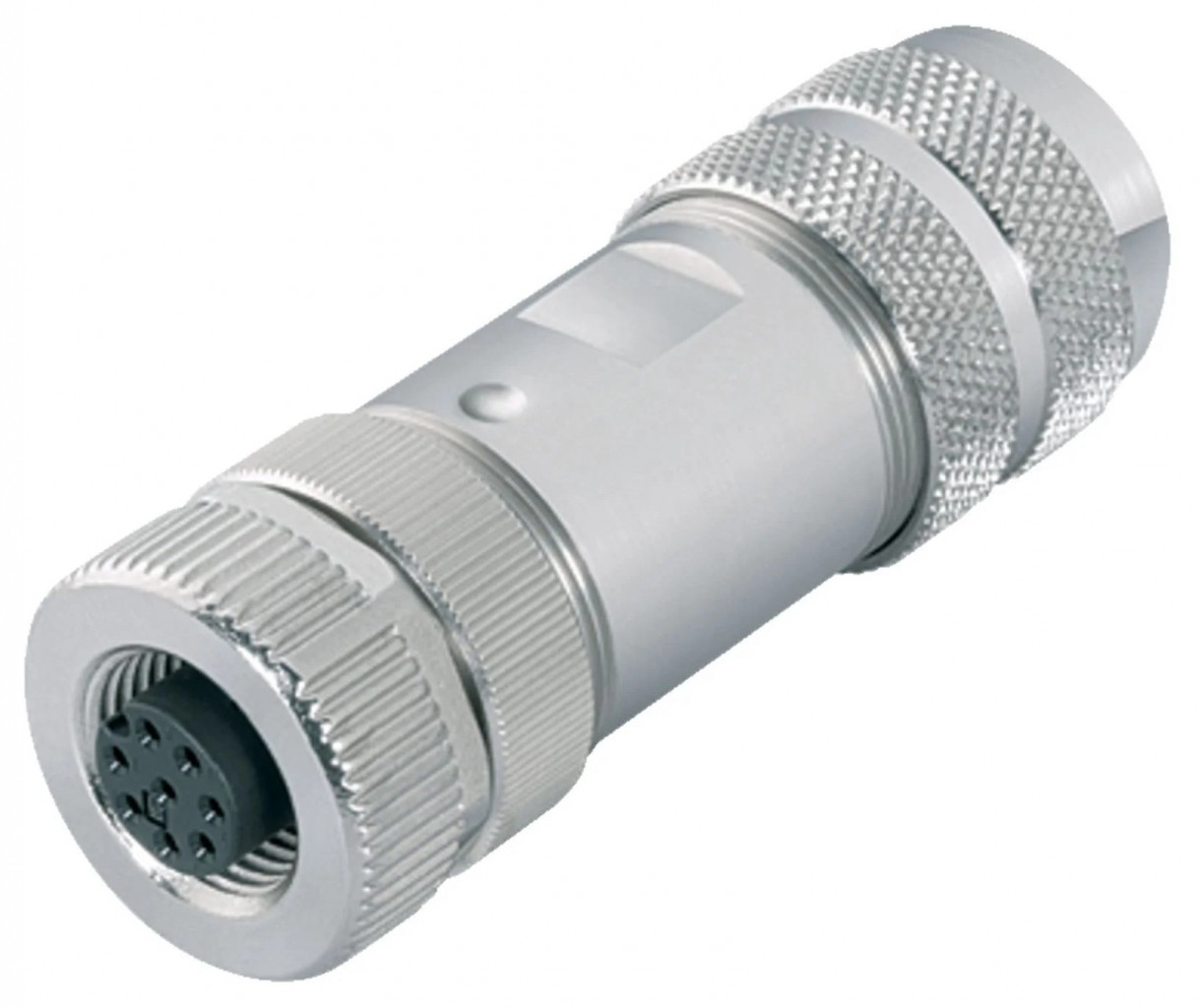

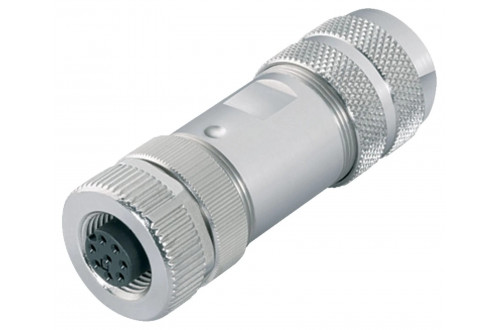

BINDER - M12-A, screw clamp/solder, shielding ring, shieldable

Click to zoom

For illustration purpose only

Brand :	BINDER

Female cable connector, screw clamp connection, with shielding ring, shieldable, solder termination on 12 pol, cable outlet 8-10 mm.

Code number	Supplier	Type	Ingress Protection	Rated voltage	Max. current (A)	Locking type	Gender	Min mating cycles	Number of poles	Cable outlet	Minimum temperature (°C)	Maximum temperature (°C)	External diameter (mm)	Shielded	Length (mm)	Stock
436 03851	99 1436 914 05	M12-A	IP67	60	4,0	Screw	Female	100	5	8,0 - 10,0	-40	85	20	o	57	Login required
436 03883	99 1486 914 08	M12-A	IP67	30	2,0	Screw	Female	100	8	8,0 - 10,0	-40	85	20	o	57	Login required
436 03902	99 1492 914 12	M12-A	IP67	30	1,5	Screw	Female	100	12	8,0 - 10,0	-40	85	20	o	57	Login required
