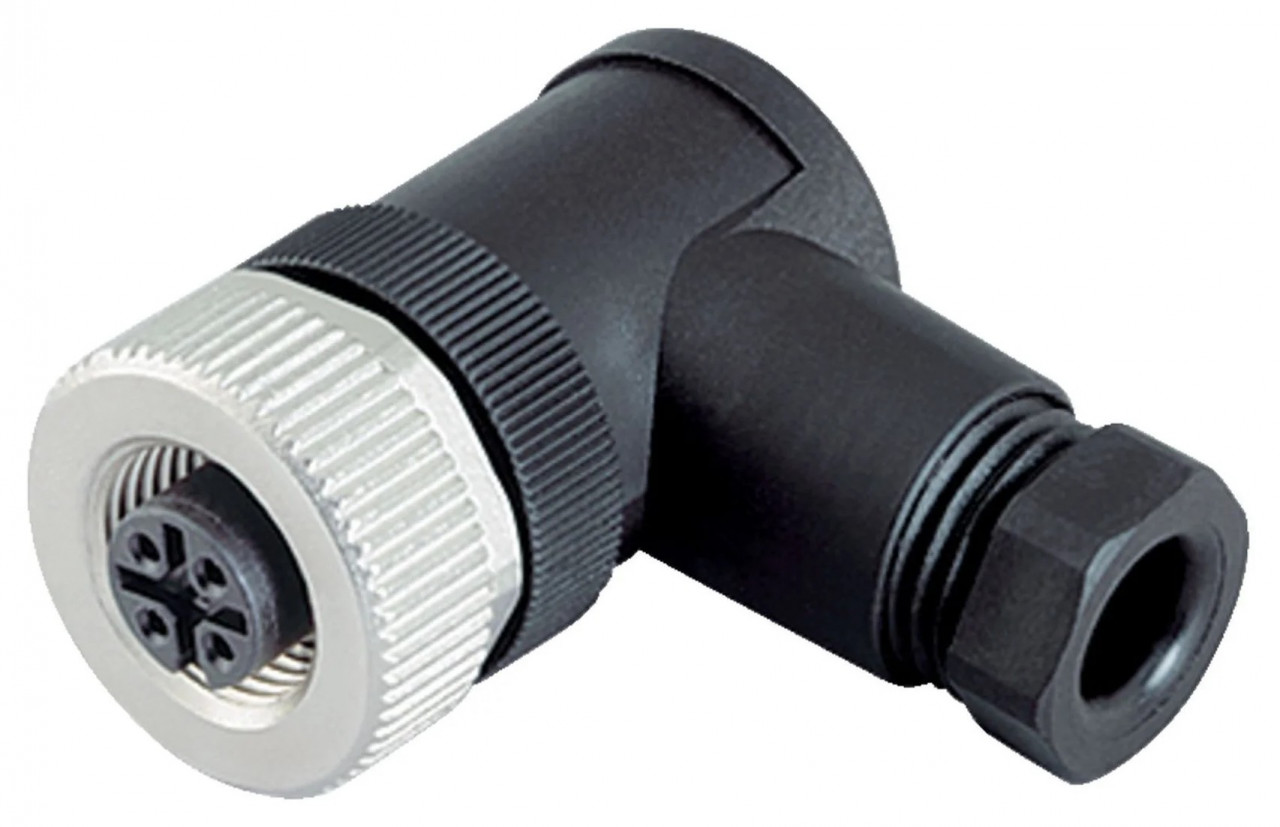

BINDER - M12-A, angled, wire clamp

M12-A, angled, wire clamp
M12-A, angled, crimp
BINDER - M12-A, angled, wire clamp

Click to zoom

For illustration purpose only

Brand : BINDER
Code numberSupplier Type Ingress Protection Rated voltage Max. current (A) Locking type Gender Min mating cycles Number of poles Cable outlet Minimum temperature (°C) Maximum temperature (°C) External diameter (mm) Shielded Length (mm)StockPrice ( ExVAT )
436 03516 99 0524 24 04 M12-A IP67 250 4,0 Screw Female 100 4 4,0 - 6,0 -40 85 20,2 Delete 38
436 03517 99 0524 52 04 M12-A IP67 250 4,0 Screw Female 100 4 6,0 - 8,0 -40 85 20,2 Delete 38
436 03537 99 0536 24 05 M12-A IP67 60 4,0 Screw Female 100 5 4,0 - 6,0 -40 85 20,2 Delete 38
436 03538 99 0536 52 05 M12-A IP67 60 4,0 Screw Female 100 5 6,0 - 8,0 -40 85 20,2 Delete 38
