BINDER - M12-A, angled, metal locking, screw clamp/solder

M12-A, angled, plastic locking, screw clamp
M12-A, angled, screw clamp, stainless

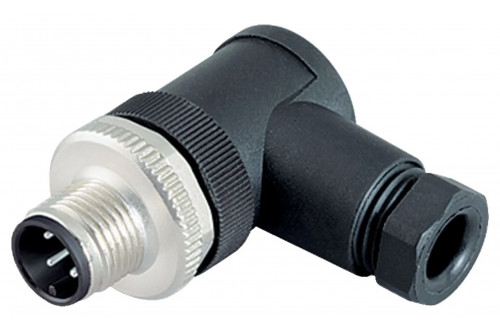

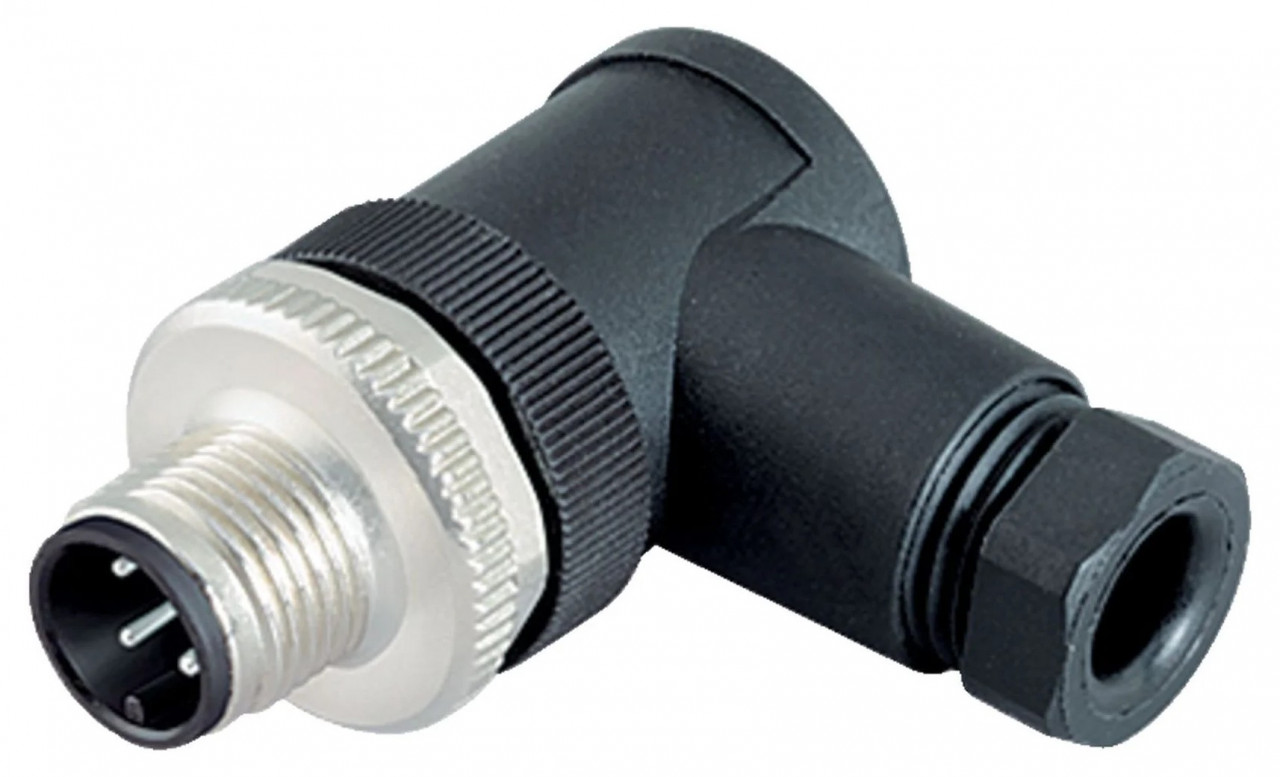

BINDER - M12-A, angled, metal locking, screw clamp/solder

Click to zoom

For illustration purpose only

Brand : BINDER
Code numberSupplier Type Ingress Protection Rated voltage Max. current (A) Locking type Gender Min mating cycles Number of poles Cable outlet Minimum temperature (°C) Maximum temperature (°C) External diameter (mm) Shielded Length (mm)StockPrice ( ExVAT )
436 03341 99 0429 27 04 M12-A IP67 250 4,0 Screw Male 50 3 4,0 - 6,0 -40 85 20,2 Delete 41/44
436 03334 99 0429 161 04 M12-A IP67 250 4,0 Screw Male 50 3 6,0 - 8,0 -40 85 20,2 Delete 41/44
436 03348 99 0429 324 04 M12-A IP67 250 4,0 Screw Male 50 4 2,5 - 3,5 -40 85 20,2 Delete 41/44
436 03340 99 0429 24 04 M12-A IP67 250 4,0 Screw Male 50 4 4,0 - 6,0 -40 85 20,2 Delete 41/44
436 03354 99 0429 52 04 M12-A IP67 250 4,0 Screw Male 50 4 6,0 - 8,0 -40 85 20,2 Delete 41/44
436 03453 99 0437 24 05 M12-A IP67 60 4,0 Screw Male 50 5 4,0 - 6,0 -40 85 20,2 Delete 41/44
436 03461 99 0437 52 05 M12-A IP67 60 4,0 Screw Male 50 5 6,0 - 8,0 -40 85 20,2 Delete 41/44
436 03500 99 0487 52 08 M12-A IP67 30 2,0 Screw Male 50 8 6,0 - 8,0 -40 85 20,2 Delete 41/44
436 03504 99 0491 52 12 M12-A IP67 30 1,5 Screw Male 50 12 6,0 - 8,0 -40 85 20,2 Delete 41/44
