BINDER - M12-A, metal locking, screw clamp/solder

M12-A, plastic locking, screw clamp
M12-A, screw clamp, stainless

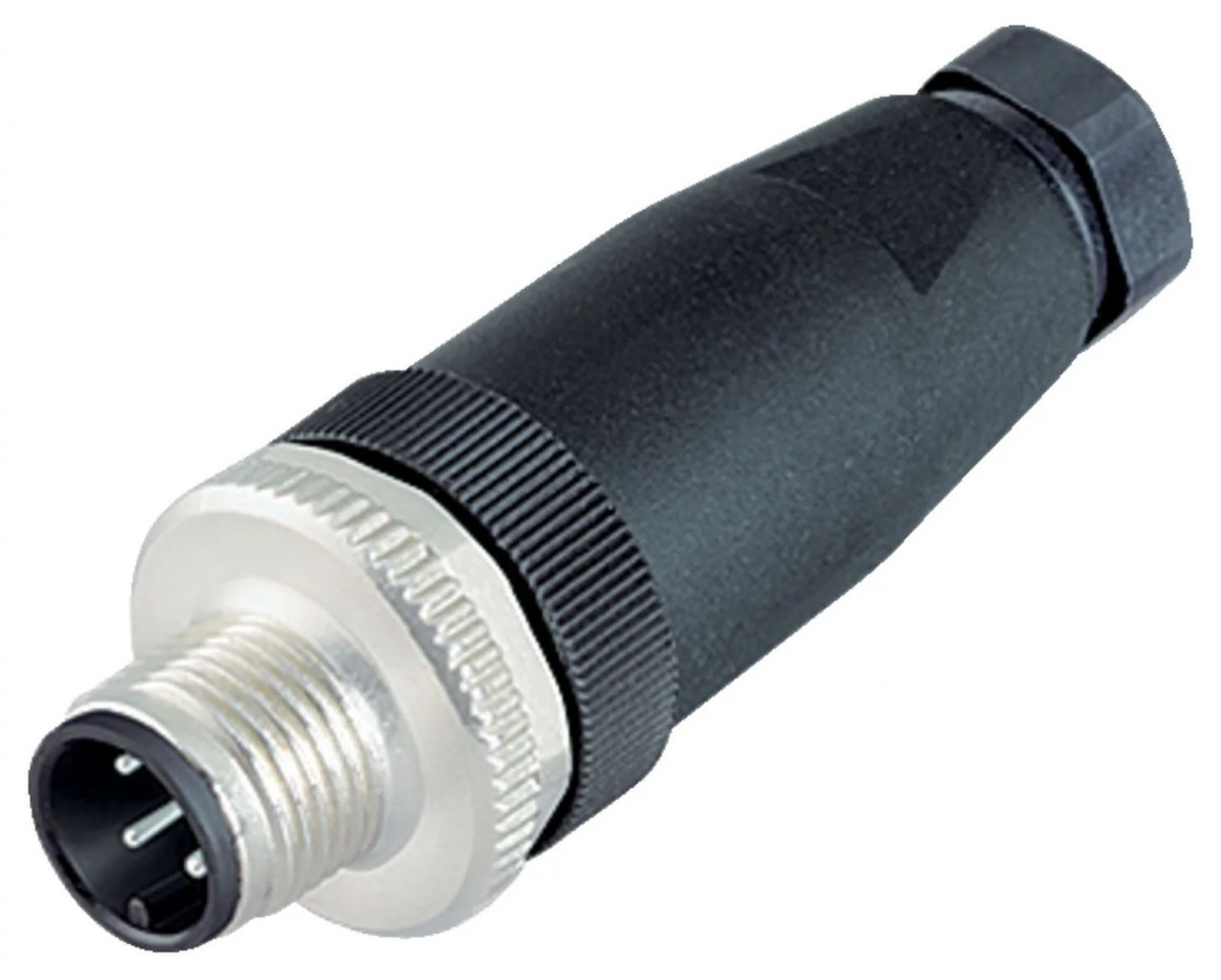

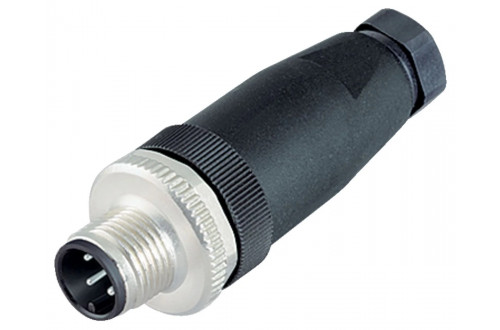

BINDER - M12-A, metal locking, screw clamp/solder

Click to zoom

For illustration purpose only

Brand : BINDER
Code numberSupplier Type Ingress Protection Rated voltage Max. current (A) Locking type Gender Min mating cycles Number of poles Cable outlet Minimum temperature (°C) Maximum temperature (°C) External diameter (mm) Shielded Length (mm)StockPrice ( ExVAT )
436 03322 99 0429 07 04 M12-A IP67 250 4,0 Screw Male 50 3 4,0 - 6,0 -40 85 20,2 Delete 60
436 03333 99 0429 158 04 M12-A IP67 250 4,0 Screw Male 50 3 6,0 - 8,0 -40 85 20,2 Delete 60
436 03346 99 0429 314 04 M12-A IP67 250 4,0 Screw Male 50 4 2,5 - 3,5 -40 85 20,2 Delete 60
436 03328 99 0429 14 04 M12-A IP67 250 4,0 Screw Male 50 4 4,0 - 6,0 -40 85 20,2 Delete 60
436 03326 99 0429 12 04 M12-A IP67 250 4,0 Screw Male 50 4 6,0 - 8,0 -40 85 20,2 Delete 60
436 03445 99 0437 14 05 M12-A IP67 60 4,0 Screw Male 50 5 4,0 - 6,0 -40 85 20,2 Delete 60
436 03443 99 0437 12 05 M12-A IP67 60 4,0 Screw Male 50 5 6,0 - 8,0 -40 85 20,2 Delete 60
436 03494 99 0487 12 08 M12-A IP67 30 2,0 Screw Male 100 8 6,0 - 8,0 -40 85 20,2 Delete 60
436 03499 99 0487 29 08 M12-A IP67 30 2,0 Screw Male 100 8 8,0 - 10,0 -40 85 20,2 Delete 60
436 03503 99 0491 12 12 M12-A IP67 30 2,0 Screw Male 100 12 6,0 - 8,0 -40 85 20,2 Delete 60
