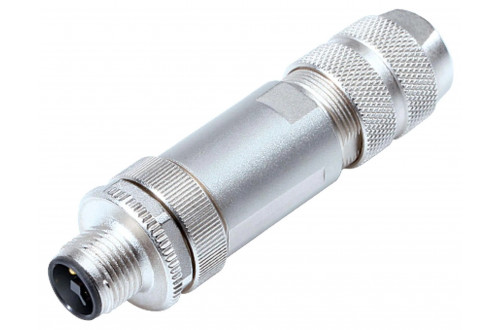

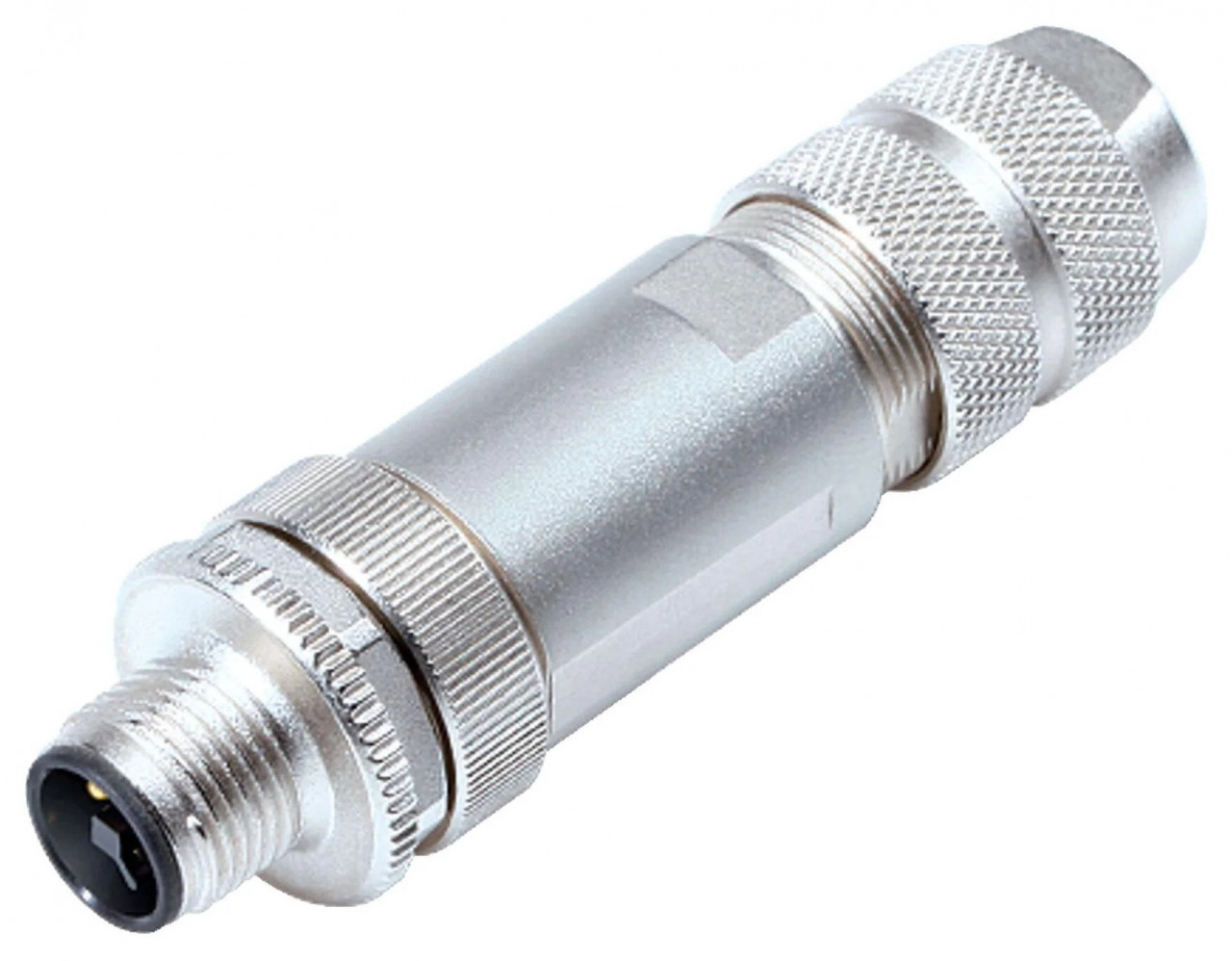

BINDER - M12-T, screw clamp, iris spring, shieldable, for power supply

Click to zoom

For illustration purpose only

Brand :	BINDER

Cable connector with T-coding, for power supply, Power, screw clamp connection, iris type spring, shieldable

Code number	Supplier	Type	Ingress Protection	Rated voltage	Max. current (A)	Locking type	Gender	Min mating cycles	Number of poles	Cable outlet	Minimum temperature (°C)	Maximum temperature (°C)	External diameter (mm)	Shielded	Length (mm)	Stock	Price ( ExVAT )
436 03937	99 1631 814 04	M12-T	IP67	63	12,0	Screw	Male	100	4	5,0 - 8,0	-40	85	20	o	70	Login required
436 03936	99 1631 812 04	M12-T	IP67	63	12,0	Screw	Male	100	4	8,0 - 9,0	-40	85	20	o	70	Login required
