| Brand : | BINDER |
|---|---|
| Code number : | 436 03609 |
| Supplier : | 99 0629 58 04 |
| Type : | M12-T |
| Ingress Protection : | IP67 |
| Rated voltage : | 63 |
| Max. current (A) : | 12,0 |
| Locking type : | Screw |
| Gender : | Male |
| Min mating cycles : | 100 |
| Number of poles : | 4 |
| Cable outlet : | 8,0 - 10,0 |
| Minimum temperature (°C) : | -40 |
| Maximum temperature (°C) : | 85 |
| External diameter (mm) : | 20,2 |
| Shielded : |  |
| Length (mm) : | 44 |

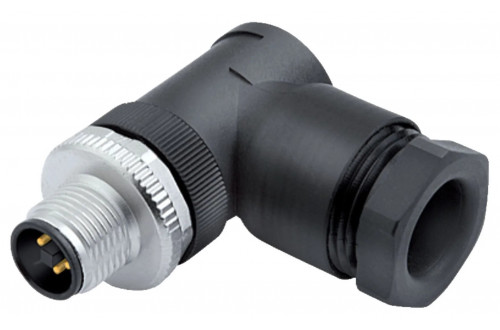

Angled connector with T-coding, Power

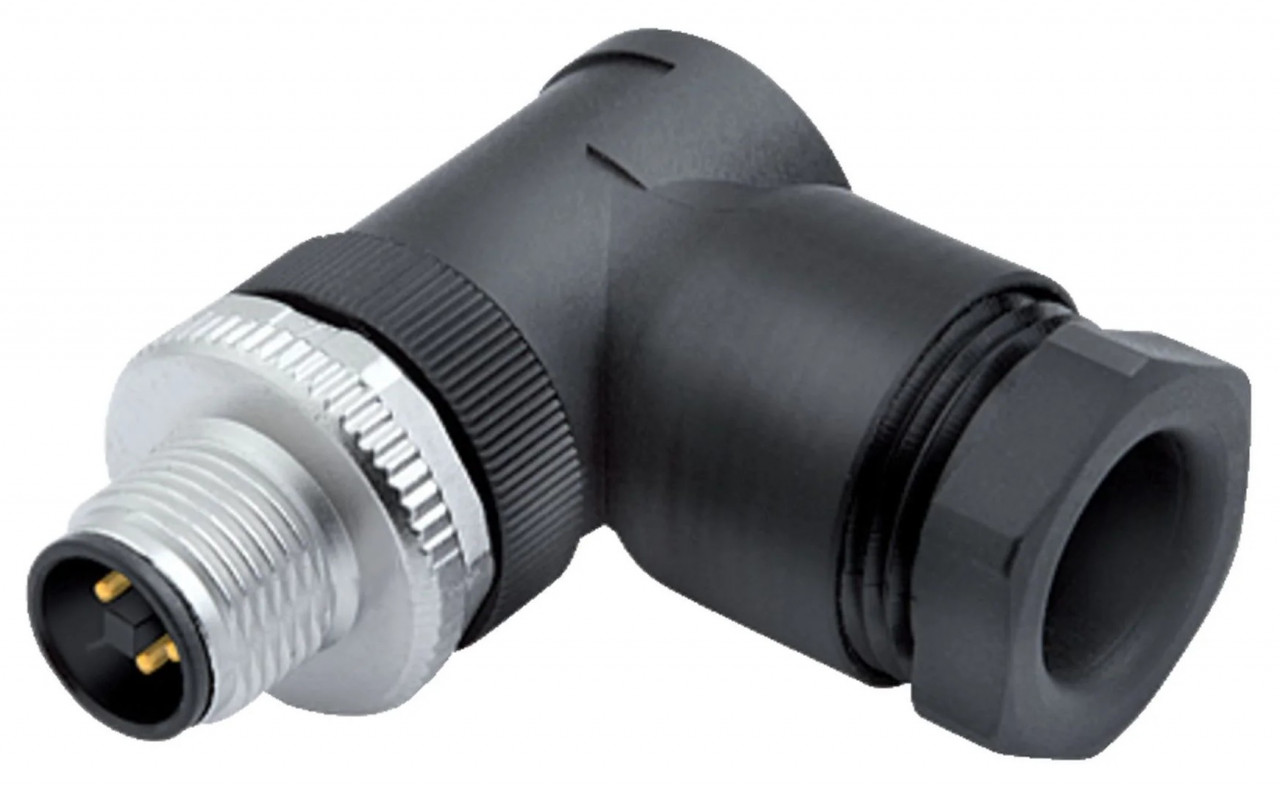

Angled connector with T-coding, Power
