BINDER - M12-A, screw clamp, stainless

M12-A, metal locking, screw clamp/solder
M12-A, screw clamp, outdoor

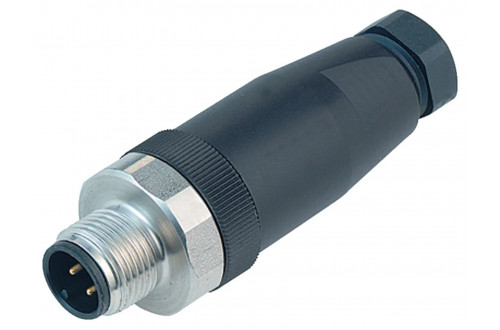

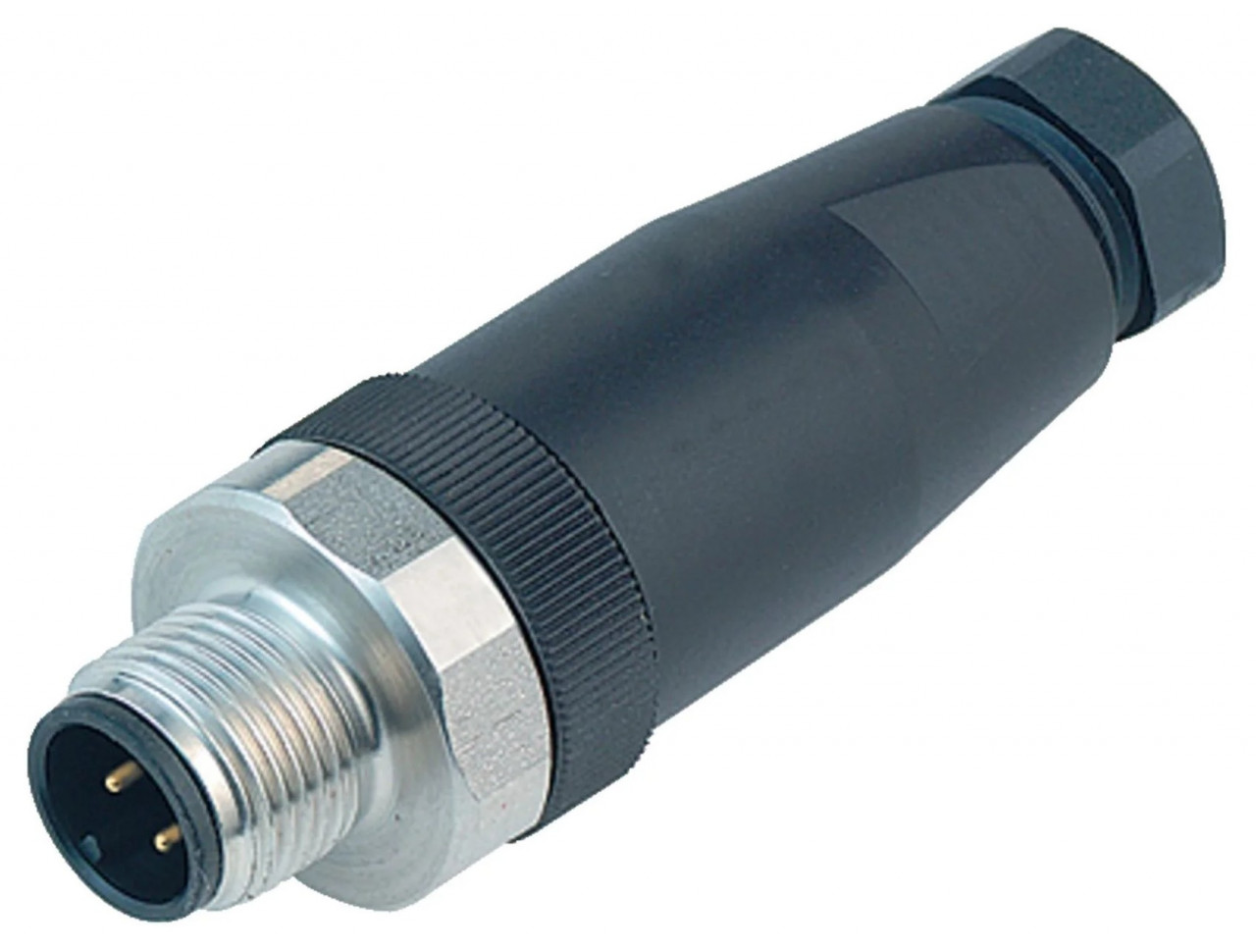

BINDER - M12-A, screw clamp, stainless

Click to zoom

For illustration purpose only

Brand : BINDER
Code numberSupplier Type Ingress Protection Rated voltage Max. current (A) Locking type Gender Min mating cycles Number of poles Cable outlet Minimum temperature (°C) Maximum temperature (°C) External diameter (mm) Shielded Length (mm)StockPrice ( ExVAT )
436 03363 99 0429 82 04 M12-A IP67 250 4,0 Screw Male 100 4 4,0 - 6,0 -40 85 20 Delete 60
436 03342 99 0429 282 04 M12-A IP67 250 4,0 Screw Male 100 4 6,0 - 8,0 -40 85 20 Delete 60
436 03467 99 0437 82 05 M12-A IP67 60 4,0 Screw Male 100 5 4,0 - 6,0 -40 85 20 Delete 60
436 03454 99 0437 282 05 M12-A IP67 60 4,0 Screw Male 100 5 6,0 - 8,0 -40 85 20 Delete 60
436 03497 99 0487 282 08 M12-A IP67 30 2,0 Screw Male 100 8 6,0 - 8,0 -40 85 20 Delete 60
