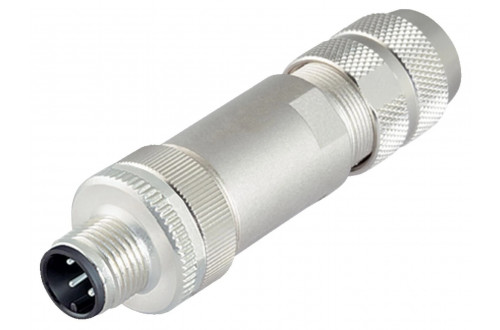

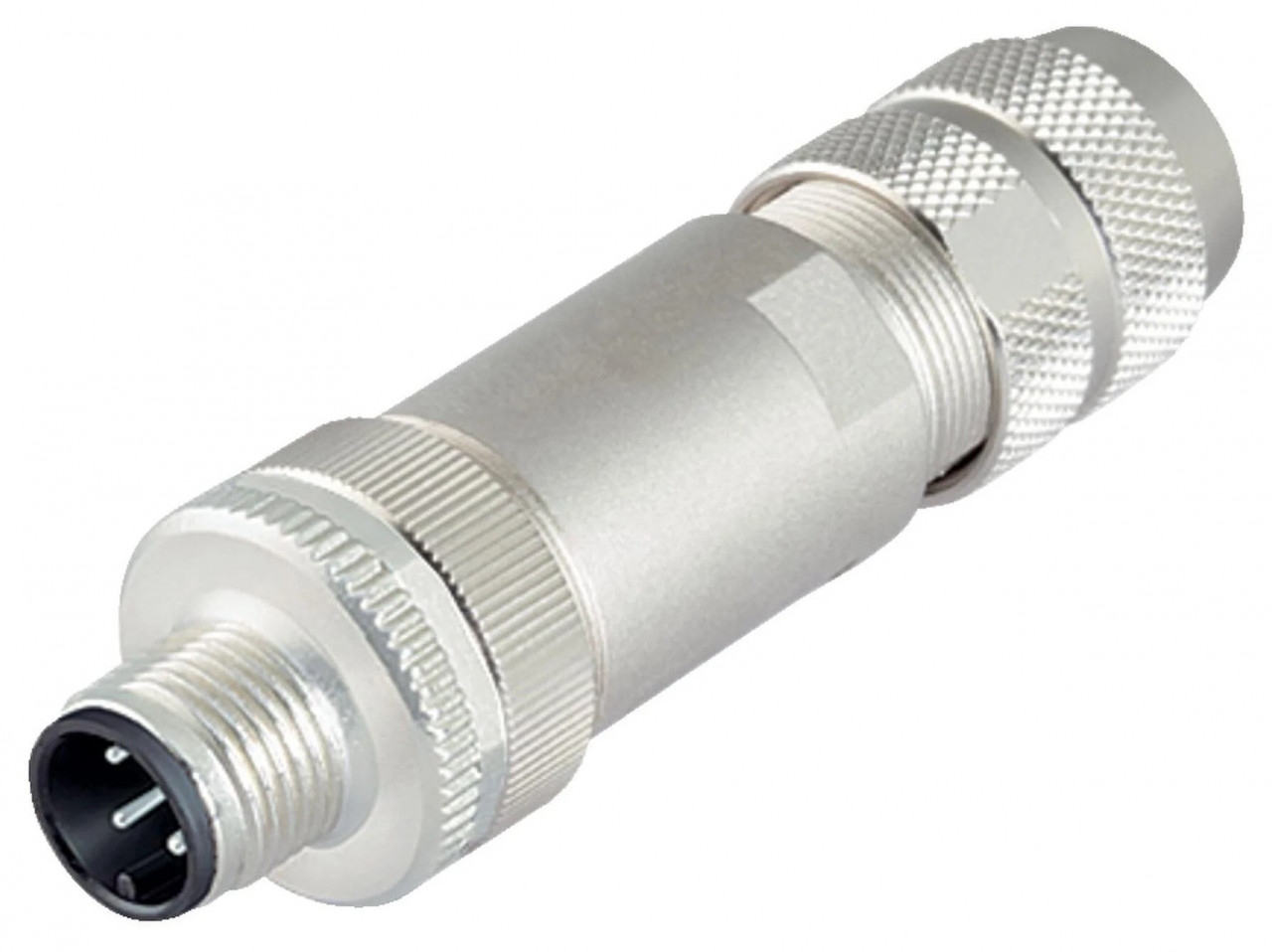

BINDER - M12-A, screw clamp ,iris spring, shieldable

M12-A, wire clamp, shielding ring, shieldable
M12-A, screw clamp ,iris spring, shieldable
BINDER - M12-A, screw clamp ,iris spring, shieldable

Click to zoom

For illustration purpose only

Brand : BINDER
Code numberSupplier Type Ingress Protection Rated voltage Max. current (A) Locking type Gender Min mating cycles Number of poles Cable outlet Minimum temperature (°C) Maximum temperature (°C) External diameter (mm) Shielded Length (mm)StockPrice ( ExVAT )
436 03832 99 1431 814 04 M12-A IP67 250 4,0 Screw Male 100 4 5,0 - 8,0 -40 85 20 o 70
436 03876 99 1439 814 05 M12-A IP67 60 4,0 Screw Male 100 5 5,0 - 8,0 -40 85 20 o 70
436 03894 99 1489 814 08 M12-A IP67 30 2,0 Screw Male 100 8 5,0 - 8,0 -40 85 20 o 70
436 03893 99 1489 812 08 M12-A IP67 30 2,0 Screw Male 100 8 8,0 - 9,0 -40 85 20 o 70
