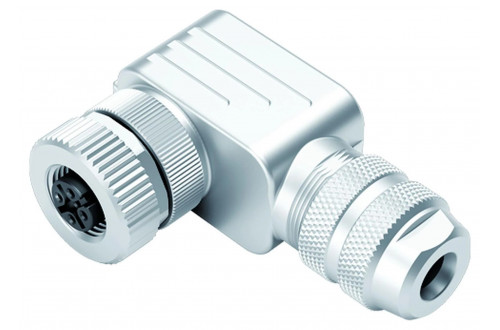

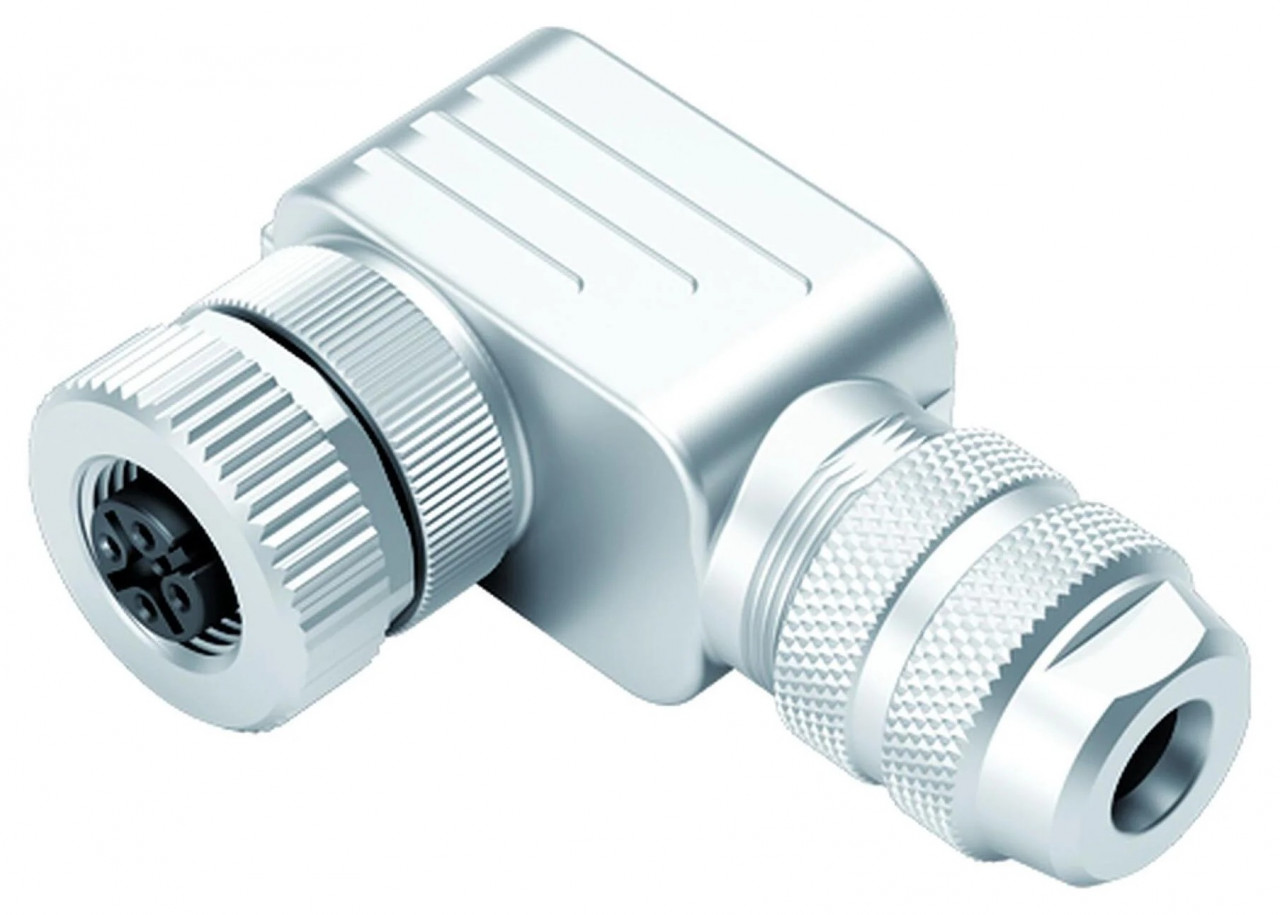

BINDER - M12-A, angled, screw clamp/solder, shielding ring, shieldable

M12-A, angled, crimp
M12-A, angled, crimp, shieldable
BINDER - M12-A, angled, screw clamp/solder, shielding ring, shieldable

Click to zoom

For illustration purpose only

Brand : BINDER
Code numberSupplier Type Ingress Protection Rated voltage Max. current (A) Locking type Gender Min mating cycles Number of poles Cable outlet Minimum temperature (°C) Maximum temperature (°C) External diameter (mm) Shielded Length (mm)StockPrice ( ExVAT )
436 03827 99 1430 824 04 M12-A IP67 250 4,0 Screw Female 100 4 4,0 - 6,0 -40 85 20,2 o 37
436 03826 99 1430 822 04 M12-A IP67 250 4,0 Screw Female 100 4 6,0 - 8,0 -40 85 20,2 o 37
436 03849 99 1436 824 05 M12-A IP67 60 4,0 Screw Female 100 5 4,0 - 6,0 -40 85 20,2 o 37
436 03848 99 1436 822 05 M12-A IP67 60 4,0 Screw Female 100 5 6,0 - 8,0 -40 85 20,2 o 37
436 03882 99 1486 822 08 M12-A IP67 30 2,0 Screw Female 100 8 6,0 - 8,0 -40 85 20,2 o 37
436 03901 99 1492 822 12 M12-A IP67 30 1,5 Screw Female 100 12 6,0 - 8,0 -40 85 20,2 o 37
