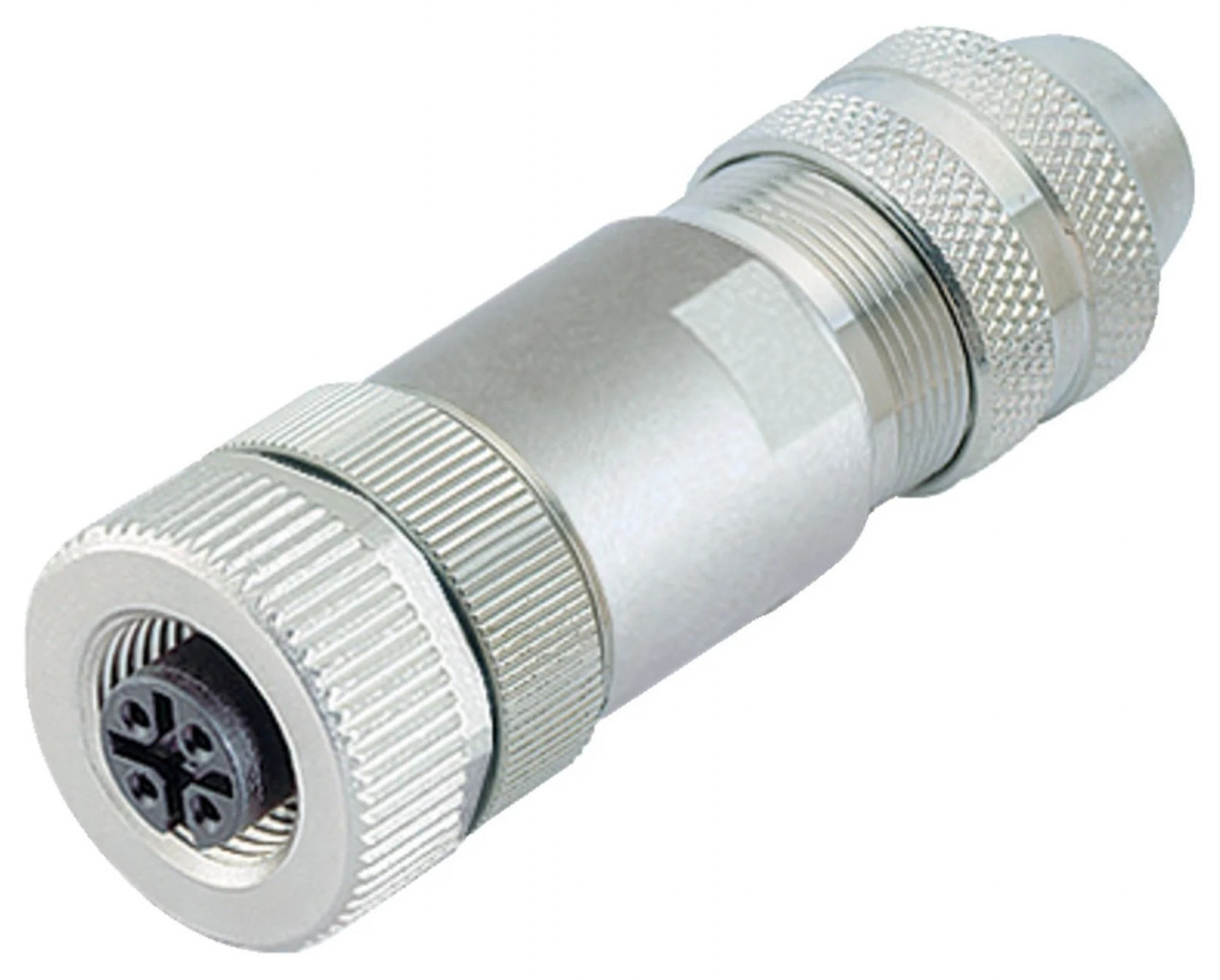

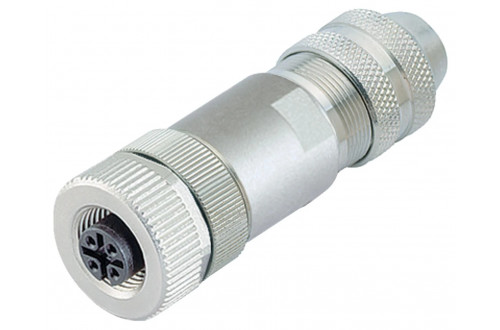

BINDER - M12-A, wire clamp, shielding ring, shieldable

M12-A, wire clamp, iris spring, shieldable
BINDER - M12-A, wire clamp, shielding ring, shieldable

Click to zoom

For illustration purpose only

Brand : BINDER
Code numberSupplier Type Ingress Protection Rated voltage Max. current (A) Locking type Gender Min mating cycles Number of poles Cable outlet Minimum temperature (°C) Maximum temperature (°C) External diameter (mm) Shielded Length (mm)StockPrice ( ExVAT )
436 03909 99 1526 814 04 M12-A IP67 250 4,0 Screw Female 100 4 4,0 - 6,0 -40 85 20 o 57
436 03908 99 1526 812 04 M12-A IP67 250 4,0 Screw Female 100 4 6,0 - 8,0 -40 85 20 o 57
436 03931 99 1538 814 05 M12-A IP67 60 4,0 Screw Female 100 5 4,0 - 6,0 -40 85 20 o 57
436 03930 99 1538 812 05 M12-A IP67 60 4,0 Screw Female 100 5 6,0 - 8,0 -40 85 20 o 57
