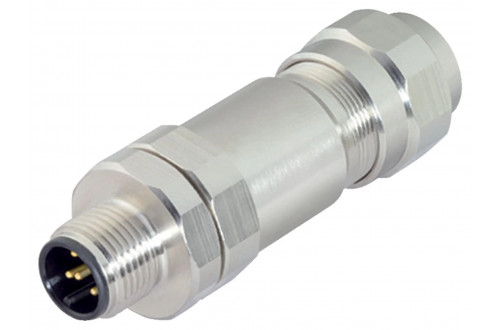

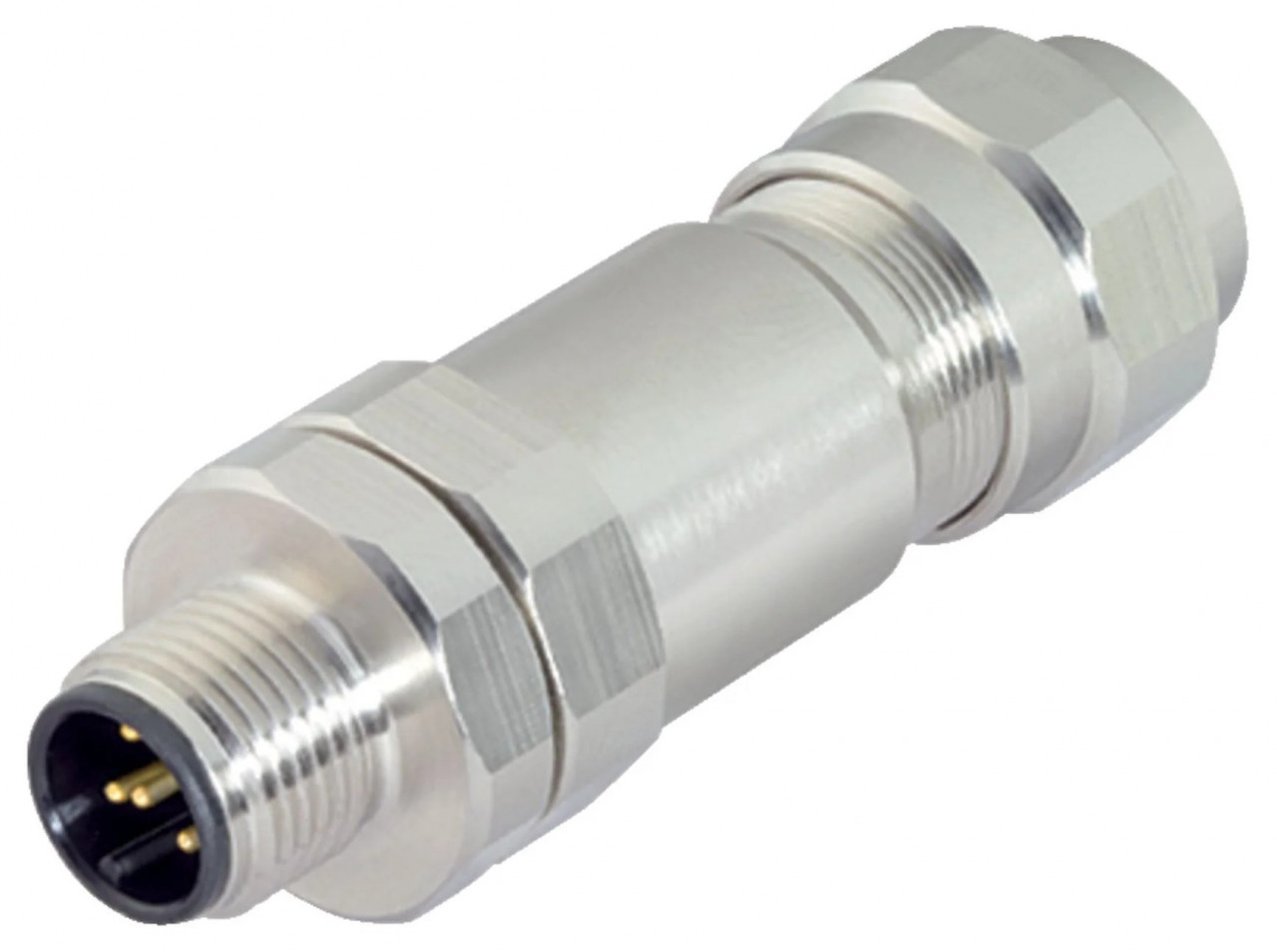

BINDER - M12-A, screw clamp, shielding ring, shieldable, stainless

M12-A, screw clamp/solder, shielding ring, shieldable
M12-A, screw clamp, shielding ring, shieldable, stainless
BINDER - M12-A, screw clamp, shielding ring, shieldable, stainless

Click to zoom

For illustration purpose only

Brand : BINDER
Code numberSupplier Type Ingress Protection Rated voltage Max. current (A) Locking type Gender Min mating cycles Number of poles Cable outlet Minimum temperature (°C) Maximum temperature (°C) External diameter (mm) Shielded Length (mm)StockPrice ( ExVAT )
436 03819 99 1429 991 04 M12-A IP67 250 4,0 Screw Male 100 4 3,0 - 5,5 -40 85 20 o 62
436 03820 99 1429 992 04 M12-A IP67 250 4,0 Screw Male 100 4 5,5 - 8,6 -40 85 20 o 62
436 03867 99 1437 991 05 M12-A IP67 60 4,0 Screw Male 100 5 3,0 - 5,5 -40 85 20 o 62
436 03868 99 1437 992 05 M12-A IP67 60 4,0 Screw Male 100 5 5,5 - 8,6 -40 85 20 o 62
436 03889 99 1487 992 08 M12-A IP67 30 2,0 Screw Male 100 8 5,5 - 8,6 -40 85 20 o 62
