BINDER - M12-A, angled, screw clamp/solder, shielding ring, shieldable

M12-A, angled, crimp, shieldable
M12-A, angled, wire clamp, shielding ring, shieldable

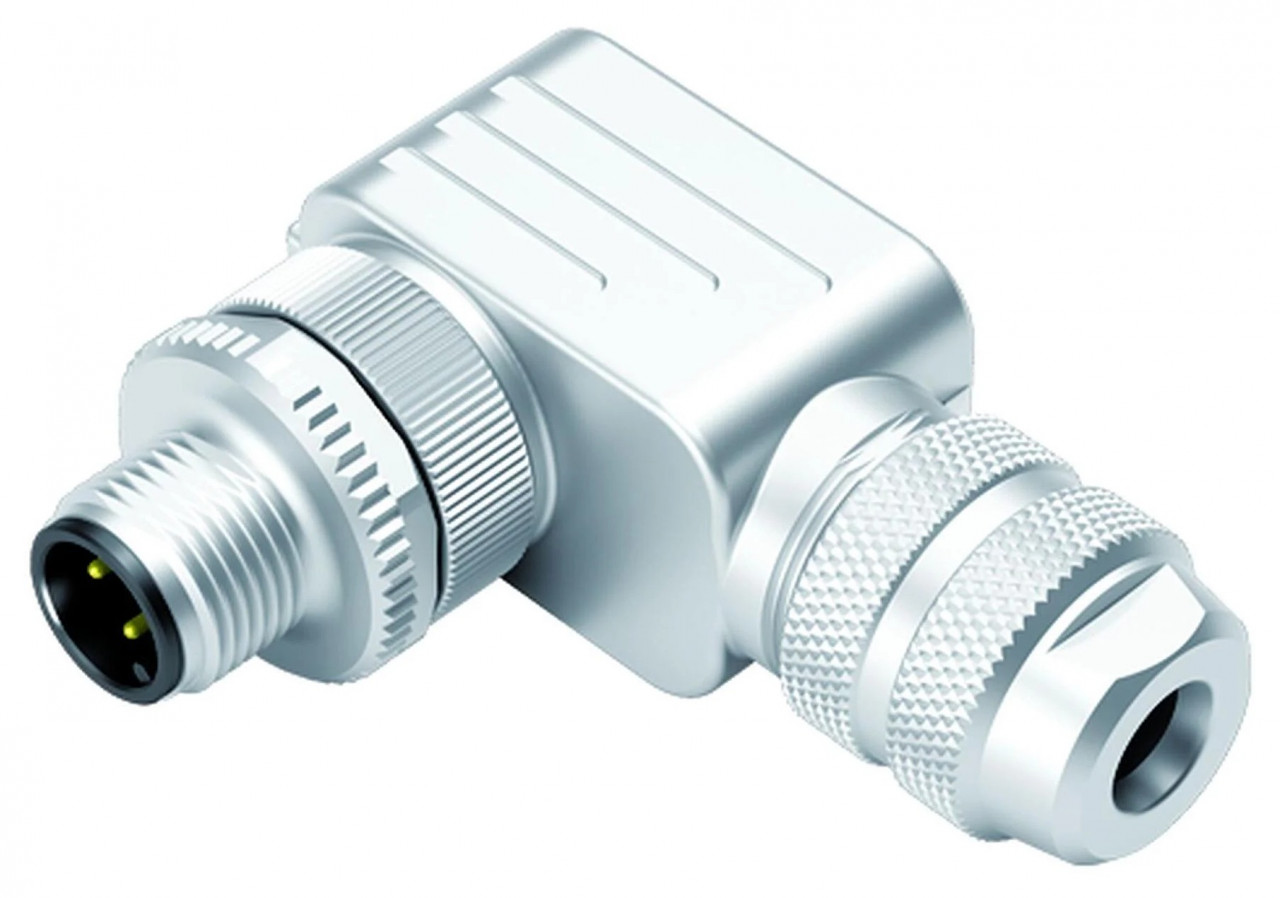

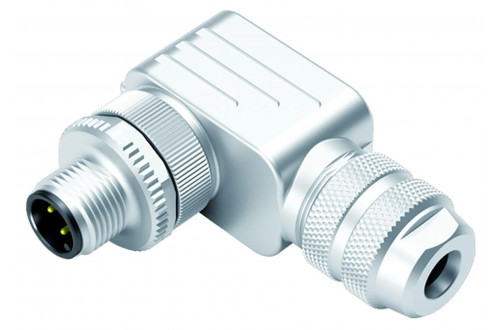

BINDER - M12-A, angled, screw clamp/solder, shielding ring, shieldable

Click to zoom

For illustration purpose only

Brand : BINDER
Code numberSupplier Type Ingress Protection Rated voltage Max. current (A) Locking type Gender Min mating cycles Number of poles Cable outlet Minimum temperature (°C) Maximum temperature (°C) External diameter (mm) Shielded Length (mm)StockPrice ( ExVAT )
436 03818 99 1429 824 04 M12-A IP67 250 4,0 Screw Male 100 4 4,0 - 6,0 -40 85 20,2 o 42
436 03817 99 1429 822 04 M12-A IP67 250 4,0 Screw Male 100 4 6,0 - 8,0 -40 85 20,2 o 42
436 03862 99 1437 824 05 M12-A IP67 60 4,0 Screw Male 100 5 4,0 - 6,0 -40 85 20,2 o 42
436 03861 99 1437 822 05 M12-A IP67 60 4,0 Screw Male 100 5 6,0 - 8,0 -40 85 20,2 o 42
436 03887 99 1487 822 08 M12-A IP67 30 2,0 Screw Male 100 8 6,0 - 8,0 -40 85 20,2 o 42
436 03898 99 1491 822 12 M12-A IP67 30 1,5 Screw Male 100 12 6,0 - 8,0 -40 85 20,2 o 42
