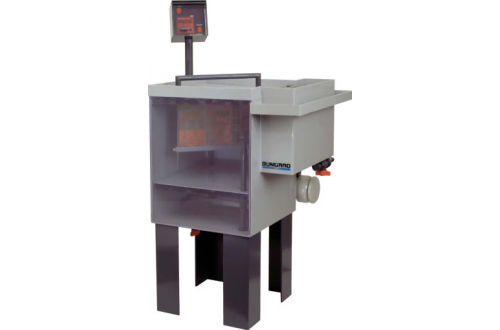

BUNGARD - Etching machine SPLASH

BUNGARD - Etching machine SPLASH

Click to zoom

For illustration purpose only

Brand : BUNGARD

User manual

A professional spray etcher for high quality double sided PCBs. Can also be used for spray developing of dry film resist.
Features:

  • Professional spray etching technology
  • 100 µm line definition
  • Etching speed with standard Fe-III-Cl: 35 µm Cu in 90s
  • Max. board size 210 x 300 mm (Splash XL 300 x 400mm)
  • Magnetic driven spray pump
  • Built-in 1000 W heater
  • Thermostat controlled
  • Overheat protection
  • Security lid switch
  • Digital timer with count-down, auto-reset and beeper
  • Special shadow-free PCB holder (titanium)
  • Drop-off position for holder (see picture)
  • Built-in pre rinse compartment with integral drop-off zone
  • Also suitable for spray developing


Technical Data:

  • Power supply: 230 V~, 50 Hz approx. 1150 VA
Code numberSupplier Model Dimensions StockPrice ( ExVAT )
580 20300 90650 SPLASH 60 x 66 x 120 cm
580 20400 SPLASH CENTER SPLASH CENTER 100 x 67 x 121 cm
