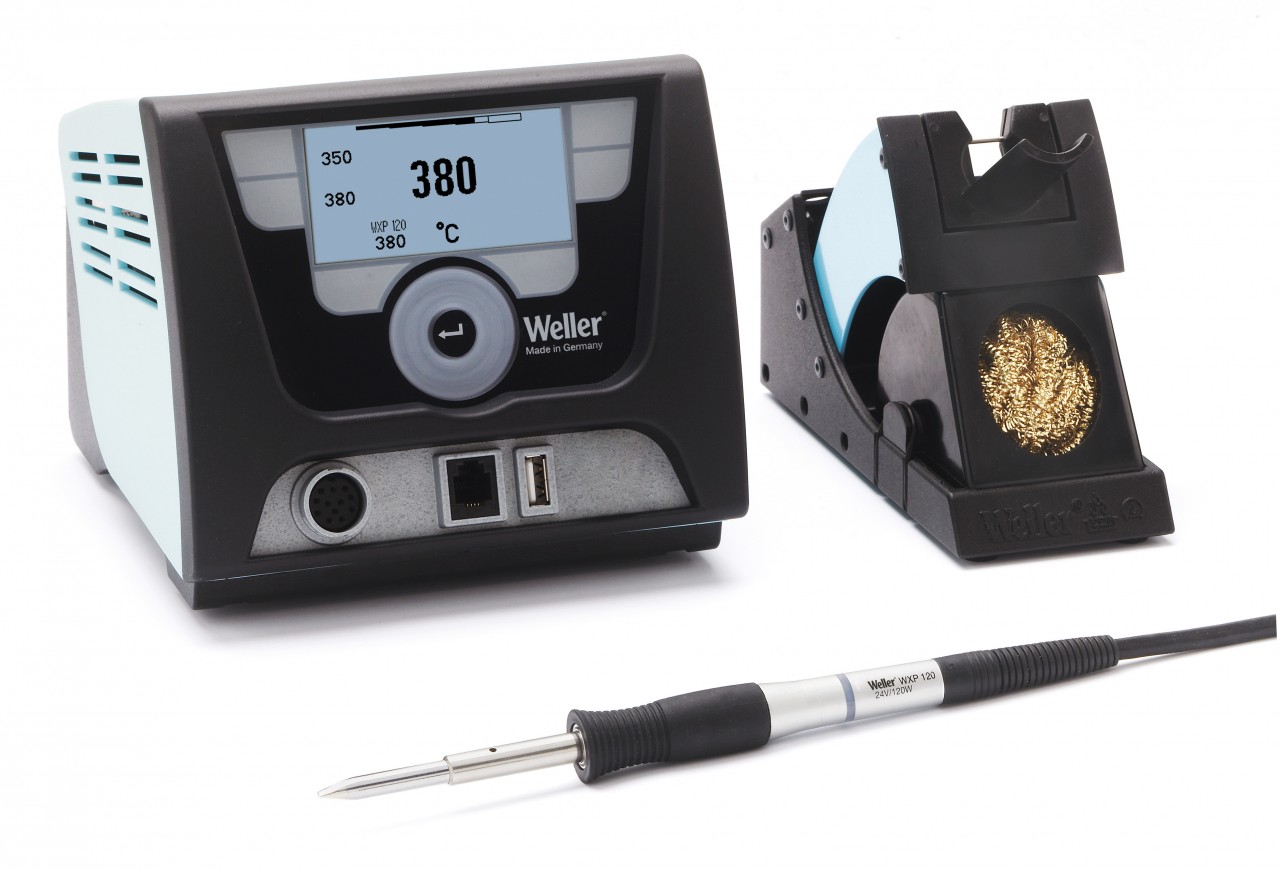

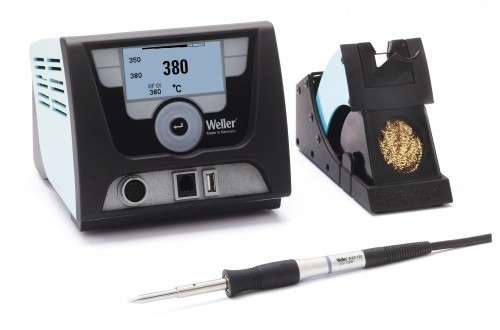

WELLER - Soldering Station WX 1010 with iron WXP120

Click to zoom

For illustration purpose only

ESD_safe
Brand :	WELLER
Code number :	810 34183
Supplier :	T0053418399N
Model :	WX 1010
Minimum temperature (°C) :	100
Maximum temperature (°C) :	450
Weight (kg) :	3,2
tag :	WX

Soldering station, digital, 200W, 230V with soldering iron WXP120 (120W).

Kit consists of:

WX 1 control unit (200W/230V)
WXP 120 soldering iron, 120W / 24V, XTB 1 tip
WDH 10 safety rest

WX 1 CONTROL UNIT 230V UK F/G :

Digital Power Unit, 200W / 230V.
Digital temperature control 50 ° C - 550 ° C (depending on the tool).

Very high capacity and fast heating time.
- Using a tool to 200W.
Robust capacitive touch screen.
Intuitive, twist and click to enter key and guide fingers.
Multilingual menu.
Automatic recognition tools.
USB port for firmware updates, configuration settings and journalistic systems.
Intelligent tools, A / D converter and memory tools in the handle.
Auto power thanks to sensors in the handle tools.
No calibration required.
Antistatic
Different possibilities of equipotential bonding on the device.

Technical Details:

Dimensions (L x W x H): 170 x 151 x 130mm
Weight: 3.2 Kg
Safety class: I, static frame.
Fuse: T 2A
Temperature accuracy: + - 9 ° C
Temperature Stability: + - 2 ° C
Earthing: 3.5 mm jack.

WXP 120 SOLDERING IRON 120W :

Voltage: 24 V, Heating output: 120 W
Heat-up time (ca) in seconds (50-350°C / 120-660°F): 14 sec
Tip family: XT, XT Soldering head
WX compatible
Temperature range (depends on tool) °C: 93 - 454
Temperature range (depends on tool) °F: 200 - 850

For soldering small and large components with high heat demands

WDH 10 SUPPORT :

Safety rest for WSP80, WP80, WP120.

Stock and price : Login required

Soldering station, digital, 200W, 230V with soldering iron WXP120 (120W).

Kit consists of:

WX 1 control unit (200W/230V)
WXP 120 soldering iron, 120W / 24V, XTB 1 tip
WDH 10 safety rest

WX 1 CONTROL UNIT 230V UK F/G :

Digital Power Unit, 200W / 230V.
Digital temperature control 50 ° C - 550 ° C (depending on the tool).

Very high capacity and fast heating time.
- Using a tool to 200W.
Robust capacitive touch screen.
Intuitive, twist and click to enter key and guide fingers.
Multilingual menu.
Automatic recognition tools.
USB port for firmware updates, configuration settings and journalistic systems.
Intelligent tools, A / D converter and memory tools in the handle.
Auto power thanks to sensors in the handle tools.
No calibration required.
Antistatic
Different possibilities of equipotential bonding on the device.

Technical Details:

Dimensions (L x W x H): 170 x 151 x 130mm
Weight: 3.2 Kg
Safety class: I, static frame.
Fuse: T 2A
Temperature accuracy: + - 9 ° C
Temperature Stability: + - 2 ° C
Earthing: 3.5 mm jack.

WXP 120 SOLDERING IRON 120W :

For soldering small and large components with high heat demands

WDH 10 SUPPORT :

Safety rest for WSP80, WP80, WP120.

Consist of

	Code number	Supplier	Description
1x	810 34173	T0053417399N	WX 1 CONTROL UNIT 230V UK F/G
1x	810 29201	T0052920199N	WXP 120 SOLDERING IRON 120W
1x	810 44704	T0054470499	SOLDERING TIP XT-B CHISEL 2,4 x 0,8 mm
1x	810 15121	T0051512199N	WDH 10 SUPPORT
