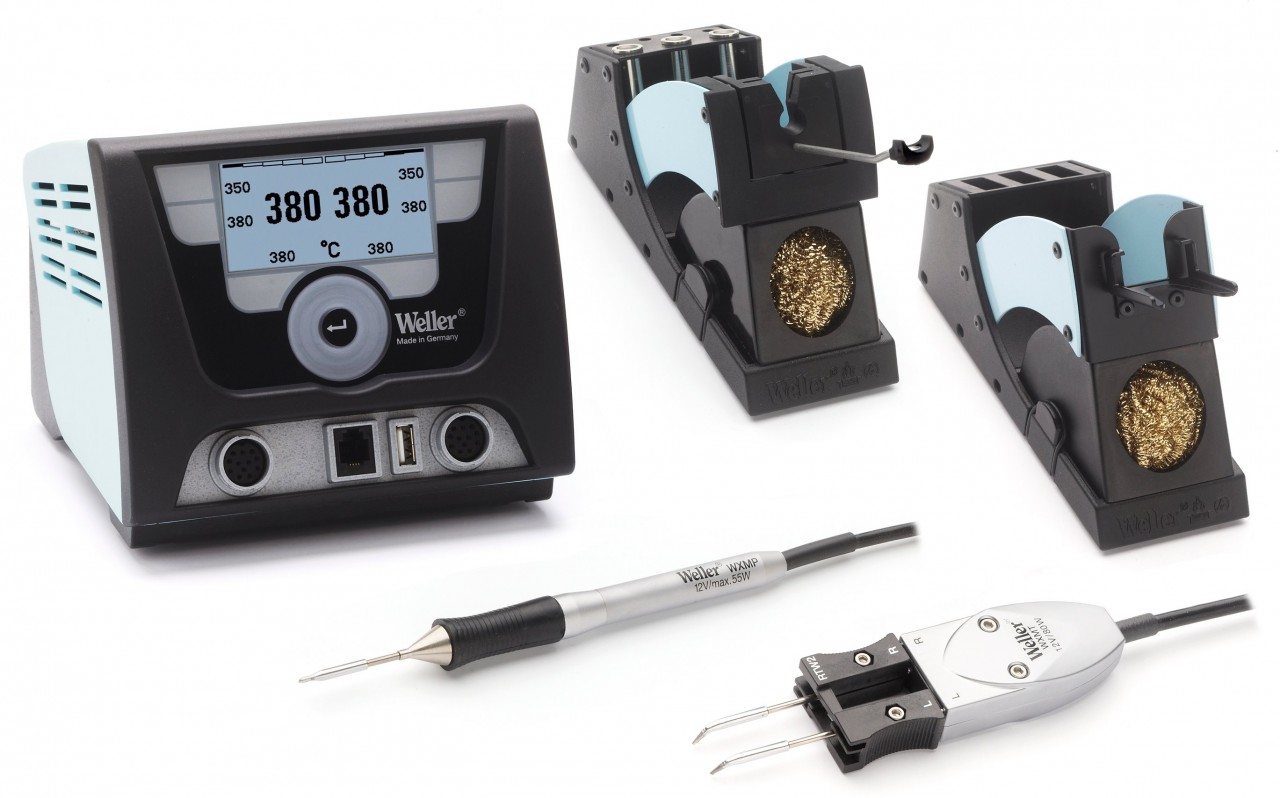

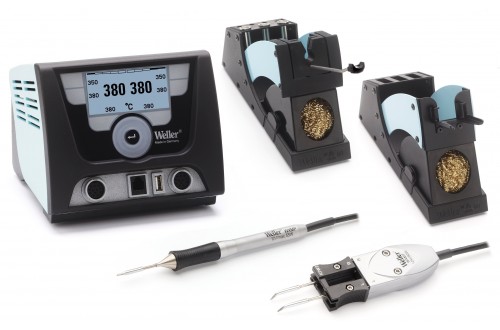

WELLER - Soldering Station WX 2021 with Irons WXMP & WXMT

Click to zoom

For illustration purpose only

ESD_safe
Brand :	WELLER
Code number :	810 34223
Supplier :	T0053422399N
Model :	WX 2021
Minimum temperature (°C) :	100
Maximum temperature (°C) :	450
tag :	WX

Soldering station, digital, 240W, 230V with WXMP micro soldering iron and WXMT micro tweezer.

Consists of:

WX 2 control unit (240W, 230V)
WXMP micro soldering iron with RT 3 chisel tip 40 W
Safety rest WDH 50
WXMT micro tweezer (2x 40W) with RTW 2 soldering tip pair 0.7 x 0.4 mm, 45°
Safety rest WDH 60

WX2 CONTROL UNIT 230V UK F/G :

Digital Power, 240W / 230V.
Digital temperature control 50 ° C - 550 ° C (depending on the tool).

Very high capacity and fast heating time.
- Using a tool up to 200W.
- Simultaneous use two tools to 120W.
Robust capacitive touch screen.
Intuitive, turn and clicking enter key and guide fingers.
Multilingual menu.
Two connections that can be used to manage the units smoke extraction, warm plates and programmable logic controllers. (PLC)
Automatic recognition tools.
USB port for firmware updates, configuration settings and journalistic systems.
Intelligent tools, A / D converter and memory to handle tools.
Auto power thanks to sensors in the handle tools.
No calibration required.
Antistatic
Different possibilities of equipotential bonding on the device.

Technical datails:

Dimensions (L x W x H): 170 x 151 x 130mm
Weight: 3.2 Kg
Safety class: I, static frame.
Fuse: T 2A
Temperature accuracy: + - 9 ° C
Temperature stability: + - 2 ° C
Earthing: 3.5 mm jack.

WXMP HANDPIECE FOR RT TIP :

Voltage: 12V, Maximum power: 55W with RT11 tip

Component size M to L
Extremely fast heat-up time: 5 sec.
Motion sensor and integrated parameter storage.
Fine and thin soldering iron.
Ideal for with microscope work.
High performance by integrated active soldering tip.
Toolless tip change.
Grip and tip in one unit.
Delivered without tip.

SOLDERING TIP RTM 013 S (RT3) :

Tips with Chisel form

WXMT HANDPIECE FOR RTW TIP :

Delivered without tip, 80W (2 x 40W)

Stock and price : Login required

Soldering station, digital, 240W, 230V with WXMP micro soldering iron and WXMT micro tweezer.

Consists of:

WX 2 control unit (240W, 230V)
WXMP micro soldering iron with RT 3 chisel tip 40 W
Safety rest WDH 50
WXMT micro tweezer (2x 40W) with RTW 2 soldering tip pair 0.7 x 0.4 mm, 45°
Safety rest WDH 60

WX2 CONTROL UNIT 230V UK F/G :

Digital Power, 240W / 230V.
Digital temperature control 50 ° C - 550 ° C (depending on the tool).

Very high capacity and fast heating time.
- Using a tool up to 200W.
- Simultaneous use two tools to 120W.
Robust capacitive touch screen.
Intuitive, turn and clicking enter key and guide fingers.
Multilingual menu.
Two connections that can be used to manage the units smoke extraction, warm plates and programmable logic controllers. (PLC)
Automatic recognition tools.
USB port for firmware updates, configuration settings and journalistic systems.
Intelligent tools, A / D converter and memory to handle tools.
Auto power thanks to sensors in the handle tools.
No calibration required.
Antistatic
Different possibilities of equipotential bonding on the device.

Technical datails:

Dimensions (L x W x H): 170 x 151 x 130mm
Weight: 3.2 Kg
Safety class: I, static frame.
Fuse: T 2A
Temperature accuracy: + - 9 ° C
Temperature stability: + - 2 ° C
Earthing: 3.5 mm jack.

WXMP HANDPIECE FOR RT TIP :

Voltage: 12V, Maximum power: 55W with RT11 tip

Component size M to L
Extremely fast heat-up time: 5 sec.
Motion sensor and integrated parameter storage.
Fine and thin soldering iron.
Ideal for with microscope work.
High performance by integrated active soldering tip.
Toolless tip change.
Grip and tip in one unit.
Delivered without tip.

SOLDERING TIP RTM 013 S (RT3) :

Tips with Chisel form

WXMT HANDPIECE FOR RTW TIP :

Delivered without tip, 80W (2 x 40W)

Consist of

	Code number	Supplier	Description
1x	810 34203	T0053420399N	WX2 CONTROL UNIT 230V UK F/G
1x	810 29203	T0052920399N	WXMP HANDPIECE FOR RT TIP
1x	810 44603	T0054460399N	SOLDERING TIP RTM 013 S (RT3)
1x	810 13177	T0051317799N	WXMT HANDPIECE FOR RTW TIP
1x	810 44652	T0054465299N	RTW 2 TIP 0,7mm
