WELLER - Soldering Station WSF 81D8

Click to zoom

For illustration purpose only

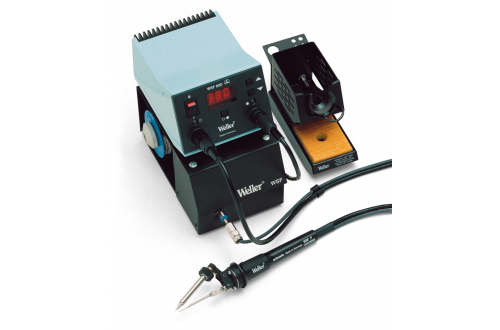

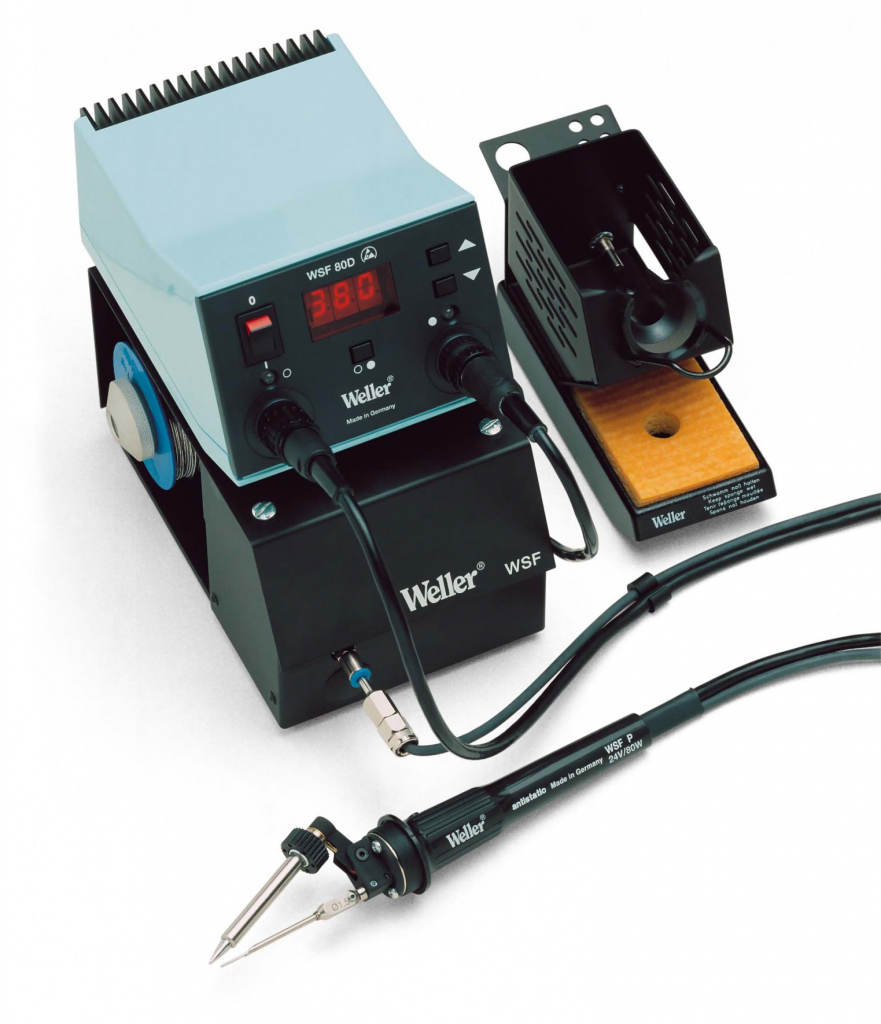

Solder station with feeder system 80 W, 230 V.

For wire ø 0,8 to 1,5 mm
Digitally controlled electronic
Temperature range 50°C - 450°C
Temperature control via buttons
3-positions digital display
Calibration box WCB 2 may be connected for CALIBRATION, LOCK-OUT or OFFSET function
Protection class I
Antistatic housing
Equipotential bonding
Automatic tool recognition
Dimensions: 120 x 217 x 199 mm (L x W x H)

Consists of:

WSF 2 Feeding - power unit
WSFP 8 Soldering iron 80 W, 24 V for wire ø 0,8 - 1,5 mm with soldering tip LT BX
AK S safety rest

Feeder system alone.

Soldering iron 80W, 24V
For 0.8-1.5 mm solder wire with LT BX tip

Solder station with feeder system 80 W, 230 V.

For wire ø 0,8 to 1,5 mm
Digitally controlled electronic
Temperature range 50°C - 450°C
Temperature control via buttons
3-positions digital display
Calibration box WCB 2 may be connected for CALIBRATION, LOCK-OUT or OFFSET function
Protection class I
Antistatic housing
Equipotential bonding
Automatic tool recognition
Dimensions: 120 x 217 x 199 mm (L x W x H)

Consists of:

WSF 2 Feeding - power unit
WSFP 8 Soldering iron 80 W, 24 V for wire ø 0,8 - 1,5 mm with soldering tip LT BX
AK S safety rest

Feeder system alone.

Soldering iron 80W, 24V
For 0.8-1.5 mm solder wire with LT BX tip

Consist of

		Code number	Supplier	Description
	1x	810 28116	T0052811699N	FEEDING UNIT WSF2
	1x	810 28122	T0052812299N	FER A SOUDER WSFP8
