ELECTRO PJP - Testing patchcords MLS/MS 1000V

Click to zoom

For illustration purpose only

Brand :	ELECTRO PJP

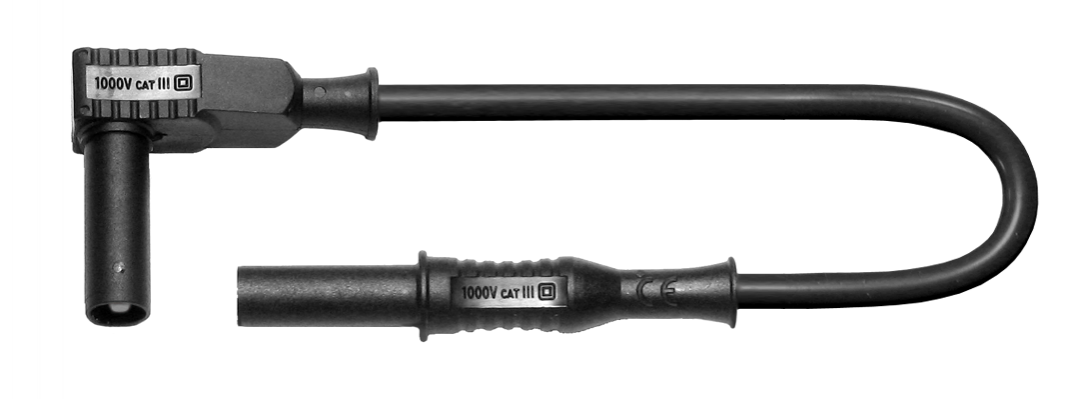

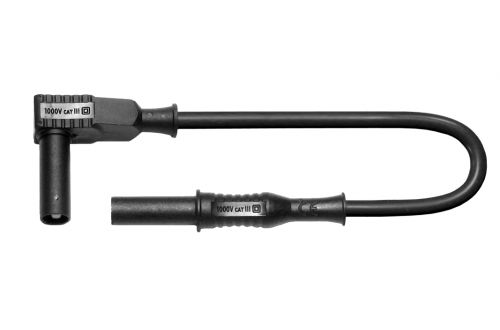

Straight cord plug 4 mm - 4 mm angled plug - reinforced insulation.

1000 V CAT III

Straight cord plug 4 mm - 4 mm angled plug - reinforced insulation.

1000 V CAT III

Code number	Supplier	Material	Temperature (°C)	Section (mm²)	Max. current (A)	Length (mm)	Length (m)	Color	Stock	Price ( ExVAT )
389 09010	2351-IEC-10N 155761	Silicone	-60 / +180	0,75	12	100		Black	Login required
389 09012	2351-IEC-10R 155762	Silicone	-60 / +180	0,75	12	100		Red	Login required
389 09014	2351-IEC-10J 155759	Silicone	-60 / +180	0,75	12	100		Yellow	Login required
389 09015	2351-IEC-10V 155763	Silicone	-60 / +180	0,75	12	100		Green	Login required
389 09016	2351-IEC-10BL 155758	Silicone	-60 / +180	0,75	12	100		Blue	Login required
389 09019	2351-IEC-10BC 155757	Silicone	-60 / +180	0,75	12	100		White	Login required
389 0901Y	2351-IEC-10JV 155760	Silicone	-60 / +180	0,75	12	100		Yellow / Green	Login required
389 09040	2351-IEC-25N 156060	Silicone	-60 / +180	0,75	12	250		Black	Login required
389 09042	2351-IEC-25R 156061	Silicone	-60 / +180	0,75	12	250		Red	Login required
389 09045	2351-IEC-25V 156062	Silicone	-60 / +180	0,75	12	250		Green	Login required
389 09046	2351-IEC-25BL 156059	Silicone	-60 / +180	0,75	12	250		Blue	Login required
389 09049	2351-IEC-25BC 156058	Silicone	-60 / +180	0,75	12	250		White	Login required
389 0904Y	2351-IEC-25JV 156071	Silicone	-60 / +180	0,75	12	250		Yellow / Green	Login required
389 09050	2351-IEC-50N 156066	Silicone	-60 / +180	0,75	12	500		Black	Login required
389 09052	2351-IEC-50R 156067	Silicone	-60 / +180	0,75	12	500		Red	Login required
Code number	Supplier	Material	Temperature (°C)	Section (mm²)	Max. current (A)	Length (mm)	Length (m)	Color	Stock	Price ( ExVAT )
389 09054	2351-IEC-50J 156065	Silicone	-60 / +180	0,75	12	500		Yellow	Login required
389 09055	2351-IEC-50V 156068	Silicone	-60 / +180	0,75	12	500		Green	Login required
389 09056	2351-IEC-50BL 156064	Silicone	-60 / +180	0,75	12	500		Blue	Login required
389 09059	2351-IEC-50BC 156063	Silicone	-60 / +180	0,75	12	500		White	Login required
389 0905Y	2351-IEC-50JV 156072	Silicone	-60 / +180	0,75	12	500		Yellow / Green	Login required
389 09100	2351-IEC-100N 156049	Silicone	-60 / +180	0,75	12		1	Black	Login required
389 09102	2351-IEC-100R 156050	Silicone	-60 / +180	0,75	12		1	Red	Login required
389 09104	2351-IEC-100J 156048	Silicone	-60 / +180	0,75	12		1	Yellow	Login required
389 09105	2351-IEC-100V 156051	Silicone	-60 / +180	0,75	12		1	Green	Login required
389 09106	2351-IEC-100BL 156047	Silicone	-60 / +180	0,75	12		1	Blue	Login required
389 09109	2351-IEC-100BC 156046	Silicone	-60 / +180	0,75	12		1	White	Login required
389 0910Y	2351-IEC-100JV 156069	Silicone	-60 / +180	0,75	12		1	Yellow / Green	Login required
389 09150	2351-IEC-150N 155769	Silicone	-60 / +180	0,75	12		1,5	Black	Login required
389 09152	2351-IEC-150R 155770	Silicone	-60 / +180	0,75	12		1,5	Red	Login required
389 09154	2351-IEC-150J 155768	Silicone	-60 / +180	0,75	12		1,5	Yellow	Login required
Code number	Supplier	Material	Temperature (°C)	Section (mm²)	Max. current (A)	Length (mm)	Length (m)	Color	Stock	Price ( ExVAT )
389 09155	2351-IEC-150V 155771	Silicone	-60 / +180	0,75	12		1,5	Green	Login required
389 09156	2351-IEC-150BL 155767	Silicone	-60 / +180	0,75	12		1,5	Blue	Login required
389 09159	2351-IEC-150BC 155766	Silicone	-60 / +180	0,75	12		1,5	White	Login required
389 0915Y	2351-IEC-150JV 155772	Silicone	-60 / +180	0,75	12		1,5	Yellow / Green	Login required
389 09200	2351-IEC-200N 156055	Silicone	-60 / +180	0,75	12		2	Black	Login required
389 09202	2351-IEC-200R 156056	Silicone	-60 / +180	0,75	12		2	Red	Login required
389 09204	2351-IEC-200J 156054	Silicone	-60 / +180	0,75	12		2	Yellow	Login required
389 09205	2351-IEC-200V 156057	Silicone	-60 / +180	0,75	12		2	Green	Login required
389 09206	2351-IEC-200BL 156053	Silicone	-60 / +180	0,75	12		2	Blue	Login required
389 09209	2351-IEC-200BC 156052	Silicone	-60 / +180	0,75	12		2	White	Login required
389 0920Y	2351-IEC-200JV 156070	Silicone	-60 / +180	0,75	12		2	Yellow / Green	Login required
389 10040	2359-IEC-25N 155991	Silicone	-60 / +180	1	20	250		Black	Login required
389 10042	2359-IEC-25R 155992	Silicone	-60 / +180	1	20	250		Red	Login required
389 10044	2359-IEC-25J 155989	Silicone	-60 / +180	1	20	250		Yellow	Login required
389 10045	2359-IEC-25V 155993	Silicone	-60 / +180	1	20	250		Green	Login required
Code number	Supplier	Material	Temperature (°C)	Section (mm²)	Max. current (A)	Length (mm)	Length (m)	Color	Stock	Price ( ExVAT )
389 10046	2359-IEC-25BL 155988	Silicone	-60 / +180	1	20	250		Blue	Login required
389 10049	2359-IEC-25BC 155987	Silicone	-60 / +180	1	20	250		White	Login required
389 1004Y	2359-IEC-25JV 155990	Silicone	-60 / +180	1	20	250		Yellow / Green	Login required
389 10054	2359-IEC-50J 155995	Silicone	-60 / +180	1	20	500		Yellow	Login required
389 10055	2359-IEC-50V 227645	Silicone	-60 / +180	1	20	500		Green	Login required
389 10059	2359-IEC-50BC 155994	Silicone	-60 / +180	1	20	500		White	Login required
389 1005Y	2359-IEC-50JV 155996	Silicone	-60 / +180	1	20	500		Yellow / Green	Login required
389 10100	2359-IEC-100N 155974	Silicone	-60 / +180	1	20		1	Black	Login required
389 10102	2359-IEC-100R 155975	Silicone	-60 / +180	1	20		1	Red	Login required
389 10104	2359-IEC-100J 155972	Silicone	-60 / +180	1	20		1	Yellow	Login required
389 10106	2359-IEC-100BL 227641	Silicone	-60 / +180	1	20		1	Blue	Login required
389 1010Y	2359-IEC-100JV 155973	Silicone	-60 / +180	1	20		1	Yellow / Green	Login required
389 10150	2359-IEC-150N 155980	Silicone	-60 / +180	1	20		1,5	Black	Login required
389 10152	2359-IEC-150R 155981	Silicone	-60 / +180	1	20		1,5	Red	Login required
389 10154	2359-IEC-150J 155978	Silicone	-60 / +180	1	20		1,5	Yellow	Login required
Code number	Supplier	Material	Temperature (°C)	Section (mm²)	Max. current (A)	Length (mm)	Length (m)	Color	Stock	Price ( ExVAT )
389 10155	2359-IEC-150V 227644	Silicone	-60 / +180	1	20		1,5	Green	Login required
389 10156	2359-IEC-150BL 227643	Silicone	-60 / +180	1	20		1,5	Blue	Login required
389 10159	2359-IEC-150BC 227642	Silicone	-60 / +180	1	20		1,5	White	Login required
389 1015Y	2359-IEC-150JV 155979	Silicone	-60 / +180	1	20		1,5	Yellow / Green	Login required
389 10204	2359-IEC-200J 155984	Silicone	-60 / +180	1	20		2	Yellow	Login required
389 10205	2359-IEC-200V 155986	Silicone	-60 / +180	1	20		2	Green	Login required
389 10206	2359-IEC-200BL 155983	Silicone	-60 / +180	1	20		2	Blue	Login required
389 10209	2359-IEC-200BC 155982	Silicone	-60 / +180	1	20		2	White	Login required
389 1020Y	2359-IEC-200JV 155985	Silicone	-60 / +180	1	20		2	Yellow / Green	Login required
389 75610	2353-IEC-25N 156012	Silicone	-60 / +180	1,5	25	250		Black	Login required
389 75612	2353-IEC-25R 156013	Silicone	-60 / +180	1,5	25	250		Red	Login required
389 75614	2353-IEC-25J 156011	Silicone	-60 / +180	1,5	25	250		Yellow	Login required
389 75615	2353-IEC-25V 156014	Silicone	-60 / +180	1,5	25	250		Green	Login required
389 75616	2353-IEC-25BL 156010	Silicone	-60 / +180	1,5	25	250		Blue	Login required
389 75619	2353-IEC-25BC 156009	Silicone	-60 / +180	1,5	25	250		White	Login required
Code number	Supplier	Material	Temperature (°C)	Section (mm²)	Max. current (A)	Length (mm)	Length (m)	Color	Stock	Price ( ExVAT )
389 7561Y	2353-IEC-25JV 156021	Silicone	-60 / +180	1,5	25	250		Yellow / Green	Login required
389 75630	2353-IEC-50N 156018	Silicone	-60 / +180	1,5	25	500		Black	Login required
389 75632	2353-IEC-50R 156019	Silicone	-60 / +180	1,5	25	500		Red	Login required
389 75634	2353-IEC-50J 156017	Silicone	-60 / +180	1,5	25	500		Yellow	Login required
389 75635	2353-IEC-50V 156020	Silicone	-60 / +180	1,5	25	500		Green	Login required
389 75636	2353-IEC-50BL 156016	Silicone	-60 / +180	1,5	25	500		Blue	Login required
389 75639	2353-IEC-50BC 156015	Silicone	-60 / +180	1,5	25	500		White	Login required
389 7563Y	2353-IEC-50JV 156543	Silicone	-60 / +180	1,5	25	500		Yellow / Green	Login required
389 75640	2353-IEC-100N 156000	Silicone	-60 / +180	1,5	25		1	Black	Login required
389 75642	2353-IEC-100R 156001	Silicone	-60 / +180	1,5	25		1	Red	Login required
389 75644	2353-IEC-100J 155999	Silicone	-60 / +180	1,5	25		1	Yellow	Login required
389 75645	2353-IEC-100V 156002	Silicone	-60 / +180	1,5	25		1	Green	Login required
389 75646	2353-IEC-100BL 155998	Silicone	-60 / +180	1,5	25		1	Blue	Login required
389 75649	2353-IEC-100BC 155997	Silicone	-60 / +180	1,5	25		1	White	Login required
389 7564Y	2353-IEC-100JV 156545	Silicone	-60 / +180	1,5	25		1	Yellow / Green	Login required
Code number	Supplier	Material	Temperature (°C)	Section (mm²)	Max. current (A)	Length (mm)	Length (m)	Color	Stock	Price ( ExVAT )
389 75660	2353-IEC-150N 155784	Silicone	-60 / +180	1,5	25		1,5	Black	Login required
389 75662	2353-IEC-150R 155785	Silicone	-60 / +180	1,5	25		1,5	Red	Login required
389 75664	2353-IEC-150J 155782	Silicone	-60 / +180	1,5	25		1,5	Yellow	Login required
389 75665	2353-IEC-150V 155786	Silicone	-60 / +180	1,5	25		1,5	Green	Login required
389 75666	2353-IEC-150BL 155781	Silicone	-60 / +180	1,5	25		1,5	Blue	Login required
389 75669	2353-IEC-150BC 155780	Silicone	-60 / +180	1,5	25		1,5	White	Login required
389 7566Y	2353-IEC-150JV 155783	Silicone	-60 / +180	1,5	25		1,5	Yellow / Green	Login required
389 75670	2353-IEC-200N 156006	Silicone	-60 / +180	1,5	25		2	Black	Login required
389 75672	2353-IEC-200R 156007	Silicone	-60 / +180	1,5	25		2	Red	Login required
389 75674	2353-IEC-200J 156005	Silicone	-60 / +180	1,5	25		2	Yellow	Login required
389 75675	2353-IEC-200V 156008	Silicone	-60 / +180	1,5	25		2	Green	Login required
389 75676	2353-IEC-200BL 156004	Silicone	-60 / +180	1,5	25		2	Blue	Login required
389 75679	2353-IEC-200BC 156003	Silicone	-60 / +180	1,5	25		2	White	Login required
389 7567Y	2353-IEC-200JV 156544	Silicone	-60 / +180	1,5	25		2	Yellow / Green	Login required
389 75710	2354-IEC-25N 156037	Silicone	-60 / +180	2,5	36	250		Black	Login required
Code number	Supplier	Material	Temperature (°C)	Section (mm²)	Max. current (A)	Length (mm)	Length (m)	Color	Stock	Price ( ExVAT )
389 75712	2354-IEC-25R 156038	Silicone	-60 / +180	2,5	36	250		Red	Login required
389 75714	2354-IEC-25J 156036	Silicone	-60 / +180	2,5	36	250		Yellow	Login required
389 75715	2354-IEC-25V 156039	Silicone	-60 / +180	2,5	36	250		Green	Login required
389 75716	2354-IEC-25BL 156035	Silicone	-60 / +180	2,5	36	250		Blue	Login required
389 75719	2354-IEC-25BC 156034	Silicone	-60 / +180	2,5	36	250		White	Login required
389 7571Y	2354-IEC-25JV 156546	Silicone	-60 / +180	2,5	36	250		Yellow / Green	Login required
389 75730	2354-IEC-50N 156043	Silicone	-60 / +180	2,5	36	500		Black	Login required
389 75732	2354-IEC-50R 156044	Silicone	-60 / +180	2,5	36	500		Red	Login required
389 75734	2354-IEC-50J 156042	Silicone	-60 / +180	2,5	36	500		Yellow	Login required
389 75735	2354-IEC-50V 156045	Silicone	-60 / +180	2,5	36	500		Green	Login required
389 75736	2354-IEC-50BL 156041	Silicone	-60 / +180	2,5	36	500		Blue	Login required
389 75739	2354-IEC-50BC 156040	Silicone	-60 / +180	2,5	36	500		White	Login required
389 7573Y	2354-IEC-50JV 156547	Silicone	-60 / +180	2,5	36	500		Yellow / Green	Login required
389 75740	2354-IEC-100N 156025	Silicone	-60 / +180	2,5	36		1	Black	Login required
389 75742	2354-IEC-100R 156026	Silicone	-60 / +180	2,5	36		1	Red	Login required
Code number	Supplier	Material	Temperature (°C)	Section (mm²)	Max. current (A)	Length (mm)	Length (m)	Color	Stock	Price ( ExVAT )
389 75744	2354-IEC-100J 156024	Silicone	-60 / +180	2,5	36		1	Yellow	Login required
389 75745	2354-IEC-100V 156027	Silicone	-60 / +180	2,5	36		1	Green	Login required
389 75746	2354-IEC-100BL 156023	Silicone	-60 / +180	2,5	36		1	Blue	Login required
389 75749	2354-IEC-100BC 156022	Silicone	-60 / +180	2,5	36		1	White	Login required
389 7574Y	2354-IEC-100JV 156548	Silicone	-60 / +180	2,5	36		1	Yellow / Green	Login required
389 75760	2354-IEC-150N 155795	Silicone	-60 / +180	2,5	36		1,5	Black	Login required
389 75762	2354-IEC-150R 155796	Silicone	-60 / +180	2,5	36		1,5	Red	Login required
389 75764	2354-IEC-150J 155611	Silicone	-60 / +180	2,5	36		1,5	Yellow	Login required
389 75765	2354-IEC-150V 155797	Silicone	-60 / +180	2,5	36		1,5	Green	Login required
389 75766	2354-IEC-150BL 155610	Silicone	-60 / +180	2,5	36		1,5	Blue	Login required
389 75769	2354-IEC-150BC 155609	Silicone	-60 / +180	2,5	36		1,5	White	Login required
389 7576Y	2354-IEC-150JV 155794	Silicone	-60 / +180	2,5	36		1,5	Yellow / Green	Login required
389 75770	2354-IEC-200N 156031	Silicone	-60 / +180	2,5	36		2	Black	Login required
389 75772	2354-IEC-200R 156032	Silicone	-60 / +180	2,5	36		2	Red	Login required
389 75774	2354-IEC-200J 156030	Silicone	-60 / +180	2,5	36		2	Yellow	Login required
Code number	Supplier	Material	Temperature (°C)	Section (mm²)	Max. current (A)	Length (mm)	Length (m)	Color	Stock	Price ( ExVAT )
389 75775	2354-IEC-200V 156033	Silicone	-60 / +180	2,5	36		2	Green	Login required
389 75776	2354-IEC-200BL 156029	Silicone	-60 / +180	2,5	36		2	Blue	Login required
389 75779	2354-IEC-200BC 156028	Silicone	-60 / +180	2,5	36		2	White	Login required
389 7577Y	2354-IEC-200JV 156549	Silicone	-60 / +180	2,5	36		2	Yellow / Green	Login required
