| ESD_safe |  |
|---|---|
| Brand : | WELLER |
| Code number : | 810 34496 |
| Supplier : | T0053449699 |
| Soldering tip min width (mm) : | 0,1 |
| Soldering tip width (mm) : | 0,4 |
| Soldering tip max width (mm) : | 1,3 |
| Channel count : | 1 |
| Minimum temperature (°C) : | 100 |
| Maximum temperature (°C) : | 450 |
| Heat-up time (50°C - 350°C) (s) : | 3 |
| Power (W) : | 95 |
| Voltage (V) : | 230 |
| tag : | WT M |

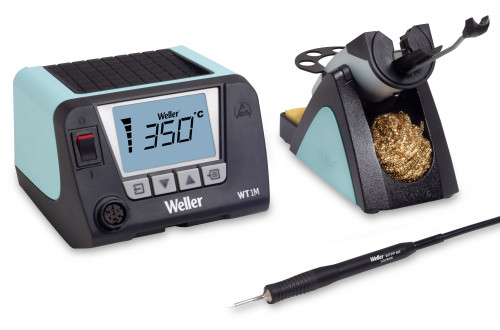

Soldering station, digital, 95W, 230V with Micro soldering iron WT 1011M (40W active tip).
Kit consists of:
1 channel power unit, 95W, 230V/50Hz
Handpiece for high precision micro soldering applications: 0402 to 01005.
Always use MS tips with MS irons
Tip Chisel form
Safety rest for soldering iron WMRP.
Safety Rests Join Together
With the removal of the blue side plates, two or more safety rests can be bolted together
2-in-1 WSR Safety Rest
The soldering iron holder can be rotated through 180°. Users can choose between wet and dry tip cleaning.
Soldering station, digital, 95W, 230V with Micro soldering iron WT 1011M (40W active tip).
Kit consists of:
1 channel power unit, 95W, 230V/50Hz
Handpiece for high precision micro soldering applications: 0402 to 01005.
Always use MS tips with MS irons
Tip Chisel form
Safety rest for soldering iron WMRP.
Safety Rests Join Together
With the removal of the blue side plates, two or more safety rests can be bolted together
2-in-1 WSR Safety Rest
The soldering iron holder can be rotated through 180°. Users can choose between wet and dry tip cleaning.
| Code number | Supplier | Description | ||
|---|---|---|---|---|
| 1x | 810 34476 | T0053447699 | WT1M POWER UNIT 230V F/G |
| 1x | 810 29240 | T0052924099 | WTPP MS HANDPIECE |
| 1x | 810 01023 | T0050102399 | TIP CHISEL RTP 004 S MS 0,4x0,2mm |
| 1x | 810 15179 | T0051517999 | WSR 205 SAFETY REST FOR WMRP |
