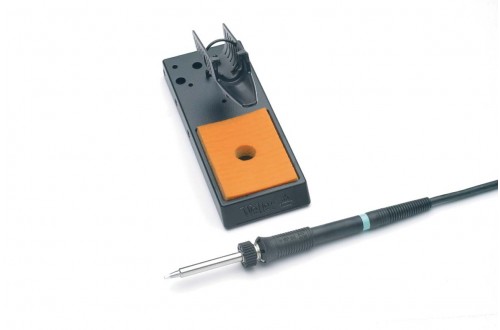

WELLER - Soldering kit WSP 80

Click to zoom

For illustration purpose only

ESD_safe
Brand :	WELLER
EAN code :	4003019040407
Code number :	810 33125
Supplier :	T0053312599N
Model :	KIT WSP80

Kit contains:

Micro soldering iron WSP 80 - 80 W / 24 V - Universal iron both delicate welding, for welding requires significant power
Safety rest WPH 80
Tip LT B

WPH80 SUPPORT ANTIST. :

Safety rest for WSP 80, MLR 21

WSP80 SOLDERING IRON ANTISTAT. :

Voltage: 24 V, Heating output: 80 W
Heat-up time (ca) in seconds (50-350°C / 120-660°F) : 10 sec
Tip family: LT
Temperature range °C: 50 - 450
Temperature range °F: 150 - 850
WT compatible

Replacement products

	Code number	Name
	810 33125 01	WSP 80 SOLDERING SET with WSR201 safety rest

Stock and price : Login required

Kit contains:

Micro soldering iron WSP 80 - 80 W / 24 V - Universal iron both delicate welding, for welding requires significant power
Safety rest WPH 80
Tip LT B

WPH80 SUPPORT ANTIST. :

Safety rest for WSP 80, MLR 21

WSP80 SOLDERING IRON ANTISTAT. :

Voltage: 24 V, Heating output: 80 W
Heat-up time (ca) in seconds (50-350°C / 120-660°F) : 10 sec
Tip family: LT
Temperature range °C: 50 - 450
Temperature range °F: 150 - 850
WT compatible

Replacement products

	Code number	Name
	810 33125 01	WSP 80 SOLDERING SET with WSR201 safety rest

Consist of

		Code number	Supplier	Description
	1x	810 15140	T0051514099N	WPH80 SUPPORT ANTIST.
	1x	810 29161	T0052916199N	WSP80 SOLDERING IRON ANTISTAT.

Related products

Flexible pipe system for fume extraction
Funnels for iron holder
Power unit
Safety rests
Sponges
Tip adaptors
Tips LT

Flexible pipe system for fume extraction

WELLER : Universal FE adapter

FE Attachements with tube for WSP 80, WP 80, MLR 21, WMP, WTP90, WXP90.

Code number	Supplier		Description	Dimensions (mm)	Stock	Price ( ExVAT )
810 29185	T0052918599N		Tube 4,5 mm	4,5	Login required
810 29186	T0052918699N		Tube 6 mm	6	Login required

Funnels for iron holder

WELLER : Support assembly for WPH80

Code number	Supplier	Stock	Price ( ExVAT )
810 87447 29	T0058744729N	Login required

Power unit

WELLER : Power unit WR 3M

Digital 420W repair power unit.

Code number	Supplier	Model	Description	Channel count	Hot air	Desoldering	Built-in pump	Minimum temperature (°C)	Maximum temperature (°C)	Power (W)	Voltage (V)	Stock	Price ( ExVAT )
810 33666	T0053366699N	WR3M	Power Unit	3				50	550	300	230	Login required

WELLER : Power unit PU 81

Analog Power unit 80 W, 230V 1-channel, up to 80W soldering iron

Code number	Supplier	Model	Description	Channel count	Hot air	Desoldering	Built-in pump	Minimum temperature (°C)	Maximum temperature (°C)	Power (W)	Voltage (V)	Stock	Price ( ExVAT )
810 32526	T0053252699N	PU81	Power unit	1				150	450	80	230	Login required

WELLER : Control unit WT 1

Digital Power Unit, 95W / 230V.

Code number	Supplier	Model	Channel count	Hot air	Desoldering	Built-in pump	Minimum temperature (°C)	Maximum temperature (°C)	Power (W)	Voltage (V)	Weight (kg)	Stock	Price ( ExVAT )
810 34343	T0053434399N	WT1	1				50	550	95	230	1,9	Login required

WELLER : Control unit WT 1H

Digital Power Unit, 150 (200)W / 230V.

Code number	Supplier	Model	Channel count	Hot air	Desoldering	Built-in pump	Minimum temperature (°C)	Maximum temperature (°C)	Power (W)	Voltage (V)	Weight (kg)	Stock	Price ( ExVAT )
810 34353	T0053435399N	WT1H	1				50	550	150	230	3	Login required

WELLER : Control unit WT 1M

1 channel power unit, 95W, 230V/50Hz

Code number	Supplier	Model	Channel count	Hot air	Desoldering	Built-in pump	Minimum temperature (°C)	Maximum temperature (°C)	Power (W)	Voltage (V)	Protection class	Weight (kg)	Stock	Price ( ExVAT )
810 34476	T0053447699	WT1M	1				50	550	95	230	I	1,9	Login required

WELLER : Control unit WT 2M

Dual channel, Digital power unit, 150W - 230V / 50Hz.

Code number	Supplier	Model	Channel count	Hot air	Desoldering	Built-in pump	Minimum temperature (°C)	Maximum temperature (°C)	Power (W)	Voltage (V)	Weight (kg)	Stock	Price ( ExVAT )
810 34433	T0053443399	WT2M	2				50	550	150	230	2,92	Login required

Safety rests

WELLER : Safety rest WPH80

Safety rest for WSP 80, MLR 21

Code number	Supplier	Model	Description	Stock	Price ( ExVAT )
810 15140	T0051514099N	WPH80	Safety rest	Login required

WELLER : Safety rest WSR 201

Code number	Supplier	Model	Stock	Price ( ExVAT )
810 15175	T0051517599N	WSR201	Login required

Sponges

WELLER : Sponges double layer

Cleaning sponges - pack of 5.

Code number	Supplier	Description	Packing	Stock	Price ( ExVAT )
810 22420	T0052242099	Sponge double layer x5	x 5	Login required

WELLER : Sponges

Cleaning sponges - pack of 5.

Code number	Supplier	Description	Packing	Stock	Price ( ExVAT )
810 22419	T0052241999	Sponge x5	x 5	Login required

Tip adaptors

WELLER : Adapter SMT for WSP 80

Code number	Supplier	Model	Stock	Price ( ExVAT )
810 44417	T0054441799	Adapter LT -> SMT	Login required

Tips LT

WELLER : Tip LT solder depot form (Gullwing)

Code number	Supplier	Model	Shape	Width (mm)	Thickness (mm)	Length (mm)	Packing	Stock
810 44410	T0054441099	LT GW1	GullWing	2,2	1,4	18	x 1	Login required
810 44410 11	T0054441011	LT GW1 * 100	GullWing	2,2	1,4	18	x 100	Login required
810 44511	T0054451199	LT GW2	GullWing	4,8	3,5	18	x 1	Login required

WELLER : Tips LT-CALIBRATION

LT measuring tip for thermo-element, 0,5mm.

Code number	Supplier	Model	Shape	Width (mm)	Length (mm)	Packing	Stock	Price ( ExVAT )
810 44416	T0054441699	LT-CALIBRATION	Calibration	0,5	13	x 1	Login required

WELLER : Tips LT Chisel shape

Code number	Supplier	Model	Shape	Width (mm)	Thickness (mm)	Length (mm)	Packing	Chromed	Polybag	Bulk	Stock	Price ( ExVAT )
810 44494	T0054449499	LT 1 SC	Chisel	0,4	0,15	15	x 1				Login required
810 44497	T0054449799	LT 1 SCNW	Chisel	0,3	0,1	15	x 1				Login required
810 44437	T0054443799	LT H	Chisel	0,8	0,4	13	x 1				Login required
810 44412 11	T0054441211	LT H * 100	Chisel	0,8	0,4	13	x 100				Login required
810 44438	T0054443899	LT K	Chisel	1,2	0,4	20	x 1				Login required
810 44413 11	T0054441311	LT K * 100	Chisel	1,2	0,4	20	x 100				Login required
810 44516	T0054451699	LT ASL	Chisel	1,6	0,45	13	x 1				Login required
810 44440	T0054444099	LT A	Chisel	1,6	0,7	13	x 1				Login required
810 44403 11	T0054440311	LT A * 100	Chisel	1,6	0,7	13	x 100				Login required
810 44414	T0054441499	LT L	Chisel	2,0	1,0	20	x 1				Login required
810 44414 11	T0054441411	LT L * 100	Chisel	2,0	1,0	20	x 100				Login required
810 44405	T0054440599	LT B	Chisel	2,4	0,8	13	x 1				Login required
810 44405 11	T0054440511	LT B * 100	Chisel	2,4	0,8	13	x 100				Login required
810 44446	T0054444699	LT B LF	Chisel	2,4	0,8	13	x 1				Login required
810 44517	T0054451799	LT BSL	Chisel	2,4	0,45	13	x 1				Login required
Code number	Supplier	Model	Shape	Width (mm)	Thickness (mm)	Length (mm)	Packing	Chromed	Polybag	Bulk	Stock	Price ( ExVAT )
810 44407	T0054440799	LT C	Chisel	3,2	0,8	13	x 1				Login required
810 44407 11	T0054440711	LT C * 100	Chisel	3,2	0,8	13	x 100				Login required
810 44415	T0054441599	LT M	Chisel	3,2	1,2	20	x 1				Login required
810 44409	T0054440999	LT D	Chisel	4,6	0,8	13	x 1				Login required
810 44409 11	T0054440911	LT D * 100	Chisel	4,6	0,8	13	x 100				Login required
810 44448	T0054444899	LT DLL	Chisel	4,6	1,2	13	x 1				Login required

WELLER : Tips LT X (angle) Chisel Shape

Code number	Supplier	Model	Shape	Width (mm)	Thickness (mm)	Length (mm)	Packing	Stock
810 44428	T0054442899	LT 4X	Chisel	1,2	0,4	16.5	x 1	Login required
810 44443	T0054444399	LT ALX	Chisel	1,6	0,7	18	x 1	Login required
810 44427	T0054442799	LT AX	Chisel	1,6	0,8	14,1	x 1	Login required
810 44442	T0054444299	LT BX	Chisel	2,4	0,8	18	x 1	Login required
810 44420	T0054442099	LT HX	Chisel	0,8	0,4	18	x 1	Login required
810 44420 11	T0054442011	LT HX * 100	Chisel	0,8	0,4	18	x 100	Login required
810 44469	T0054446999	LT MX	Chisel	3,2	1,2	19	x 1	Login required
810 44512	T0054451299	LT MX2	Chisel	3,0	1,0	19	x 1	Login required

WELLER : Tips LT rounded form

Code number	Supplier	Model	Shape	Width (mm)	Length (mm)	Packing	Stock
810 44435	T0054443599	LT 1	Conical	0,25	13	x 1	Login required
810 44401 11	T0054440111	LT 1 *100	Conical	0,25	13	x 100	Login required
810 44489	T0054448999	LT 1A	Conical	0,5	13	x 1	Login required
810 44436	T0054443699	LT 1S	Conical	0,2	15	x 1	Login required
810 44488	T0054448899	LT 1SA	Conical	0,5	15	x 1	Login required
810 44496	T0054449699	LT 1SNW	Conical	0,1	15	x 1	Login required
810 44404	T0054440499	LT AS	Conical	1,6	13	x 1	Login required
810 44499	T0054449999	LT BS	Conical	2,0	21	x 1	Login required
810 44411	T0054441199	LT CS	Conical	3,2	13	x 1	Login required

WELLER : Tips LT bevel cut form

Code number	Supplier	Model	Shape	Width (mm)	Length (mm)	Packing	Stock
810 44408 73	T0054440873	LT 22CP	Bevel cut	2,0	20	x 1	Login required
810 44408 77	T0054440877	LT 33CP	Bevel cut	3,0	20	x 1	Login required
810 44439	T0054443999	LT 4	Bevel cut	1,2	15	x 1	Login required
810 44487	T0054448799	LT AA 60	Bevel cut	1,6	13	x 1	Login required
810 44484	T0054448499	LT BB 45	Bevel cut	2,4	17	x 1	Login required
810 44444	T0054444499	LT BB 60	Bevel cut	2,4	17	x 1	Login required
810 44445	T0054444599	LT CC 60	Bevel cut	3,2	17	x 1	Login required
810 44478	T0054447899	LT DD 45	Bevel cut	4,0	20	x 1	Login required
810 44486	T0054448699	LT DD 45	Bevel cut	4,6	18	x 1	Login required
810 44408	T0054440899	LT F	Bevel cut	1,2	13	x 1	Login required
810 44408 11	T0054440811	LT F	Bevel cut	1,2	13	x 100	Login required

WELLER : Tip LT knife-shaped

Code number	Supplier		Model	Shape	Width (mm)	Length (mm)	Packing	Stock	Price ( ExVAT )
810 44479	T0054447999		LT KN	Knife	2,0	17	x 1	Login required
810 44519	T0054451999		LT KN SL 45	Knife	2,0	17	x 1	Login required

WELLER : Tips LT X (angle) rounded form

Code number	Supplier		Model	Shape	Width (mm)	Length (mm)	Bent	Packing	Polybag	Stock	Price ( ExVAT )
810 44425	T0054442599		LT 1X	Conical	0,4	13		x 1		Login required
810 44426	T0054442699		LT 1SLX	Conical	0,4	22		x 1		Login required

WELLER : Tip LT conical form

Code number	Supplier	Model	Shape	Width (mm)	Length (mm)	Packing	Stock
810 44423	T0054442399	LT 1L	Conical	0,2	26	x 1	Login required
810 44498	T0054449899	LT 1LNW	Conical	0,1	26	x 1	Login required
810 44481	T0054448199	LT O	Conical	0,8	17	x 1	Login required
810 44406	T0054440699	LT S	Conical	0,4	20	x 1	Login required
810 44406 11	T0054440611	LT S * 100	Conical	0,4	20	x 100	Login required
810 44482	T0054448299	LT T	Conical	0,6	13	x 1	Login required

WELLER : Tip LT X (angle) conical form

Code number	Supplier		Model	Shape	Width (mm)	Length (mm)	Bent	Packing	Polybag	Stock	Price ( ExVAT )
810 44424	T0054442499		LT 1LX	Conical	0,2	26		x 1		Login required

WELLER : Tips LT Chisel shape - HPB

Soldering tips for high melting solder - Not qualified for lead free solder.

Code number	Supplier	Model	Shape	Width (mm)	Thickness (mm)	Length (mm)	Packing	Stock
810 44430	T0054443099	LT H HPb	Chisel	0,8	0,4	13	x 1	Login required
810 44431	T0054443199	LT A HPb	Chisel	1,6	0,7	13	x 1	Login required
810 44432	T0054443299	LT B HPb	Chisel	2,4	0,8	13	x 1	Login required
