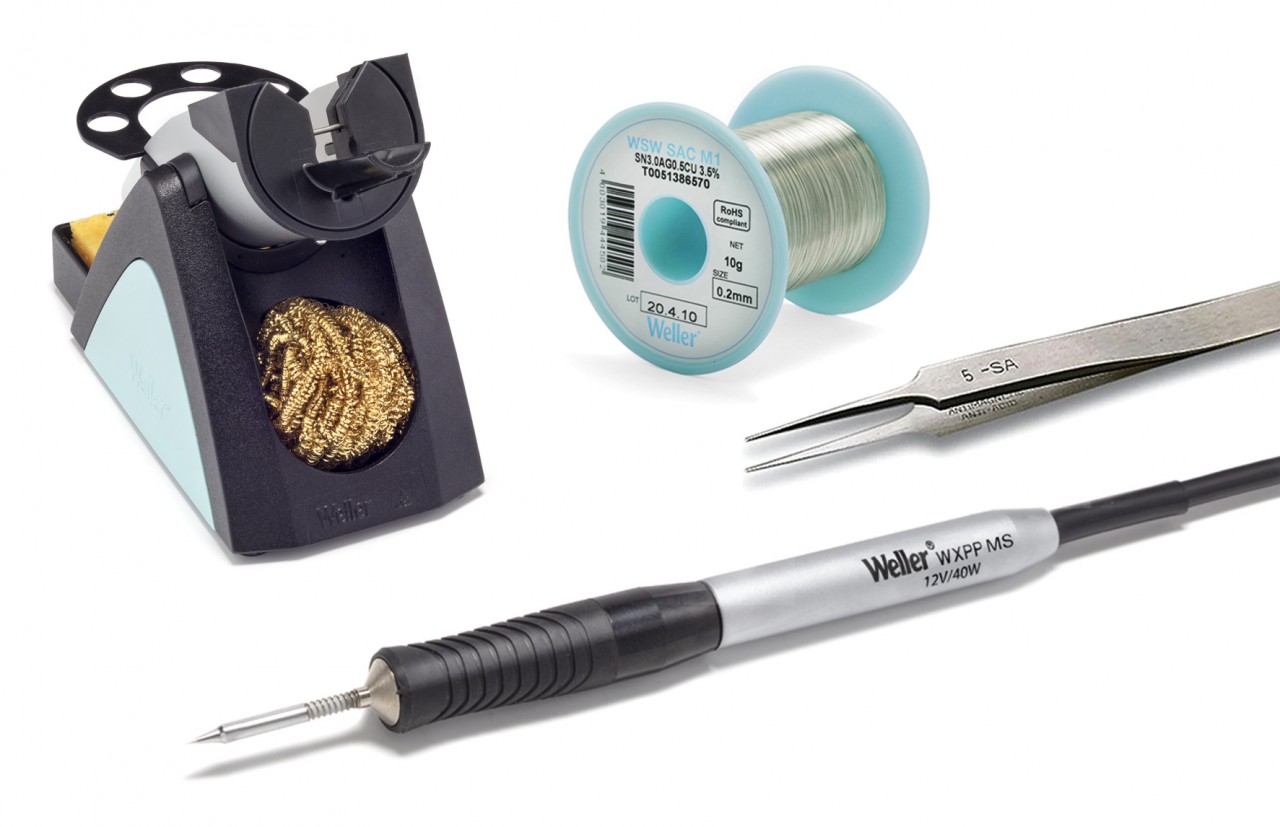

For miniature works under microscope: 0402 and down to 01005.
The powerful, user-friendly set offers highest process reliability for smallest soldering applications in aerospace, electronics, sensors, medical devices, military and automotive industry.
- Delivered with solder wire SAC M1, 0,2mm, 10g.
WXPP MS HANDPIECE FOR RTP MS TIP :
Handpiece for high precision micro soldering applications: 0402 to 01005.
Always use MS tips with MS irons
- Component size XS to S
- Extremely fast heat-up time: 3 sec.
- Triple awarded active tip technology are fully compliant with MIL-SPEC / IPC Standard.
- Motion sensor and integrated parameter storage.
- Toolless tip change.
- Active tip technology.
- Grip and tip in one unit.
- Delivered without tip
SAFETY REST WSR 208 :
For WXPP.
Safety Rests Join Together
With the removal of the blue side plates, two or more safety rests can be bolted together
2-in-1 WSR Safety Rest
The soldering iron holder can be rotated through 180°. Users can choose between wet and dry tip cleaning.
BRUCELLES 5SA :
Precision tweezers with very fine tips, special stainless steel, unmagnetic.
TIP CHISEL RTP 004 S MS 0,4x0,2mm :
Tip Chisel form
- Close working distance to the component for higher precision and maximum control.
- Fastest heat-up and recovery time, sensor close to the solder tip, excellent heat transfer. No downtime, continuing workflow, excellent results.
- Motion activated usage sensor for energy control and data storage.
- Only WXPP MS Solder Iron Compatible
- Millitary Specification : MIL-SPC / IPC standard (potential free)
- Reduces risk of damage to sensitive micro components and workpieces.
- No rework, lower total cost of ownership
