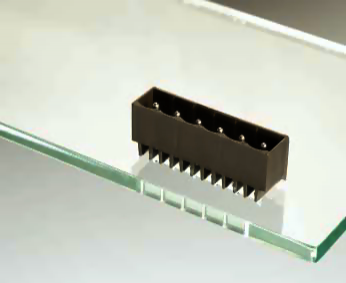

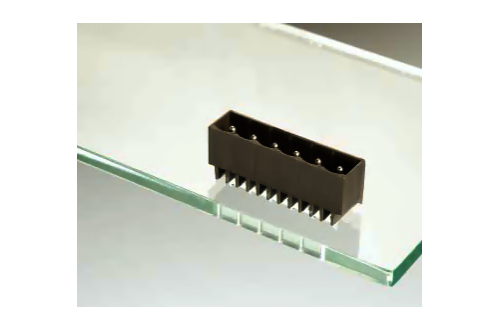

METZ CONNECT - Header PT045xxVBBN (Type 020)

Click to zoom

For illustration purpose only

Brand :	METZ CONNECT

Pin header, solderable
Centerline 5.00 mm, direction of connection vertical 0°.
Closed ends.
Color black.

Pin header, solderable
Centerline 5.00 mm, direction of connection vertical 0°.
Closed ends.
Color black.

Code number	Supplier	Pitch (mm)	Number of poles	Max. current (A)	Color	Stock	Price ( ExVAT )
430 90201	31020102	5	2	10	Black	Login required
430 90301	31020103	5	3	10	Black	Login required
430 90401	31020104	5	4	10	Black	Login required
430 90501	31020105	5	5	10	Black	Login required
430 90601	31020106	5	6	10	Black	Login required
310 20107	31020107	5	7	10	Black	Login required
430 90801	31020108	5	8	10	Black	Login required
310 20109	31020109	5	9	10	Black	Login required
430 91001	31020110	5	10	10	Black	Login required
310 20111	31020111	5	11	10	Black	Login required
430 91201	31020112	5	12	10	Black	Login required
310 20113	31020113	5	13	10	Black	Login required
310 20114	31020114	5	14	10	Black	Login required
310 20115	31020115	5	15	10	Black	Login required
310 20116	31020116	5	16	10	Black	Login required
Code number	Supplier	Pitch (mm)	Number of poles	Max. current (A)	Color	Stock	Price ( ExVAT )
310 20117	31020117	5	17	10	Black	Login required
310 20118	31020118	5	18	10	Black	Login required
310 20119	31020119	5	19	10	Black	Login required
310 20120	31020120	5	20	10	Black	Login required
