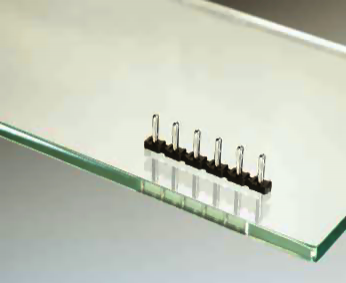

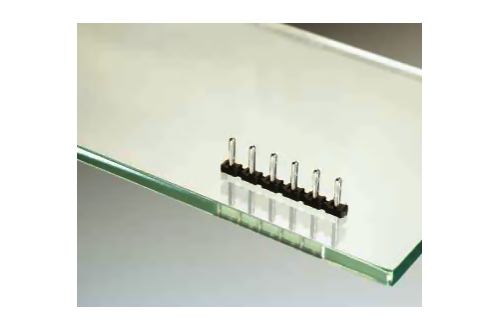

METZ CONNECT - Header PR015xxVBHC (Type 017)

Click to zoom

For illustration purpose only

Brand :	METZ CONNECT

Pin header, weldable, suitable for THR

5.00 mm pitch, vertical connection direction 0°.
Can be joined without loss of poles.
Colour black.
For connection with terminal block type 07.

Pin header, weldable, suitable for THR

5.00 mm pitch, vertical connection direction 0°.
Can be joined without loss of poles.
Colour black.
For connection with terminal block type 07.

Code number	Supplier	Pitch (mm)	Number of poles	Max. current (A)	Color	Stock	Price ( ExVAT )
430 70201	31017102	5	2	10	Black	Login required
430 70301	31017103	5	3	10	Black	Login required
430 70401	31017104	5	4	10	Black	Login required
430 70501	31017105	5	5	10	Black	Login required
430 70601	31017106	5	6	10	Black	Login required
310 17107	31017107	5	7	10	Black	Login required
430 70801	31017108	5	8	10	Black	Login required
310 17109	31017109	5	9	10	Black	Login required
430 71001	31017110	5	10	10	Black	Login required
310 17111	31017111	5	11	10	Black	Login required
430 71201	31017112	5	12	10	Black	Login required
310 17113	31017113	5	13	10	Black	Login required
310 17114	31017114	5	14	10	Black	Login required
310 17115	31017115	5	15	10	Black	Login required
430 71601	31017116	5	16	10	Black	Login required
Code number	Supplier	Pitch (mm)	Number of poles	Max. current (A)	Color	Stock	Price ( ExVAT )
310 17117	31017117	5	17	10	Black	Login required
310 17118	31017118	5	18	10	Black	Login required
310 17119	31017119	5	19	10	Black	Login required
310 17120	31017120	5	20	10	Black	Login required
310 17121	31017121	5	21	10	Black	Login required
310 17122	31017122	5	22	10	Black	Login required
310 17123	31017123	5	23	10	Black	Login required
310 17124	31017124	5	24	10	Black	Login required
