| ESD_safe |  |
|---|---|
| Cleanroom |  |
| Code number : | 730 01770 |
| Color : | Black |

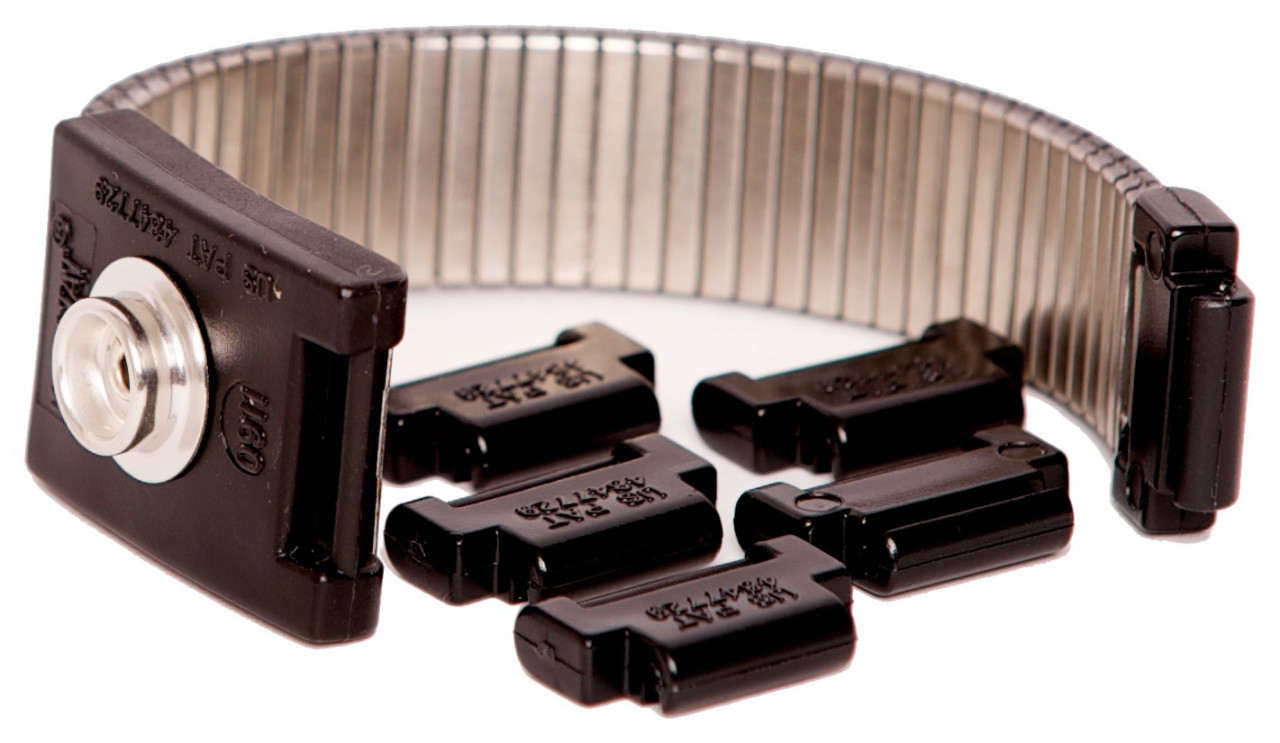

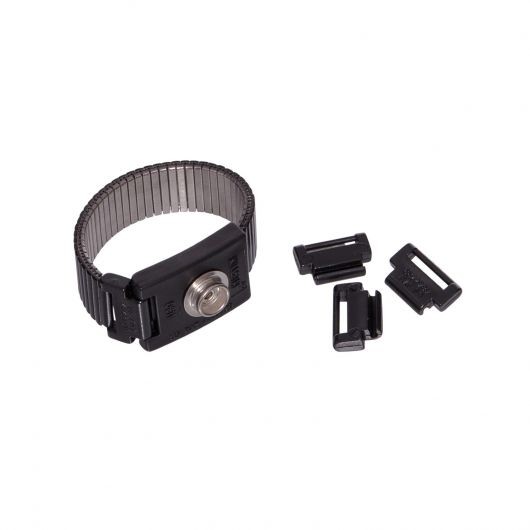

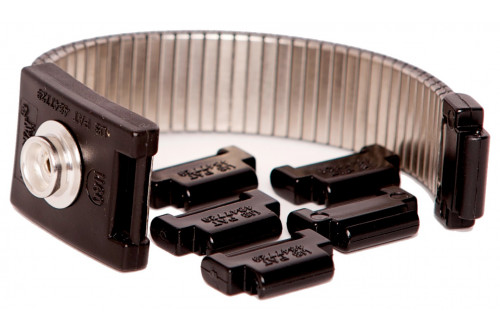

Made from hypo-allergenic jewellery grade stainless-steel. 10mm stud.
Size adjustment is made by adding or removing anti static links.
Construction, coating and strip material
Constructed using a stainless steel metal band material, with plastic insulation.
The outer surface is insulating while the inner surface is conductive.
This tape is suitable for both EPA and cleanroom use.
Electrical properties
Outside surface of the belt: isolated at 500 V
Inner surface of the tape: 150 ohms per inch maximum
Resistance at the terminals of the snap-in: The snap-in must be in good electrical contact with the inner layer of the strip.
Breaking force
1 to 5 lb A pulling force is required to disconnect the snap-in in the normal disconnect direction.
Termination
Metal band assembled with ergoclean buckles and extensions and a male snap fastener available in 10mm.
Dimension
Total length of 155mm available for adjustment, with 5 mobile extensions. The inner circumference must be minumum 145 mm, each extension adds 10 mm to the circumference up to max. of 190mm.
Equipment
All metal parts must show no signs of corrosion or rust after a 24-hour immersion in saline solution. Preferably made of stainless steel or nickel-plated brass alloy.
Plastic parts
Made of static dissipative material.
