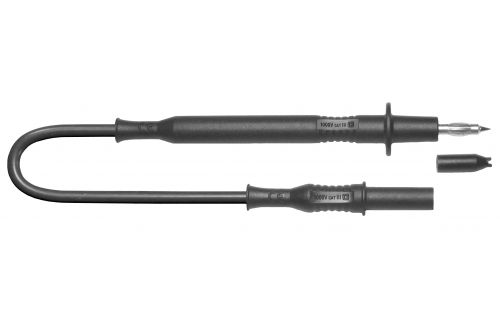

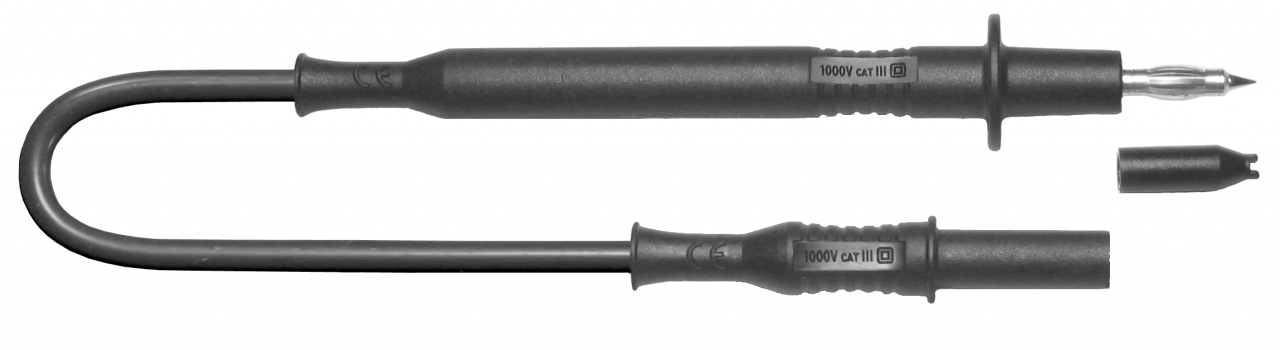

ELECTRO PJP - Testing patchcords PTM/MS 1000V

ELECTRO PJP - Testing patchcords PTM/MS 1000V

Click to zoom

For illustration purpose only

ELECTRO PJP - Testing patchcords PTM/MS 1000V

Brand :	ELECTRO PJP

Reinforced insulation. Max voltage: 1000V.

1000 V CAT II

Reinforced insulation. Max voltage: 1000V.

1000 V CAT II

Code number	Supplier	Material	Temperature	Section (mm²)	Max. current (A)	Length (m)	ø (mm)	Color	Stock	Price ( ExVAT )
385 01180	4310-D4-IEC-100N 152078	PVC	-20 / +80	0,75	12	1	4	Black	Login required
385 01182	4310-D4-IEC-100R 152082	PVC	-20 / +80	0,75	12	1	4	Red	Login required
385 01190	4310-D4-IEC-150N 152081	PVC	-20 / +80	0,75	12	1,5	4	Black	Login required
385 01192	4310-D4-IEC-150R 152083	PVC	-20 / +80	0,75	12	1,5	4	Red	Login required
385 35100	4312-D4-IEC-100N 152328	PVC	-20 / +80	1	20	1	4	Black	Login required
385 35102	4312-D4-IEC-100R 152351	PVC	-20 / +80	1	20	1	4	Red	Login required
385 35110	4312-D4-IEC-150N 152352	PVC	-20 / +80	1	20	1,5	4	Black	Login required
385 35112	4312-D4-IEC-150R 152353	PVC	-20 / +80	1	20	1,5	4	Red	Login required
385 01240	4315-D4-IEC-100N 152748	PVC	-20 / +80	1,5	25	1	4	Black	Login required
385 01242	4315-D4-IEC-100R 152749	PVC	-20 / +80	1,5	25	1	4	Red	Login required
385 01250	4315-D4-IEC-150N 152746	PVC	-20 / +80	1,5	25	1,5	4	Black	Login required
385 01252	4315-D4-IEC-150R 152747	PVC	-20 / +80	1,5	25	1,5	4	Red	Login required
385 01260	4317-D4-IEC-100N 152750	PVC	-20 / +80	2,5	36	1	4	Black	Login required
385 01262	4317-D4-IEC-100R 152751	PVC	-20 / +80	2,5	36	1	4	Red	Login required
385 01270	4317-D4-IEC-150N 152752	PVC	-20 / +80	2,5	36	1,5	4	Black	Login required
Code number	Supplier	Material	Temperature	Section (mm²)	Max. current (A)	Length (m)	ø (mm)	Color	Stock	Price ( ExVAT )
385 01272	4317-D4-IEC-150R 152753	PVC	-20 / +80	2,5	36	1,5	4	Red	Login required
