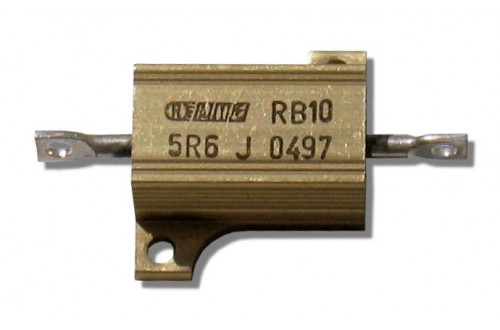

ATE - Resistors RB10

Click to zoom

For illustration purpose only

Brand :	ATE

Fixed power wirewound resistors aluminium housed.

Nominal power: 12W
Max power without heatsink: 6W
V limit: 265V
Temp. rise with heatsink: 5,1°C/W
Weight: 6Gr
Heatsink dim.: 10 x 11 x 19mm

Fixed power wirewound resistors aluminium housed.

Nominal power: 12W
Max power without heatsink: 6W
V limit: 265V
Temp. rise with heatsink: 5,1°C/W
Weight: 6Gr
Heatsink dim.: 10 x 11 x 19mm

Code number	Supplier	Resistance (ohm)	Resistance (kohm)	Tolerance +-(%)	Rated power (W)	Max voltage (V)	Weight (g)	Stock	Price ( ExVAT )
107 22710	RB10 - R010 5%	0,01		5	12	265	6	Login required
107 22711	RB10 - R011 5%	0,011		5	12	265	6	Login required
107 22712	RB10 - R012 5%	0,012		5	12	265	6	Login required
107 22713	RB10 - R013 5%	0,013		5	12	265	6	Login required
107 22715	RB10 - R015 5%	0,015		5	12	265	6	Login required
107 22716	RB10 - R016 5%	0,016		5	12	265	6	Login required
107 22718	RB10 - R018 5%	0,018		5	12	265	6	Login required
107 22720	RB10 - R020 5%	0,02		5	12	265	6	Login required
107 22722	RB10 - R022 5%	0,022		5	12	265	6	Login required
107 22724	RB10 - R024 5%	0,024		5	12	265	6	Login required
107 22727	RB10 - R027 5%	0,027		5	12	265	6	Login required
107 22730	RB10 - R030 5%	0,03		5	12	265	6	Login required
107 22733	RB10 - R033 5%	0,033		5	12	265	6	Login required
107 22736	RB10 - R036 5%	0,036		5	12	265	6	Login required
107 22739	RB10 - R039 5%	0,039		5	12	265	6	Login required
Code number	Supplier	Resistance (ohm)	Resistance (kohm)	Tolerance +-(%)	Rated power (W)	Max voltage (V)	Weight (g)	Stock	Price ( ExVAT )
107 22743	RB10 - R043 5%	0,043		5	12	265	6	Login required
107 22747	RB10 - R047 5%	0,047		5	12	265	6	Login required
107 22751	RB10 - R051 5%	0,051		5	12	265	6	Login required
107 22756	RB10 - R056 5%	0,056		5	12	265	6	Login required
107 22762	RB10 - R062 5%	0,062		5	12	265	6	Login required
107 22768	RB10 - R068 5%	0,068		5	12	265	6	Login required
107 22775	RB10 - R075 5%	0,075		5	12	265	6	Login required
107 22782	RB10 - R082 5%	0,082		5	12	265	6	Login required
107 22791	RB10 - R091 5%	0,091		5	12	265	6	Login required
107 22810	RB10 - R10 5%	0,1		5	12	265	6	Login required
107 22811	RB10 - R11 5%	0,11		5	12	265	6	Login required
107 22812	RB10 - R12 5%	0,12		5	12	265	6	Login required
107 22813	RB10 - R13 5%	0,13		5	12	265	6	Login required
107 22815	RB10 - R15 5%	0,15		5	12	265	6	Login required
107 22816	RB10 - R16 5%	0,16		5	12	265	6	Login required
Code number	Supplier	Resistance (ohm)	Resistance (kohm)	Tolerance +-(%)	Rated power (W)	Max voltage (V)	Weight (g)	Stock	Price ( ExVAT )
107 22818	RB10 - R18 5%	0,18		5	12	265	6	Login required
107 22820	RB10 - R20 5%	0,2		5	12	265	6	Login required
107 22822	RB10 - R22 5%	0,22		5	12	265	6	Login required
107 22824	RB10 - R24 5%	0,24		5	12	265	6	Login required
107 22827	RB10 - R27 5%	0,27		5	12	265	6	Login required
107 22830	RB10 - R30 5%	0,3		5	12	265	6	Login required
107 22833	RB10 - R33 5%	0,33		5	12	265	6	Login required
107 22836	RB10 - R36 5%	0,36		5	12	265	6	Login required
107 22839	RB10 - R39 5%	0,39		5	12	265	6	Login required
107 22843	RB10 - R43 5%	0,43		5	12	265	6	Login required
107 22847	RB10 - R47 5%	0,47		5	12	265	6	Login required
107 22851	RB10 - R51 5%	0,51		5	12	265	6	Login required
107 22856	RB10 - R56 5%	0,56		5	12	265	6	Login required
107 22862	RB10 - R62 5%	0,62		5	12	265	6	Login required
107 22868	RB10 - R68 5%	0,68		5	12	265	6	Login required
Code number	Supplier	Resistance (ohm)	Resistance (kohm)	Tolerance +-(%)	Rated power (W)	Max voltage (V)	Weight (g)	Stock	Price ( ExVAT )
107 22875	RB10 - R75 5%	0,75		5	12	265	6	Login required
107 22882	RB10 - R82 5%	0,82		5	12	265	6	Login required
107 22891	RB10 - R91 5%	0,91		5	12	265	6	Login required
107 22910	RB10 - 1R0 5%	1		5	12	265	6	Login required
107 22911	RB10 - 1R1 5%	1,1		5	12	265	6	Login required
107 22912	RB10 - 1R2 5%	1,2		5	12	265	6	Login required
107 22913	RB10 - 1R3 5%	1,3		5	12	265	6	Login required
107 22915	RB10 - 1R5 5%	1,5		5	12	265	6	Login required
107 22916	RB10 - 1R6 5%	1,6		5	12	265	6	Login required
107 22918	RB10 - 1R8 5%	1,8		5	12	265	6	Login required
107 22920	RB10 - 2R0 5%	2		5	12	265	6	Login required
107 22922	RB10 - 2R2 5%	2,2		5	12	265	6	Login required
107 22924	RB10 - 2R4 5%	2,4		5	12	265	6	Login required
107 22927	RB10 - 2R7 5%	2,7		5	12	265	6	Login required
107 22930	RB10 - 3R0 5%	3		5	12	265	6	Login required
Code number	Supplier	Resistance (ohm)	Resistance (kohm)	Tolerance +-(%)	Rated power (W)	Max voltage (V)	Weight (g)	Stock	Price ( ExVAT )
107 22933	RB10 - 3R3 5%	3,3		5	12	265	6	Login required
107 22936	RB10 - 3R6 5%	3,6		5	12	265	6	Login required
107 22939	RB10 - 3R9 5%	3,9		5	12	265	6	Login required
107 22943	RB10 - 4R3 5%	4,3		5	12	265	6	Login required
107 22947	RB10 - 4R7 5%	4,7		5	12	265	6	Login required
107 22951	RB10 - 5R1 5%	5,1		5	12	265	6	Login required
107 22956	RB10 - 5R6 5%	5,6		5	12	265	6	Login required
107 22962	RB10 - 6R2 5%	6,2		5	12	265	6	Login required
107 22968	RB10 - 6R8 5%	6,8		5	12	265	6	Login required
107 22975	RB10 - 7R5 5%	7,5		5	12	265	6	Login required
107 22982	RB10 - 8R2 5%	8,2		5	12	265	6	Login required
107 22991	RB10 - 9R1 5%	9,1		5	12	265	6	Login required
107 22010	RB10 - 10R 5%	10		5	12	265	6	Login required
107 22011	RB10 - 11R 5%	11		5	12	265	6	Login required
107 22012	RB10 - 12R 5%	12		5	12	265	6	Login required
Code number	Supplier	Resistance (ohm)	Resistance (kohm)	Tolerance +-(%)	Rated power (W)	Max voltage (V)	Weight (g)	Stock	Price ( ExVAT )
107 22013	RB10 - 13R 5%	13		5	12	265	6	Login required
107 22015	RB10 - 15R 5%	15		5	12	265	6	Login required
107 22016	RB10 - 16R 5%	16		5	12	265	6	Login required
107 22018	RB10 - 18R 5%	18		5	12	265	6	Login required
107 22020	RB10 - 20R 5%	20		5	12	265	6	Login required
107 22022	RB10 - 22R 5%	22		5	12	265	6	Login required
107 22024	RB10 - 24R 5%	24		5	12	265	6	Login required
107 22027	RB10 - 27R 5%	27		5	12	265	6	Login required
107 22030	RB10 - 30R 5%	30		5	12	265	6	Login required
107 22033	RB10 - 33R 5%	33		5	12	265	6	Login required
107 22036	RB10 - 36R 5%	36		5	12	265	6	Login required
107 22039	RB10 - 39R 5%	39		5	12	265	6	Login required
107 22043	RB10 - 43R 5%	43		5	12	265	6	Login required
107 22047	RB10 - 47R 5%	47		5	12	265	6	Login required
107 22051	RB10 - 51R 5%	51		5	12	265	6	Login required
Code number	Supplier	Resistance (ohm)	Resistance (kohm)	Tolerance +-(%)	Rated power (W)	Max voltage (V)	Weight (g)	Stock	Price ( ExVAT )
107 22056	RB10 - 56R 5%	56		5	12	265	6	Login required
107 22062	RB10 - 62R 5%	62		5	12	265	6	Login required
107 22068	RB10 - 68R 5%	68		5	12	265	6	Login required
107 22075	RB10 - 75R 5%	75		5	12	265	6	Login required
107 22082	RB10 - 82R 5%	82		5	12	265	6	Login required
107 22091	RB10 - 91R 5%	91		5	12	265	6	Login required
107 22110	RB10 - 100R 5%	100		5	12	265	6	Login required
107 22111	RB10 - 110R 5%	110		5	12	265	6	Login required
107 22112	RB10 - 120R 5%	120		5	12	265	6	Login required
107 22113	RB10 - 130R 5%	130		5	12	265	6	Login required
107 22115	RB10 - 150R 5%	150		5	12	265	6	Login required
107 22116	RB10 - 160R 5%	160		5	12	265	6	Login required
107 22118	RB10 - 180R 5%	180		5	12	265	6	Login required
107 22120	RB10 - 200R 5%	200		5	12	265	6	Login required
107 22122	RB10 - 220R 5%	220		5	12	265	6	Login required
Code number	Supplier	Resistance (ohm)	Resistance (kohm)	Tolerance +-(%)	Rated power (W)	Max voltage (V)	Weight (g)	Stock	Price ( ExVAT )
107 22124	RB10 - 240R 5%	240		5	12	265	6	Login required
107 22127	RB10 - 270R 5%	270		5	12	265	6	Login required
107 22130	RB10 - 300R 5%	300		5	12	265	6	Login required
107 22133	RB10 - 330R 5%	330		5	12	265	6	Login required
107 22136	RB10 - 360R 5%	360		5	12	265	6	Login required
107 22139	RB10 - 390R 5%	390		5	12	265	6	Login required
107 22143	RB10 - 430R 5%	430		5	12	265	6	Login required
107 22147	RB10 - 470R 5%	470		5	12	265	6	Login required
107 22151	RB10 - 510R 5%	510		5	12	265	6	Login required
107 22156	RB10 - 560R 5%	560		5	12	265	6	Login required
107 22162	RB10 - 620R 5%	620		5	12	265	6	Login required
107 22168	RB10 - 680R 5%	680		5	12	265	6	Login required
107 22175	RB10 - 750R 5%	750		5	12	265	6	Login required
107 22182	RB10 - 820R 5%	820		5	12	265	6	Login required
107 22191	RB10 - 910R 5%	910		5	12	265	6	Login required
Code number	Supplier	Resistance (ohm)	Resistance (kohm)	Tolerance +-(%)	Rated power (W)	Max voltage (V)	Weight (g)	Stock	Price ( ExVAT )
107 22210	RB10 - 1K0 5%		1	5	12	265	6	Login required
107 22211	RB10 - 1K1 5%		1,1	5	12	265	6	Login required
107 22212	RB10 - 1K2 5%		1,2	5	12	265	6	Login required
107 22213	RB10 - 1K3 5%		1,3	5	12	265	6	Login required
107 22215	RB10 - 1K5 5%		1,5	5	12	265	6	Login required
107 22216	RB10 - 1K6 5%		1,6	5	12	265	6	Login required
107 22218	RB10 - 1K8 5%		1,8	5	12	265	6	Login required
107 22220	RB10 - 2K0 5%		2	5	12	265	6	Login required
107 22222	RB10 - 2K2 5%		2,2	5	12	265	6	Login required
107 22224	RB10 - 2K4 5%		2,4	5	12	265	6	Login required
107 22227	RB10 - 2K7 5%		2,7	5	12	265	6	Login required
107 22230	RB10 - 3K0 5%		3	5	12	265	6	Login required
107 22233	RB10 - 3K3 5%		3,3	5	12	265	6	Login required
107 22236	RB10 - 3K6 5%		3,6	5	12	265	6	Login required
107 22239	RB10 - 3K9 5%		3,9	5	12	265	6	Login required
Code number	Supplier	Resistance (ohm)	Resistance (kohm)	Tolerance +-(%)	Rated power (W)	Max voltage (V)	Weight (g)	Stock	Price ( ExVAT )
107 22243	RB10 - 4K3 5%		4,3	5	12	265	6	Login required
107 22247	RB10 - 4K7 5%		4,7	5	12	265	6	Login required
107 22251	RB10 - 5K1 5%		5,1	5	12	265	6	Login required
107 22256	RB10 - 5K6 5%		5,6	5	12	265	6	Login required
107 22262	RB10 - 6K2 5%		6,2	5	12	265	6	Login required
107 22268	RB10 - 6K8 5%		6,8	5	12	265	6	Login required
107 22275	RB10 - 7K5 5%		7,5	5	12	265	6	Login required
107 22282	RB10 - 8K2 5%		8,2	5	12	265	6	Login required
107 22291	RB10 - 9K1 5%		9,1	5	12	265	6	Login required
107 22310	RB10 - 10K 5%		10	5	12	265	6	Login required
107 22311	RB10 - 11K 5%		11	5	12	265	6	Login required
107 22312	RB10 - 12K 5%		12	5	12	265	6	Login required
