BERNSTEIN - Spannfix 9-205-ESD-SET1

ESD ball joint vice (clamping) dissipative + earth bonding point + cable

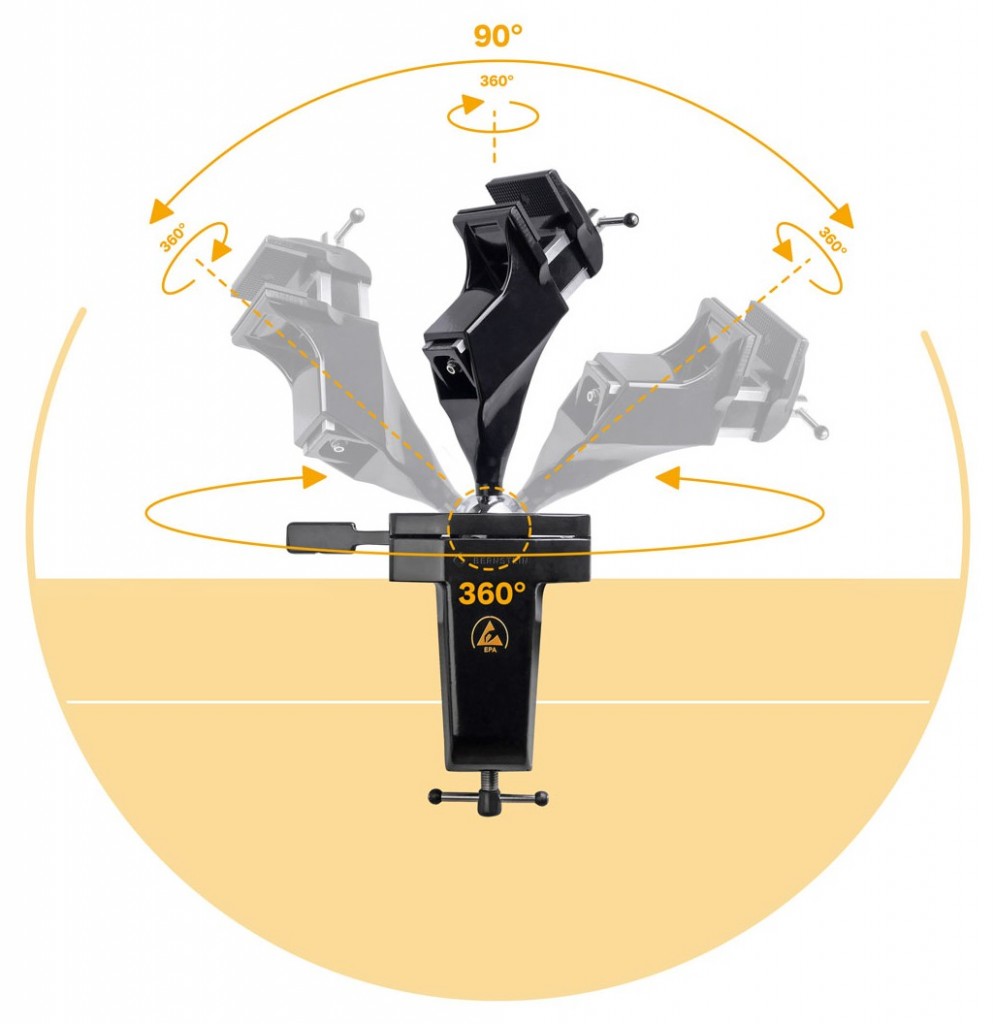

• Precision ball joint rotatable 360°, steplessly lockable quick release.
• For clamping to the workbench (table thickness max 80mm).
• 50 mm ESD plastic jaws with grip.
• Clamping width 70 mm, clamping depth 38 mm, clamping pressure 1470 N.
• Inclination angle +/- 45°.
• Spare parts: jaws , article 9-900-E50-ESD (pair).
• Cast aluminum with black ESD powder coating, dissipative 10^7 to 10^8 ohm.
• Dimensions approx. 310 x 170 x 75 mm.
• Weight 1550 g

Area of application

A slight lever pressure is sufficient to align the clamped workpiece steplessly into any reasonable working position.
The individual adjustment of the working height provides an ergonomic posture for working while standing (e.g. drilling, sawing, grinding, milling, cutting, etc.).
The interchangeable jaws of the ball joint vices are 50 mm plastic jaws for the small vise and 100 mm steel jaws for the large vise.
Protective jaws for clamping sensitive workpieces to avoid scratches we offer in felt, leather, cork and rubber coating.
Vise jaws with prisms made of aluminum are suitable for clamping pipes, all vise jaws are available in jaw widths from 50 - 150 mm.
The vice fastening for clamping is suitable for workbenches with a maximum table thickness of up to 80 mm.
The screw-on vice fastening can be connected to workbenches, tables and base plates via the four 9 mm through holes.
The high-performance magnets offer individual fastening that can also be changed quickly.

Content

ESD handling set consists of:

9-205 ESD ball joint vice SPANNFIX for clamping, dissipative
9-359-2 ESD earth bonding plug 2x10 mm and M5 socket
9-343-1 ESD grounding cable 1 MOhm, 1800 mm 2 press-studs 10/10 mm
