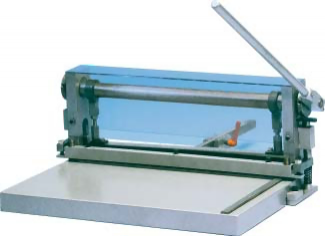

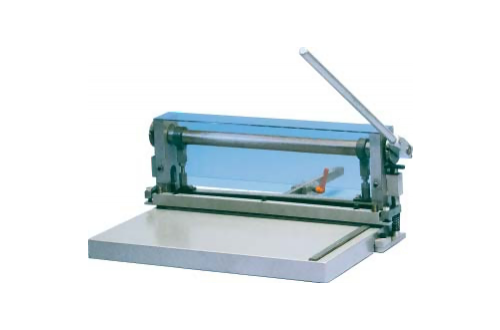

BUNGARD - Board cutter NE-CUT

BUNGARD - Board cutter NE-CUT

Click to zoom

For illustration purpose only

Brand : BUNGARD
Code number : 580 14000
Supplier : 30000
Model : NE-CUT
Dimensions : 74 x 29 x 45 cm
Weight : 66 kg

User manual

Ne-Cut was developed for cutting of PCBs (0-3 mm), Aluminium (0-2mm), steel (0-1 mm), plastics (0-5 mm) and even films and artworks.
Features:

  • Cutting width max. 530 mm.
  • Two knifes made of hardened and ground steel.
  • Spring loaded built-in clamping unit in the front.
  • Transparent cover hood for user safety and visual control.
  • Metric edge scales in the front.
  • Fully adjustable back stop with metric scale for batch work (0...300 mm).
  • Smallest cutting size (front) 45 mm.
  • Durable full steel construction.
  • All important parts angular adjustable.
  • Simple exchange of blades.
  • Adjustable cutting angle.
  • Adjustable clearance.


Technical data:

  • Sizes (L x H x D): 74 cm x 29 cm x 45 cm.
  • Weight: 66 kg.

Add-ons

  • Set of spare blades.
