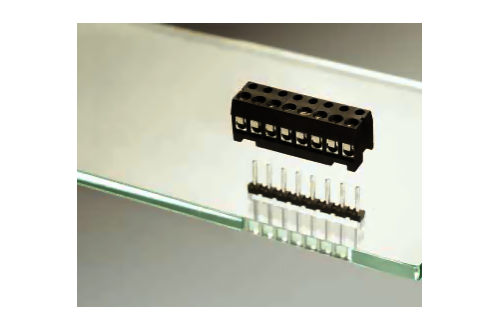

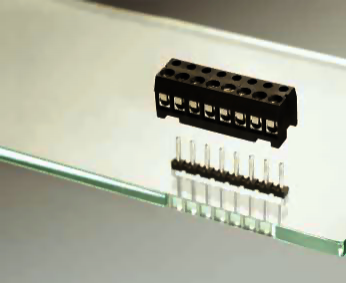

METZ CONNECT - Terminal block RP023xxHBWC (Type 166)

Click to zoom

For illustration purpose only

Brand : METZ CONNECT
  • Screw type terminal block, pluggable
  • Centerline 3.50 mm, direction of connection 90°.
  • Wire protector, fittable without loss of poles.
  • Color black.
  • Wire entry perpendicular to plug direction.
  • Headers: types 224.
Code numberSupplier Pitch Nombre de pôles Max. current Monobrin Multibrin Color Marquage StockPrice ( ExVAT )
311 66102 31166102 3,50 mm 2 6A 1,00 mm 0,08 mm Black Validate
311 66102 09 31166102 09 3,50 mm 2 6A 1,00 mm 0,08 mm Black Validate Validate
311 66103 31166103 3,50 mm 3 6A 1,00 mm 0,08 mm Black Validate
311 66104 31166104 3,50 mm 4 6A 1,00 mm 0,08 mm Black Validate
311 66104 09 31166104 09 3,50 mm 4 6A 1,00 mm 0,08 mm Black Validate Validate
311 66105 31166105 3,50 mm 5 6A 1,00 mm 0,08 mm Black Validate
311 66105 09 31166105 09 3,50 mm 5 6A 1,00 mm 0,08 mm Black Validate Validate
311 66106 31166106 3,50 mm 6 6A 1,00 mm 0,08 mm Black Validate
311 66106 09 31166106 09 3,50 mm 6 6A 1,00 mm 0,08 mm Black Validate Validate
311 66107 31166107 3,50 mm 7 6A 1,00 mm 0,08 mm Black Validate
311 66107 09 31166107-09 3,50 mm 7 6A 1,00 mm 0,08 mm Black Validate Validate
311 66108 31166108 3,50 mm 8 6A 1,00 mm 0,08 mm Black Validate
311 66109 31166109 3,50 mm 9 6A 1,00 mm 0,08 mm Black Validate
311 66109 09 31166109 09 3,50 mm 9 6A 1,00 mm 0,08 mm Black Validate Validate
311 66110 31166110 3,50 mm 10 6A 1,00 mm 0,08 mm Black Validate
Code numberSupplier Pitch Nombre de pôles Max. current Monobrin Multibrin Color Marquage StockPrice ( ExVAT )
311 66111 31166111 3,50 mm 11 6A 1,00 mm 0,08 mm Black Validate
311 66112 31166112 3,50 mm 12 6A 1,00 mm 0,08 mm Black Validate
311 66113 31166113 3,50 mm 13 6A 1,00 mm 0,08 mm Black Validate
311 66114 31166114 3,50 mm 14 6A 1,00 mm 0,08 mm Black Validate
311 66114 09 3116611409 3,50 mm 14 6A 1,00 mm 0,08 mm Black Validate Validate
311 66115 31166115 3,50 mm 15 6A 1,00 mm 0,08 mm Black Validate
311 66116 31166116 3,50 mm 16 6A 1,00 mm 0,08 mm Black Validate
311 66117 31166117 3,50 mm 17 6A 1,00 mm 0,08 mm Black Validate
311 66118 31166118 3,50 mm 18 6A 1,00 mm 0,08 mm Black Validate
311 66119 31166119 3,50 mm 19 6A 1,00 mm 0,08 mm Black Validate
311 66120 31166120 3,50 mm 20 6A 1,00 mm 0,08 mm Black Validate
311 66121 31166121 3,50 mm 21 6A 1,00 mm 0,08 mm Black Validate
311 66122 31166122 3,50 mm 22 6A 1,00 mm 0,08 mm Black Validate
311 66123 31166123 3,50 mm 23 6A 1,00 mm 0,08 mm Black Validate
311 66124 31166124 3,50 mm 24 6A 1,00 mm 0,08 mm Black Validate
