WELLER - Soldering iron Pyropen piezo

Click to zoom

For illustration purpose only

Brand : WELLER
EAN code : 4003019010066
Code number : 810 16059
Supplier : T0051605999
Model : Pyropen piezo

Gas soldering iron, ideal for outdoor work.

  • Manual ignition
  • Compared with 20 - 80 Watt electrical
  • One filling lasts ~ 2 hours / capacity 28 ml
  • Temperature range soldering: 350°C - 500°C ; hot air: ~ 650°C

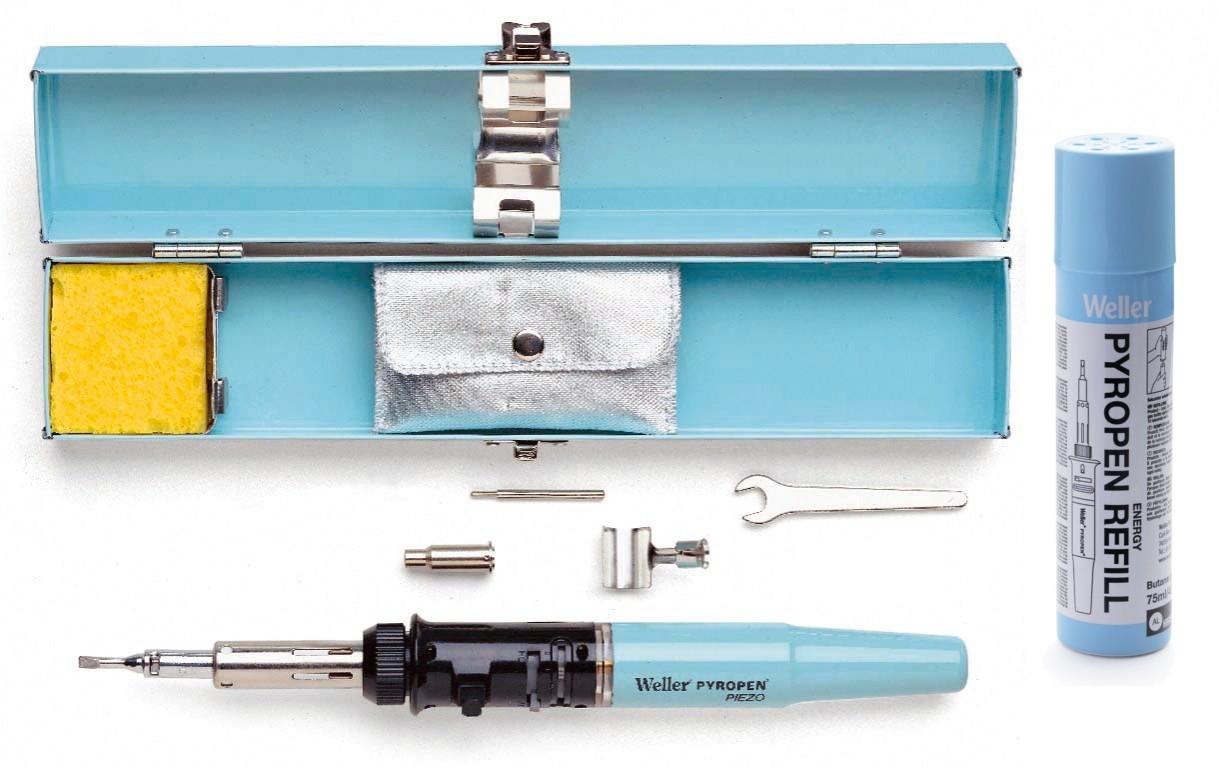

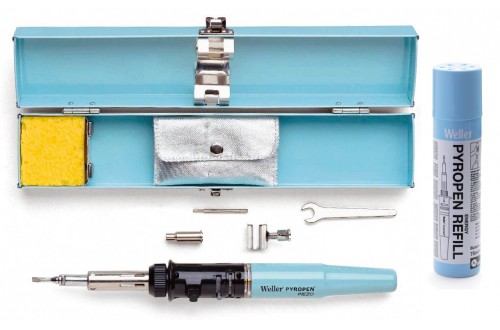

Contains:

  • Soldering iron
  • Metal box
  • Soldering tip 3 mm (01/02/1970)
  • Gas refill 75ml RB-TS
  • Accessories
  • Hot-air-tube ø 4.9 mm

RB-TS PYROPEN REFILL CAN 75ml :

RB-TS PYROPEN REFILL CAN 75ml

Combustible gas for soldering equipment and lighters.

  • Lighter adapters included.
Consist of
Code number Description
1x 810 16121 70 01 02 PP-SOLDERING TIP CHISEL 3MM
1x 810 16142 70 01 52 PP-HOT AIR NOZZLE 4,9A5,7
1x 810 16159 70 01 55 HEAT SHRINK ATTACHMENT/SMALL
1x 810 16160 RB-TS PYROPEN REFILL CAN 75ml
1x 810 16156 PP-METAL BOX EMPTY
1x 810 16281 INCOMBUSTIBLE PART BAG

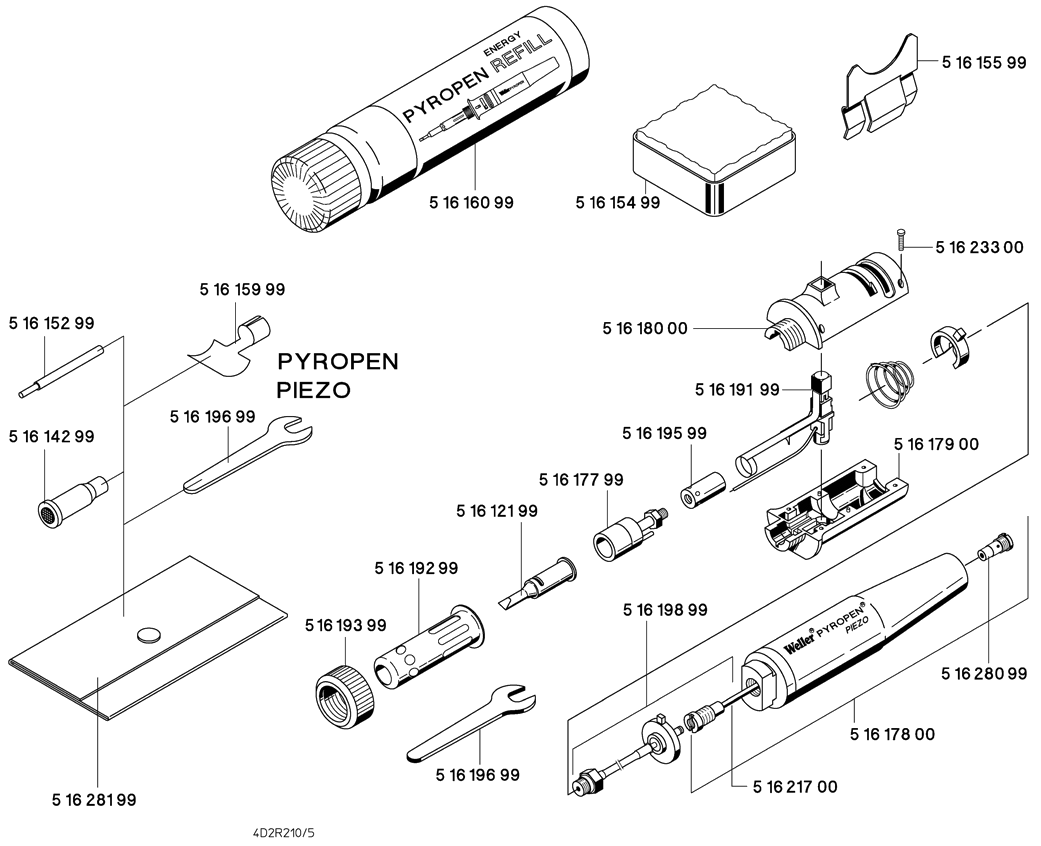

Code number Description
810 16121 70 01 02 PP-SOLDERING TIP CHISEL 3MM
810 16142 70 01 52 PP-HOT AIR NOZZLE 4,9A5,7
810 16154 PORTE-EPONGE
810 16159 70 01 55 HEAT SHRINK ATTACHMENT/SMALL
810 16160 RB-TS PYROPEN REFILL CAN 75ml
810 16177 BURNER UNIT PP-PIEZO 80-04U
810 16191 80 38U PIEZO UNIT PP-PIEZO
810 16192 80 03 TIP HOUSING PP-PIEZO
810 16193 80 14 KNURLED CAP NUT PP-PIEZO
810 16195 EJECTOR PP-PIEZO
810 16198 80 17U GAS VALVE UNIT PP-PIEZO
810 16217 70 17U GAS VALVE UNIT
810 16280 VALVE FOR PYROPEN/5,5MM
810 16281 INCOMBUSTIBLE PART BAG
810 16374 90 04U BURNER UNIT PIEZO 2
810 16377 90 17U GAS VALVE FOR PYROPEN PIEZO
810 16380 90 38U PIEZO UNIT
