Type USO

Click to zoom

For illustration purpose only

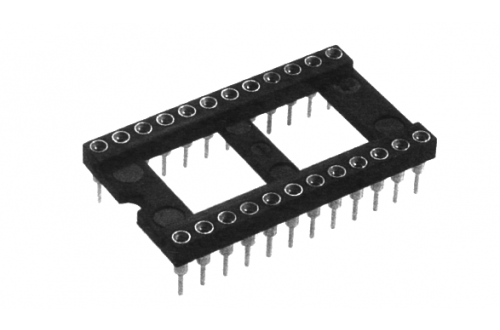

The most popular dual-in-line holder. The contact consists of two parts, a turned sleeve and an inner contact - the clip - made of BeCu, which can be obtained in different sizes and surface treatments.

Inner contact: 0.25 µm gold

Inner contact: 0.25 µm gold

Code number	Model	Number of contact	A (mm)	B (mm)	C (mm)	D (mm)	Stock
460 00218	USO-318-TF-A-30	18	22,86	10,16	7,62	2,36	Login required
460 00220	USO-320-TF-A-30	20	25,4	10,16	7,62	2,36	Login required
460 00224	USO-624-TF-A-30	24	30,48	17,78	15,24	2,36	Login required
460 00228	USO-628-TF-A-30	28	35,56	17,78	15,24	2,36	Login required
