BINDER - M12-A, metalen vergrendeling, schroefklem/soldeer

M12-A, duo connector, schroefklem, roestvrij
M12-A, kunststof vergrendeling, schroefklem
BINDER - M12-A, metalen vergrendeling, schroefklem/soldeer

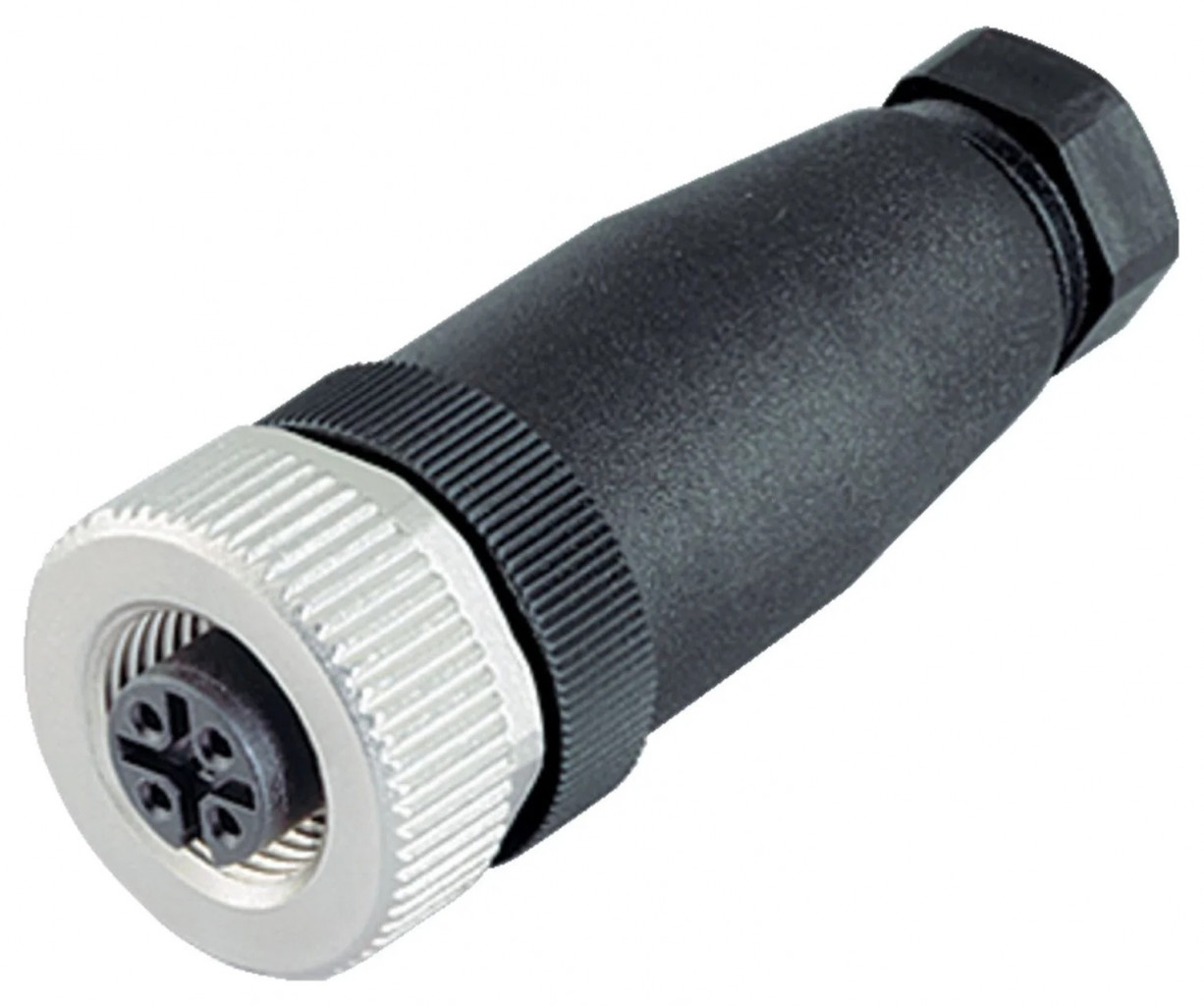

Klik om te vergroten

Dient slechts ter verduidelijking

Brandmerk : BINDER
CodenummerSupplier Type Beschermingsgraad Nominale spanning Max. stroom (A) Type vergrendeling Geslacht Min paringscycli Aantal polen Kabeluitgang Min. temperatuur (°C) Max. temperatuur (°C) Buitendiameter (mm) Beschermd Lengte (mm)StockPrijs ( ZBTW )
436 03367 99 0430 07 04 M12-A IP67 250 4,0 Screw Female 50 3 4,0 - 6,0 -40 85 20,2 Delete 54
436 03377 99 0430 158 04 M12-A IP67 250 4,0 Screw Female 50 3 6,0 - 8,0 -40 85 20,2 Delete 54
436 03394 99 0430 314 04 M12-A IP67 250 4,0 Screw Female 50 4 2,5 - 3,5 -40 85 20,2 Delete 54
436 03374 99 0430 14 04 M12-A IP67 250 4,0 Screw Female 50 4 4,0 - 6,0 -40 85 20,2 Delete 54
436 03372 99 0430 12 04 M12-A IP67 250 4,0 Screw Female 50 4 6,0 - 8,0 -40 85 20,2 Delete 54
436 03417 99 0436 14 05 M12-A IP67 60 4,0 Screw Female 50 5 4,0 - 6,0 -40 85 20,2 Delete 54
436 03415 99 0436 12 05 M12-A IP67 60 4,0 Screw Female 50 5 6,0 - 8,0 -40 85 20,2 Delete 54
436 03486 99 0486 12 08 M12-A IP67 30 2,0 Screw Female 100 8 6,0 - 8,0 -40 85 20,2 Delete 54
436 03492 99 0486 29 08 M12-A IP67 30 2,0 Screw Female 100 8 8,0 - 10,0 -40 85 20,2 Delete 54
436 03505 99 0492 12 12 M12-A IP67 30 1,5 Screw Female 100 12 6,0 - 8,0 -40 85 20,2 Delete 54
