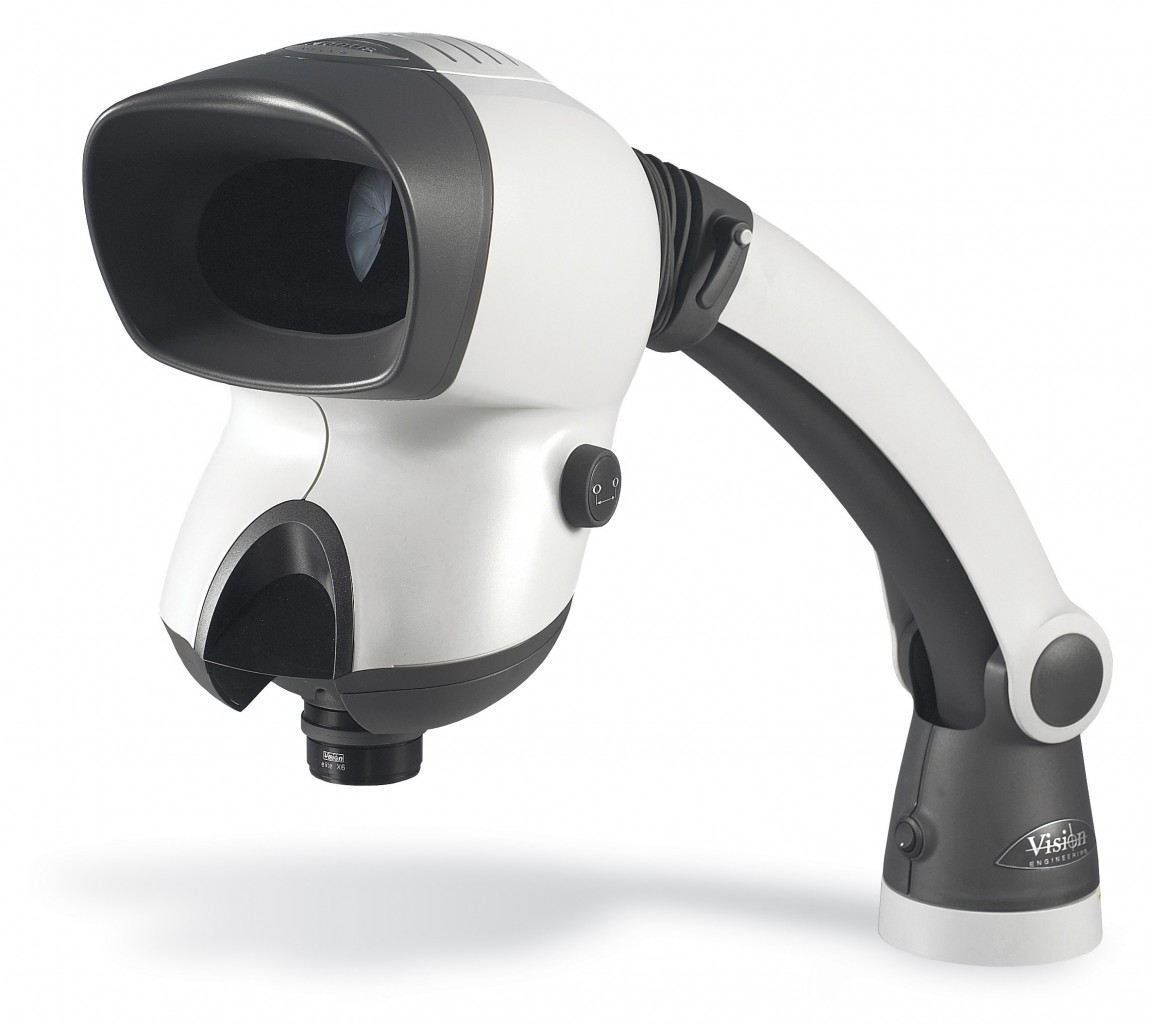

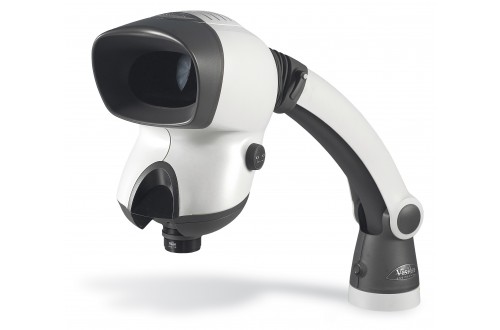

VISION ENGINEERING - Mantis Elite with universal arm

Click to zoom

For illustration purpose only

Brand :	VISION ENGINEERING
Code number :	870 00100
Supplier :	ME-UNI
:	100

Stock and price : Login required

Mantis Elite is a low-mid magnification stereo viewer, providing truly superb 3D imaging with unparalleled freedom of head movement. Featuring Vision Engineering's patented eyepieceless technology, Mantis Elite is the high performance stereo viewer of choice for a wide range of tasks requiring magnification.

Superb optical performance
x4 - x20 magnification options (2 in quick change turret)
Super large exit pupil for maximum head freedom
Extra large field of view
Long working distances
Cold, long-life, true colour LED illumination
Patented ultra-modern design

UNIVERSAL STAND FOR ELITE :

Articulated arm with mounting clamp.
A = 415mm (min) - 624mm (max)
B = 212mm
C = 593mm (min) - 802mm (max)
D = 83mm (min) - 292mm (max)
E = 352mm (min) - 622mm (max)

Stock and price : Login required

Consist of

	Code number	Supplier	Description
1x	870 01003	MEH-001	STEREO MICROSCOPE MANTIS ELITE MEH-001
1x	870 00405	MES-005	UNIVERSAL STAND FOR ELITE
1x	870 01053	MS-003	PROTECTIVE COVER FOR ARTICULATED ARM

Related products

Lenses for Mantis
Mantis accessories
Stands for Mantis

Lenses for Mantis

VISION ENGINEERING : Lenses for Mantis Elite

Code number	Supplier	Agrandissement	Working distance	Field of view		Weight (g)	Stock
870 00102	MEO-002	x2	96 mm				Login required
870 00104	MEO-004	x4	96 mm	34,0 mm	200	91	Login required
870 00106	MEO-006	x6	68 mm	23,0 mm	210	252	Login required
870 00106 01	MEO-006SL	x6	112 mm		220		Login required
870 00108	MEO-008	x8	59 mm	17,0 mm	230	374	Login required
870 00110	MEO-010	x10	54 mm	13,5 mm	240	441	Login required
870 00115	MEO-015	x15	40 mm	8,8 mm	250	452	Login required
870 00120	MEO-020	x20	29 mm	6,5 mm	260	611	Login required

Mantis accessories

VISION ENGINEERING : Head led array for Mantis Elite

Code number	Supplier		Description	Stock	Price ( ExVAT )
870 00151	MELED-001		Left side	Login required
870 00152	MELED-002		Right side	Login required

VISION ENGINEERING : Dust cover for Mantis with universal stand

Code number	Supplier	Model	Stock	Price ( ExVAT )
870 01053	MS-003	MS-003	Login required

VISION ENGINEERING : Power supply for Mantis 100-240v

Code number	Supplier	Stock	Price ( ExVAT )
870 01064	MPS-005	Login required

Stands for Mantis

VISION ENGINEERING : Universal stand for Mantis Elite

Articulated arm with mounting clamp.

Code number	Supplier	Model	Weight (g)	Stock	Price ( ExVAT )
870 00405	MES-005	MES-005	3250	Login required

VISION ENGINEERING : Articulated arm for Mantis Elite

Code number	Supplier	Model	Stock	Price ( ExVAT )
870 00401	MEF-001	MEF-001	Login required
