BINDER - M16 IP40 solder eye ring, shieldable

M16 IP40, cable clamp, crimp, shieldable
M16 IP40, cable clamp, shieldable
BINDER - M16 IP40 solder eye ring, shieldable

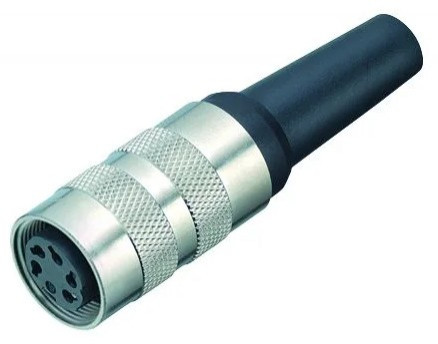

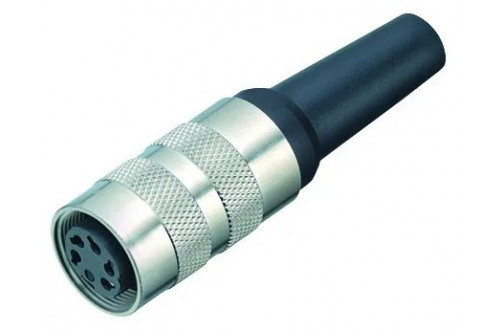

Click to zoom

For illustration purpose only

Brand : BINDER
Code numberSupplier Type Ingress Protection Rated voltage Max. current (A) Locking type Gender Min mating cycles Number of poles Cable outlet Minimum temperature (°C) Maximum temperature (°C) External diameter (mm) Shielded Contact plating Length (mm)StockPrice ( ExVAT )
436 03952 99 2002 00 02 M16 IP40 150 7 Screw Female 500 2 4 - 6 -40 85 18,5 o Ag 72
436 03953 99 2002 02 02 M16 IP40 150 7 Screw Female 500 2 6 - 8 -40 85 18,5 o Ag 72
436 03969 99 2006 00 03 M16 IP40 150 7 Screw Female 500 3 4 - 6 -40 85 18,5 o Ag 72
436 03970 99 2006 02 03 M16 IP40 150 7 Screw Female 500 3 6 - 8 -40 85 18,5 o Ag 72
436 03991 99 2010 00 04 M16 IP40 150 6 Screw Female 500 4 4 - 6 -40 85 18,5 o Ag 72
436 03992 99 2010 02 04 M16 IP40 150 6 Screw Female 500 4 6 - 8 -40 85 18,5 o Ag 72
436 04014 99 2014 00 05 M16 IP40 150 6 Screw Female 500 5 4 - 6 -40 85 18,5 o Ag 72
436 04015 99 2014 02 05 M16 IP40 150 6 Screw Female 500 5 6 - 8 -40 85 18,5 o Ag 72
436 04033 99 2018 00 05 M16 IP40 32 6 Screw Female 500 5 4 - 6 -40 85 18,5 o Ag 72
436 04034 99 2018 02 05 M16 IP40 32 6 Screw Female 500 5 6 - 8 -40 85 18,5 o Ag 72
436 04049 99 2022 00 06 M16 IP40 150 5 Screw Female 500 6 4 - 6 -40 85 18,5 o Ag 72
436 04050 99 2022 02 06 M16 IP40 150 5 Screw Female 500 6 6 - 8 -40 85 18,5 o Ag 72
436 04069 99 2026 00 07 M16 IP40 32 5 Screw Female 500 7 4 - 6 -40 85 18,5 o Ag 72
436 04070 99 2026 02 07 M16 IP40 32 5 Screw Female 500 7 6 - 8 -40 85 18,5 o Ag 72
436 04211 99 2582 00 07 M16 IP40 32 5 Screw Female 500 7 4 - 6 -40 85 18,5 o Ag 72
Code numberSupplier Type Ingress Protection Rated voltage Max. current (A) Locking type Gender Min mating cycles Number of poles Cable outlet Minimum temperature (°C) Maximum temperature (°C) External diameter (mm) Shielded Contact plating Length (mm)StockPrice ( ExVAT )
436 04127 99 2062 00 08 M16 IP40 32 5 Screw Female 500 8 4 - 6 -40 85 18,5 o Ag 72
436 04128 99 2062 02 08 M16 IP40 32 5 Screw Female 500 8 6 - 8 -40 85 18,5 o Ag 72
436 03954 99 2002 09 02 M16 IP40 150 7 Screw Female 500 2 4 - 6 -40 85 18,5 o Au 72
436 03959 99 2002 92 02 M16 IP40 150 7 Screw Female 500 2 6 - 8 -40 85 18,5 o Au 72
436 03971 99 2006 09 03 M16 IP40 150 7 Screw Female 500 3 4 - 6 -40 85 18,5 o Au 72
436 03978 99 2006 92 03 M16 IP40 150 7 Screw Female 500 3 6 - 8 -40 85 18,5 o Au 72
436 03993 99 2010 09 04 M16 IP40 150 6 Screw Female 500 4 4 - 6 -40 85 18,5 o Au 72
436 04001 99 2010 92 04 M16 IP40 150 6 Screw Female 500 4 6 - 8 -40 85 18,5 o Au 72
436 04016 99 2014 09 05 M16 IP40 150 6 Screw Female 500 5 4 - 6 -40 85 18,5 o Au 72
436 04026 99 2014 92 05 M16 IP40 150 6 Screw Female 500 5 6 - 8 -40 85 18,5 o Au 72
436 04035 99 2018 09 05 M16 IP40 32 6 Screw Female 500 5 4 - 6 -40 85 18,5 o Au 72
436 04038 99 2018 92 05 M16 IP40 32 6 Screw Female 500 5 6 - 8 -40 85 18,5 o Au 72
436 04051 99 2022 09 06 M16 IP40 150 5 Screw Female 500 6 4 - 6 -40 85 18,5 o Au 72
436 04058 99 2022 92 06 M16 IP40 150 5 Screw Female 500 6 6 - 8 -40 85 18,5 o Au 72
436 04071 99 2026 09 07 M16 IP40 32 5 Screw Female 500 7 4 - 6 -40 85 18,5 o Au 72
Code numberSupplier Type Ingress Protection Rated voltage Max. current (A) Locking type Gender Min mating cycles Number of poles Cable outlet Minimum temperature (°C) Maximum temperature (°C) External diameter (mm) Shielded Contact plating Length (mm)StockPrice ( ExVAT )
436 04078 99 2026 92 07 M16 IP40 32 5 Screw Female 500 7 6 - 8 -40 85 18,5 o Au 72
436 04129 99 2062 09 08 M16 IP40 32 5 Screw Female 500 8 4 - 6 -40 85 18,5 o Au 72
436 04136 99 2062 92 08 M16 IP40 32 5 Screw Female 500 8 6 - 8 -40 85 18,5 o Au 72
436 04084 99 2030 00 12 M16 IP40 32 3 Screw Female 500 12 4 - 6 -40 85 18,5 o Au 72
436 04085 99 2030 02 12 M16 IP40 32 3 Screw Female 500 12 6 - 8 -40 85 18,5 o Au 72
436 04093 99 2034 00 14 M16 IP40 32 3 Screw Female 500 14 4 - 6 -40 85 18,5 o Au 72
436 04094 99 2034 02 14 M16 IP40 32 3 Screw Female 500 14 6 - 8 -40 85 18,5 o Au 72
436 04101 99 2038 00 16 M16 IP40 32 3 Screw Female 500 16 4 - 6 -40 85 18,5 o Au 72
436 04102 99 2038 02 16 M16 IP40 32 3 Screw Female 500 16 6 - 8 -40 85 18,5 o Au 72
436 04109 99 2042 00 19 M16 IP40 32 3 Screw Female 500 19 4 - 6 -40 85 18,5 o Au 72
436 04110 99 2042 02 19 M16 IP40 32 3 Screw Female 500 19 6 - 8 -40 85 18,5 o Au 72
436 04115 99 2046 02 24 M16 IP40 32 1 Screw Female 500 24 6 - 8 -40 85 18,5 o Au 72
