ITECO - Conductive trolleys for NEWBOX

ITECO - Conductive trolleys for NEWBOX

Click to zoom

For illustration purpose only

ESD_safe ESD safe
Brand : ITECO

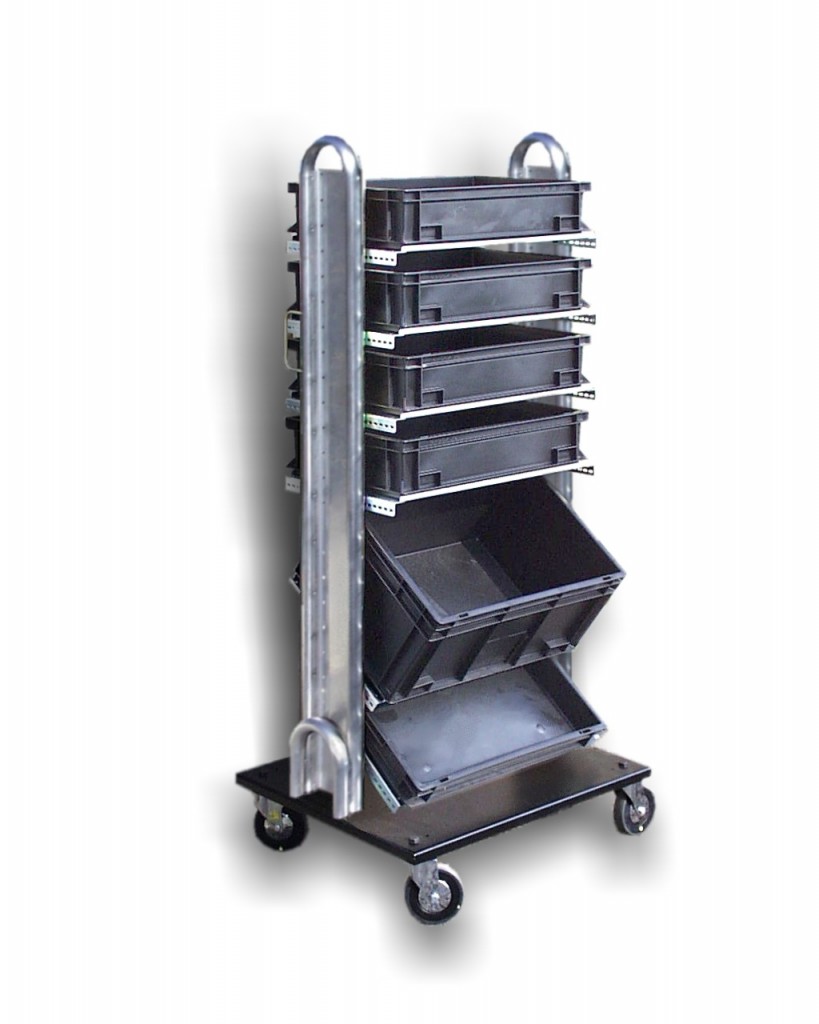

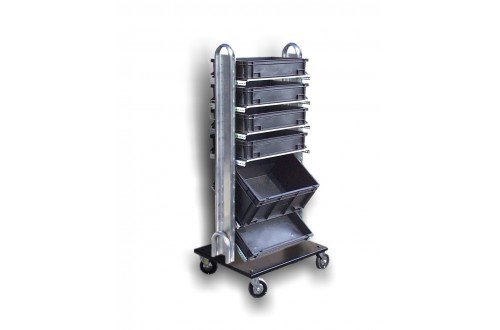

Conductive trolleys are ideal for efficient handling of NEWBOX tote boxes, circuit board carriers and other parts handling containers.

  • The basic unit consists of two lateral support post on a stable wide based assembly.
  • Steel shelves are adjustable in height, depth and tilt angle.
  • P370 shelf, without fittings, can accomodate one EURO 600x400 or two EURO 300x400mm boxes.
  • Load capacity: 250Kg (Load capacity for single shelf 50Kg).
Consist of
Code number Description
1x 758 81000 50 BASEPLATE 600x760 W. ESD CASTORS 125MM
6x 758 81000 65 CHARIOTTE SHELF P370 - 370 X 630MM
2x 758 81000 54 SINGLE LATERAL POST (20 BOLTS+SCREWS)
