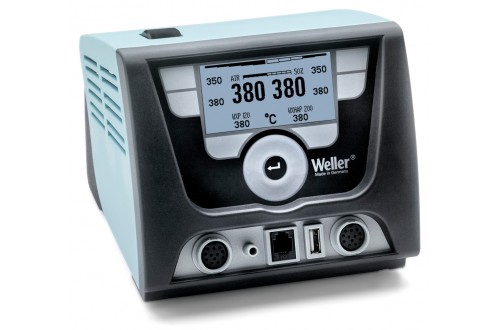

WELLER - Power unit WXA 2

Click to zoom

For illustration purpose only

ESD_safe
Brand :	WELLER
Code number :	810 34256
Supplier :	T0053425699N
Model :	WXA2
Channel count :	2
Hot air :
Built-in pump :
Minimum temperature (°C) :	100
Maximum temperature (°C) :	550
Power (W) :	255
Weight (kg) :	3,8

Digital Power, 200W (255W) / 230V.
Digital temperature control 100 ° C - 450°C (550 °C) (depending on the tool).

Very high capacity and fast heating time.
Using a tool up to 200W.
Robust capacitive touch screen.
Intuitive, turn and clicking enter key and guide fingers.
Multilingual menu.
Two connections that can be used to manage the units smoke extraction, warm plates and programmable logic controllers. (PLC)
Automatic recognition tools.
USB port for firmware updates, configuration settings and journalistic systems.
Intelligent tools, A / D converter and memory to handle tools.
Auto power thanks to sensors in the handle tools.
No calibration required.
Antistatic
Different possibilities of equipotential bonding on the device.

Technical details:

Dimensions (L x W x H): 170 x 151 x 130mm
Weight: 3.8 Kg
Safety class: I, antistatic housing III.
Fuse: T 2A
Temperature accuracy: + - 9 ° C (+- 30°C hot air)
Temperature stability: + - 2 ° C
Earthing: 3.5 mm jack.

Stock and price : Login required

Digital Power, 200W (255W) / 230V.
Digital temperature control 100 ° C - 450°C (550 °C) (depending on the tool).

Very high capacity and fast heating time.
Using a tool up to 200W.
Robust capacitive touch screen.
Intuitive, turn and clicking enter key and guide fingers.
Multilingual menu.
Two connections that can be used to manage the units smoke extraction, warm plates and programmable logic controllers. (PLC)
Automatic recognition tools.
USB port for firmware updates, configuration settings and journalistic systems.
Intelligent tools, A / D converter and memory to handle tools.
Auto power thanks to sensors in the handle tools.
No calibration required.
Antistatic
Different possibilities of equipotential bonding on the device.

Technical details:

Dimensions (L x W x H): 170 x 151 x 130mm
Weight: 3.8 Kg
Safety class: I, antistatic housing III.
Fuse: T 2A
Temperature accuracy: + - 9 ° C (+- 30°C hot air)
Temperature stability: + - 2 ° C
Earthing: 3.5 mm jack.

Related products

Fume extraction units
Heating plates
Hot air irons for soldering station
Hot air station
Soldering baths
Soldering iron for soldering station
Soldering kits
Temperature / humidity measurement
Spare parts

Fume extraction units

WELLER : Fume extraction Zero Smog 6V

Mobile fume extraction unit, for volume extraction with built in turbine. For up to 8 workplaces. One connection included, further connections must be ordered separately.

Code number	Supplier	Model	Description	Max vacuum (Pa)	Max airflow (m³/h)	Noise level (dB(A) @ 1m)	Power supply	Dimensions (mm)	Weight (kg)	Stock	Price ( ExVAT )
810 36666	T0053666699N	Zero Smog 6V	1 à 8 Workstations	2800	615	51	230 V, 50 Hz, 460 VA	450 x 450 x 650	40	Login required

WELLER : Zero Smog 20T Tip Extraction (1-20 workstations)

Welding fume extraction apparatus, for suction at the soldering tip, with integrated turbine

Code number	Supplier	Model	Description	Max vacuum (Pa)	Max airflow (m³/h)	Noise level (dB(A) @ 1m)	Power supply	Dimensions (mm)	Weight (kg)	Stock	Price ( ExVAT )
810 36706	T0053670699N	Zero Smog 20T	1 à 20 Workstations	10000	100	51	230 V / 50 Hz, 530 VA	450 x 450 x 695	45	Login required

WELLER : Fume extraction Zero Smog 4V with Gas filter

Suction system for implementation up to 4 workstations.

Code number	Supplier	Model	Max vacuum (Pa)	Max airflow (m³/h)	Noise level (dB(A) @ 1m)	Power supply	Dimensions (mm)	Weight (kg)	Stock	Price ( ExVAT )
810 36616	T0053661699N	Zero Smog 4V	2700	230	48	230 V, 50 Hz, 275 VA	320 x 320 x 395	19	Login required

Heating plates

WELLER : WXHP 120 Preheating plate 120

Preheating plate to be connected to Weller WX supply unit.

Code number	Supplier	Minimum temperature (°C)	Maximum temperature (°C)	Stock	Price ( ExVAT )
810 27029	T0052702999N	50	200	Login required

Hot air irons for soldering station

WELLER : Hot air iron WXHAP 200

Hot air iron 200 W, 24 V with round hot air nozzle diam. 3 mm

Code number	Supplier	Model	Minimum temperature (°C)	Maximum temperature (°C)	Power (W)	Voltage (V)	Stock	Price ( ExVAT )
810 27119	T0052711999N	WXHAP200	100	550	200	24	Login required

Hot air station

WELLER : Hot air station WXA 2010

2-Channel WXA Station 2 with WXHAP 200 Hot Air Iron, Requires Compressed Air Supply

Code number	Supplier	Model	Channel count	Hot air	Built-in pump	Minimum temperature (°C)	Maximum temperature (°C)	Power (W)	Voltage (V)	Weight (kg)	Stock	Price ( ExVAT )
810 34303	T0053430399N	WXA2010	2			100	550	200	230	4	Login required

Soldering baths

WELLER : Bain de soudure WXSB 200

Technical Data

Code number	Supplier	Power (W)	Voltage (V)	Stock	Price ( ExVAT )
810 27043	T0052704399N	200	24	Login required

Soldering iron for soldering station

WELLER : Soldering iron WXP 200

Voltage : 24 V, Heating output: 200 W

Code number	Supplier	Model	Description	Minimum temperature (°C)	Maximum temperature (°C)	Heat-up time	Power (W)	Voltage (V)	Stock	Price ( ExVAT )
810 29205	T0052920599N	WXP200	Soldering iron	100	450	19 sec. (50°C - 380°C)	200	24	Login required
810 29205 71	T0052920571N	WXP200 550°C	Soldering iron 550°C	100	550		200	24	Login required

WELLER : Soldering iron WXP 120

Voltage: 24 V, Heating output: 120 W

Code number	Supplier	Model	Description	Minimum temperature (°C)	Maximum temperature (°C)	Heat-up time	Power (W)	Voltage (V)	Cable length (m)	Stock
810 29201	T0052920199N	WXP120	Soldering iron	100	450	14 sec. (50°C - 380°C)	120	24	1,6	Login required
810 29210	T0052921099N	WXP120	Solar soldering iron	100	450	14 sec. (50°C - 380°C)	120	24	2,5	Login required
810 29201 70	T0052920170N	WXP120	Soldering iron 550°C - 1.6m	100	550		120	24	1,6	Login required

WELLER : Soldering iron WXP 65

Code number	Supplier	Model	Description	Minimum temperature (°C)	Maximum temperature (°C)	Heat-up time	Power (W)	Voltage (V)	Cable length (m)	Stock	Price ( ExVAT )
810 29211	T0052921199N	WXP65	Soldering iron	100	450	7 sec. (50°C - 380°C)	65	24	1,6	Login required

WELLER : Desoldering tweezer WXMT

Delivered without tip, 80W (2 x 40W)

Code number	Supplier	Model	Description	Minimum temperature (°C)	Maximum temperature (°C)	Heat-up time	Voltage (V)	Stock	Price ( ExVAT )
810 13177	T0051317799N	WXMT	Handpiece for RTW tip	100	450	3 sec. (50°C - 350°C)	12	Login required

WELLER : Micro soldering iron WXMP

Voltage: 12V, Maximum power: 55W with RT11 tip

Code number	Supplier	Model	Description	Minimum temperature (°C)	Maximum temperature (°C)	Heat-up time	Power (W)	Voltage (V)	Stock	Price ( ExVAT )
810 29203	T0052920399N	WXMP	Handpiece for RT tip	100	450	5 sec. (50°C - 350°C)	55	12	Login required

WELLER : WXSF 120 FlowinSmart

Solder Feeder System 120 W

Code number	Supplier	Model	Power (W)	Voltage (V)	Weight (kg)	Stock	Price ( ExVAT )
810 13911	T0051391199	WXSF 120	120	24	1	Login required

WELLER : Micro soldering iron WXMP MS

Voltage: 12V, Maximum power: 55W with RT11 tip MS

Code number	Supplier	Model	Minimum temperature (°C)	Maximum temperature (°C)	Heat-up time	Power (W)	Voltage (V)	Stock	Price ( ExVAT )
810 29213	T0052921399N	WXMP MS	100	450	5 sec. (50°C - 350°C)	55	12	Login required

WELLER : Soldering iron WXP 90

Voltage: 24 V, Power: 90 W

Code number	Supplier	Model	Description	Minimum temperature (°C)	Maximum temperature (°C)	Heat-up time	Power (W)	Voltage (V)	Stock	Price ( ExVAT )
810 29224	T0052922499N	WXP90	Soldering iron	50	450	5 sec. (50°C - 350°C)	90	24	Login required

WELLER : Desoldering tweezer WXMT MS

Intelligent Micro Desoldering Tweezers 2 x 40 W, 12 V

Code number	Supplier	Model	Description	Minimum temperature (°C)	Maximum temperature (°C)	Heat-up time	Stock	Price ( ExVAT )
810 13179	T0051317999N	WXMT MS	Handpiece for RTW tip	100	450	3 sec. (50°C - 350°C)	Login required

WELLER : Soldering iron WXPP MS (RTP Pico)

Handpiece for high precision micro soldering applications: 0402 to 01005.

Code number	Supplier	Model	Heat-up time	Power (W)	Voltage (V)	Stock	Price ( ExVAT )
810 29228	T0052922899	WXPP MS	3 sec. (50°C - 350°C)	40	12	Login required

WELLER : Soldering iron WXUP MS (RTU Ultra)

Handpiece for heavy duty soldering applications and largest components.

Code number	Supplier	Model	Heat-up time	Power (W)	Voltage (V)	Stock	Price ( ExVAT )
810 29230	T0052923099	WXUP MS	7 sec. (50°C - 350°C)	150	12	Login required

WELLER : Soldering iron WXPP (RTP Pico)

Handpiece for high precision pico soldering applications: 0402 to 01005.

Code number	Supplier	Model	Heat-up time	Power (W)	Voltage (V)	Stock	Price ( ExVAT )
810 29226	T0052922699	WXPP	3 sec. (50°C - 350°C)	40	12	Login required

Soldering kits

WELLER : Soldering kit WXP 120

Kit Contains:

Code number	Supplier	Model	Stock	Price ( ExVAT )
810 29202	T0052920299N	Kit WXP120	Login required

WELLER : Soldering kit WXMP

Kit contains:

Code number	Supplier	Model	Stock	Price ( ExVAT )
810 29204	T0052920499N	Kit WXMP	Login required

WELLER : Desoldering tweezer kit WXMT

Kit contains:

Code number	Supplier	Model	Stock	Price ( ExVAT )
810 13178	T0051317899N	Kit WXMT	Login required

WELLER : Soldering kit WXP 200

Kit contains:

Code number	Supplier	Model	Stock	Price ( ExVAT )
810 29206	T0052920699N	Kit WXP200	Login required

WELLER : Hot air kit WXHAP 200

Code number	Supplier	Power (W)	Voltage (V)	Stock	Price ( ExVAT )
810 27120	T0052712099N	200	24	Login required

WELLER : Soldering kit WXMP MS

Kit contains:

Code number	Supplier	Model	Stock	Price ( ExVAT )
810 29217	T0052921799N	WXMP MS	Login required

WELLER : Soldering kit WXUP MS

For heavy duty soldering applications and largest components.

Code number	Supplier	Stock	Price ( ExVAT )
810 29233	T0052923399	Login required

Temperature / humidity measurement

WELLER : High-precision temperature measurement device WCU

Compact stand-alone high-precision temperature measurement device for quick and accurate temperature measurement.

Code number	Supplier	Stock	Price ( ExVAT )
810 34501	T0053450199	Login required

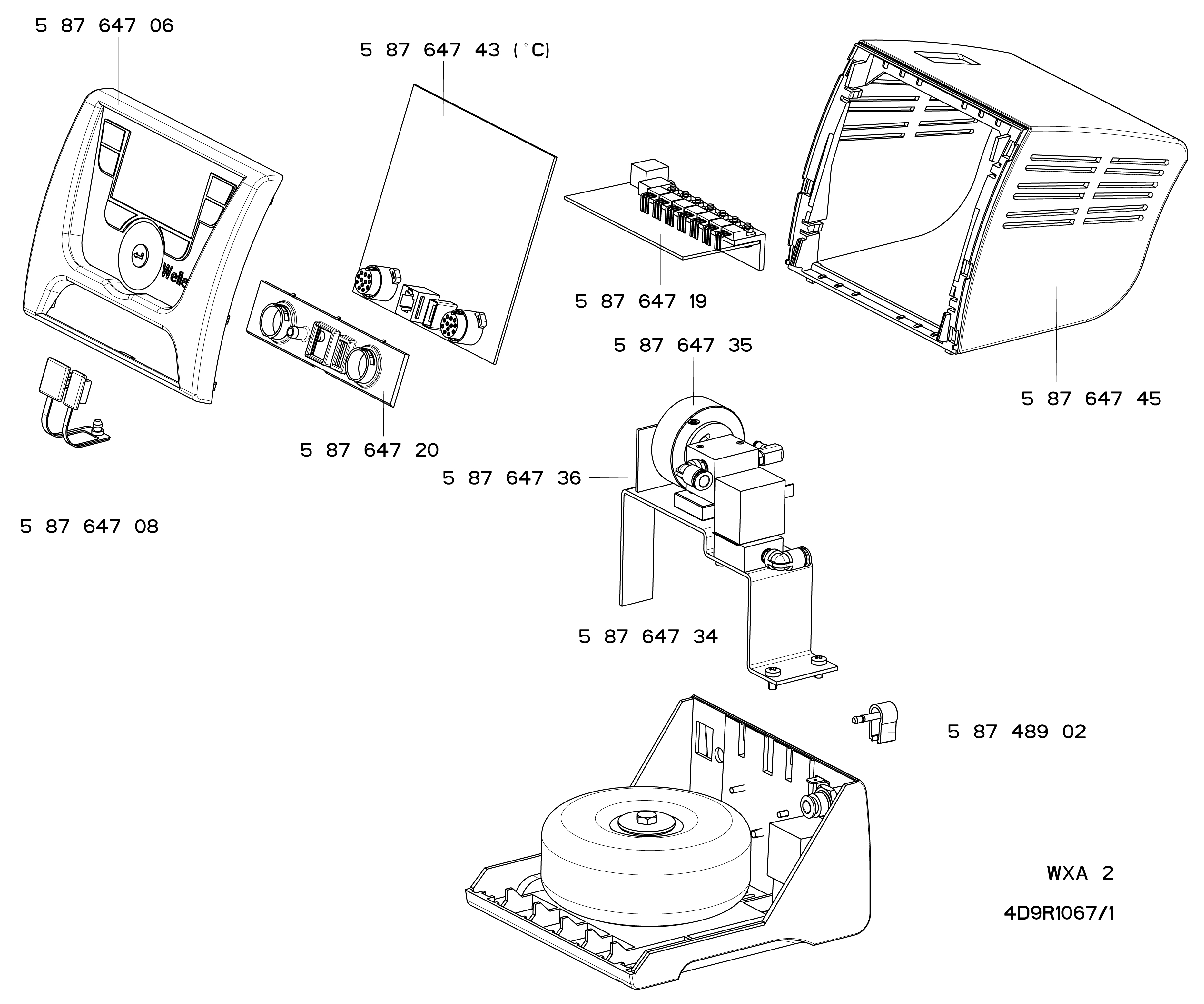

Spare parts

Consist of

	Code number	Supplier	Description
	810 87489 02	T0058748902	ANGLED JACK PLUG 3,5MM
	810 87647 08	T0058764708	COVER CAP FOR WX USB INTERFACE
