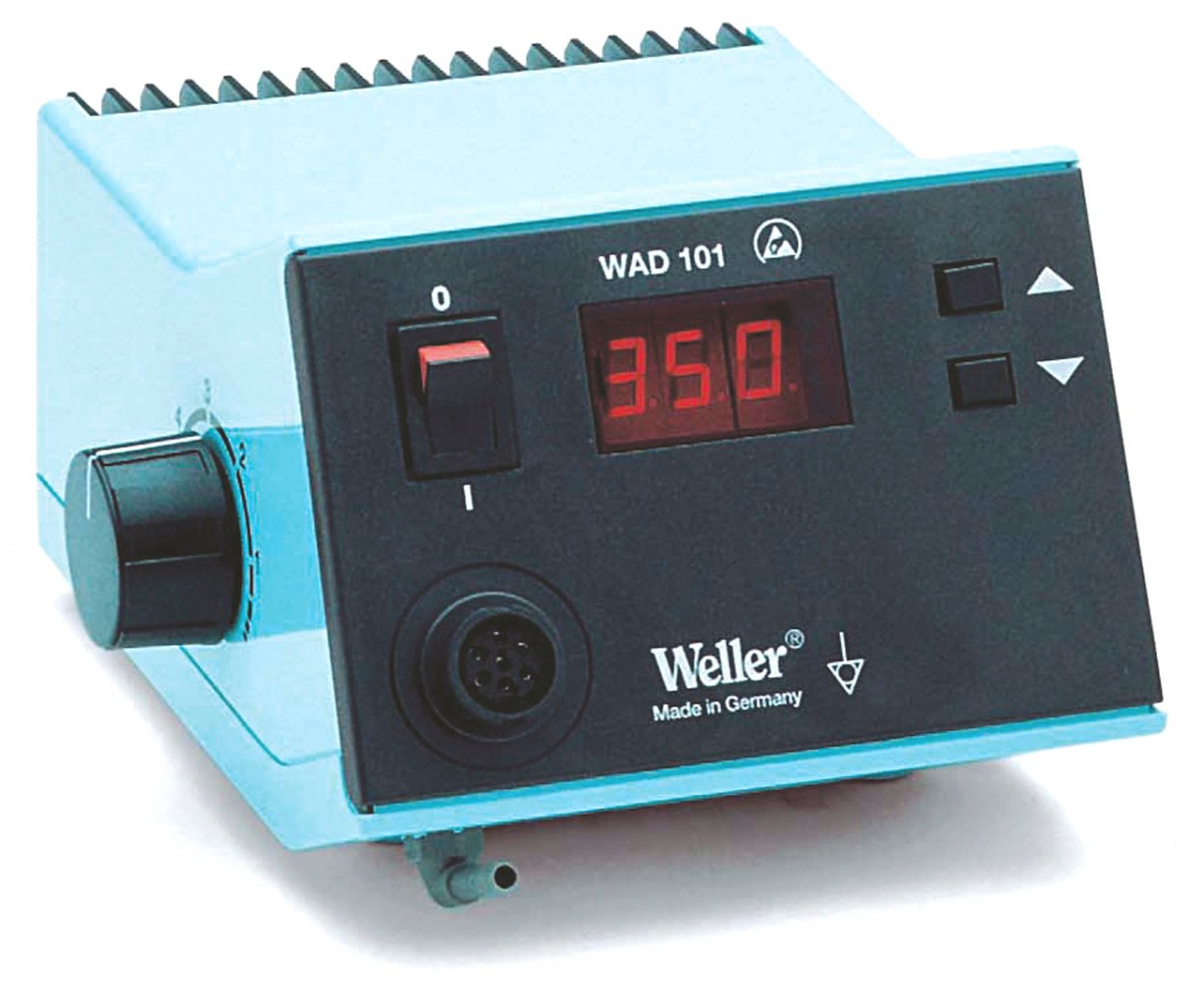

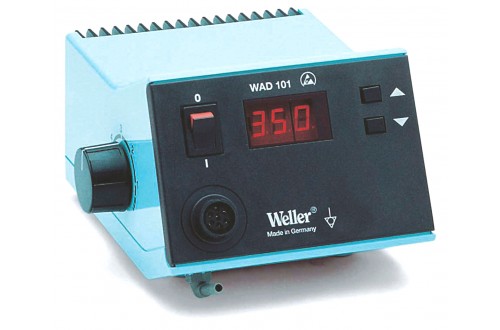

WELLER - Power unit PU WAD101

Click to zoom

For illustration purpose only

ESD_safe
Brand :	WELLER
Code number :	810 32686
Supplier :	T0053268699N
Model :	PU WAD101
Description :	Power Unit
Channel count :	1
Hot air :
Built-in pump :
Minimum temperature (°C) :	50
Maximum temperature (°C) :	550
Power (W) :	105

Digital power unit 105W, 230V, compressed air or inert gas operated.

1 channel
Digitally controlled electronic for soldering and hot air tools up to 100W.
Inlet pressure 400 KPA (58 psi) oil-free, dry compressed air or inert gas
Temperature range 50°C-550°C (HAP 1)
Temperature control via buttons
Air volume control via regulator
3-position digital display
Protection class 1
Antistatic housing
Equipotential bonding (normal state hard grounded)
Automatic tool recognition
Dimensions: 166 x 134 x 101 mm (L x W x H)
For use with external compressed air

Stock and price : Login required

Digital power unit 105W, 230V, compressed air or inert gas operated.

1 channel
Digitally controlled electronic for soldering and hot air tools up to 100W.
Inlet pressure 400 KPA (58 psi) oil-free, dry compressed air or inert gas
Temperature range 50°C-550°C (HAP 1)
Temperature control via buttons
Air volume control via regulator
3-position digital display
Protection class 1
Antistatic housing
Equipotential bonding (normal state hard grounded)
Automatic tool recognition
Dimensions: 166 x 134 x 101 mm (L x W x H)
For use with external compressed air

Related products

Heating plates
Hot air irons for soldering station
Hot air station
Soldering baths
Soldering iron for soldering station
Soldering kits
Spare parts

Heating plates

WELLER : Heating plate WHP 80

Heating plate 80 W / 24 V.

Code number	Supplier	Model	Description	Minimum temperature (°C)	Maximum temperature (°C)	Power (W)	Voltage (V)	Stock	Price ( ExVAT )
810 27028	T0052702899N	WHP 80	Heating plate	50	200	80	24	Login required

Hot air irons for soldering station

WELLER : Hot air iron HAP 1

Hot air iron 100 W, 24 V with round nozzle R 06 dia. 3.0 mm

Code number	Supplier	Model	Minimum temperature (°C)	Maximum temperature (°C)	Power (W)	Voltage (V)	Stock	Price ( ExVAT )
810 27115	T0052711599N	HAP1	50	550	100	24	Login required

Hot air station

WELLER : Hot air station WAD101

Hot air station digital 100 W with hot air kit HAP1.

Code number	Supplier	Model	Channel count	Hot air	Built-in pump	Minimum temperature (°C)	Maximum temperature (°C)	Power (W)	Voltage (V)	Stock	Price ( ExVAT )
810 32666	T0053266699N	WAD 101	1			50	550	105	230	Login required

Soldering baths

WELLER : Soldering bath WSB 80

Soldering bath WSB 80 :

Code number	Supplier	Model	Stock	Price ( ExVAT )
810 27040	T0052704099N	WSB 80	Login required

Soldering iron for soldering station

WELLER : Soldering iron WP 80

Soldering iron 80 W, 24V.

Code number	Supplier	Model	Minimum temperature (°C)	Maximum temperature (°C)	Heat-up time	Power (W)	Voltage (V)	Stock	Price ( ExVAT )
810 29180	T0052918099N	WP80	50	450	10 sec. (50°C - 350°C)	80	24	Login required

WELLER : Soldering iron WP 65

Power output: 65 W, Voltage : 24V

Code number	Supplier	Model	Description	Minimum temperature (°C)	Maximum temperature (°C)	Heat-up time	Power (W)	Voltage (V)	Stock	Price ( ExVAT )
810 29215	T0052921599N	WP 65	Soldering iron	100	450	7 sec. (50°C - 380°C)	65	24	Login required

WELLER : Soldering iron FE 75

Compatible with soldering stations: PU 81, PUD 81, PUD 81i, PU WAD 101, PUD 121, PU WAD 101IG, PUD 151, WD 1, WD 1M, WR 2, WR 3M, WR 3ME

Code number	Supplier	Model	Minimum temperature (°C)	Maximum temperature (°C)	Heat-up time	Power (W)	Voltage (V)	Stock	Price ( ExVAT )
810 29166	T0052916699N	FE75	50	450	10 sec. (50°C - 350°C)	80	24	Login required

WELLER : Soldering iron LR 21

Universal application favor to its wide range of tips.

Code number	Supplier	Model	Minimum temperature (°C)	Maximum temperature (°C)	Heat-up time	Power (W)	Voltage (V)	Stock	Price ( ExVAT )
810 25106	T0052510699N	LR 21	50	450	38 sec. (50°C - 350°C)	50	24	Login required

WELLER : Desoldering tweezer WTA 50

Power 2 x 25W, Voltage 24V

Code number	Supplier	Model	Description	Minimum temperature (°C)	Maximum temperature (°C)	Heat-up time	Voltage (V)	Stock	Price ( ExVAT )
810 13171	T0051317199N	WTA50	Desoldering tweezer	50	450	65 sec. (50°C - 450°C)	24	Login required

Soldering kits

WELLER : Desoldering tweezer kit WTA 50

Kit contains:

Code number	Supplier	Model	Stock	Price ( ExVAT )
810 33133	T0053313399N	KIT WTA50	Login required

WELLER : Hot air kit HAP 1

The HAP 1 provides a directional hot air flow that is adjustable.

Code number	Supplier	Stock	Price ( ExVAT )
810 27118	T0052711899N	Login required

WELLER : Soldering kit LR 21

Kit contains:

Code number	Supplier	Model	Stock	Price ( ExVAT )
810 29187	T0052918799N	Kit LR21 with WDH30	Login required

WELLER : Soldering kit WP 80

Kit contains:

Code number	Supplier	Model	Stock	Price ( ExVAT )
810 29181	T0052918199N	KIT WP80	Login required

WELLER : Soldering kit MPR 80

Kit contains:

Code number	Supplier	Model	Stock	Price ( ExVAT )
810 33131	T0053313199	Kit MPR80	Login required

WELLER : Soldering kit FE 75

Kit contains:

Code number	Supplier	Model	Stock	Price ( ExVAT )
810 33151	T0053315199N	Kit FE75	Login required

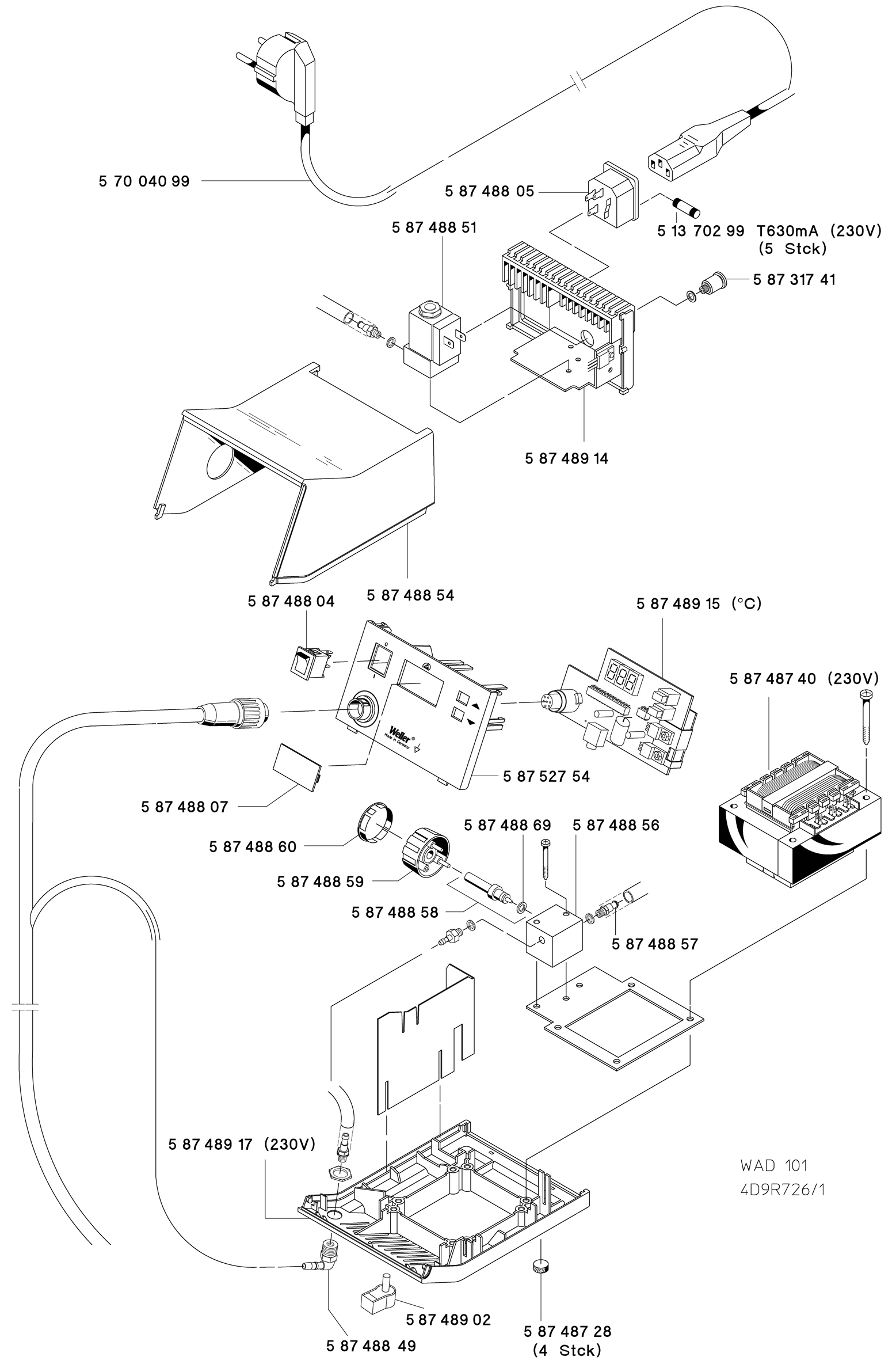

Spare parts

Consist of

Code number	Supplier	Description
810 70040	T0057004099	CORD H05VV-F
810 87487 28	T0058748728	RUBBER FOOT x4
810 87488 51	T0058748851	SOLENOID VALVE 2/2 24V DC NB 1,6
810 87489 02	T0058748902	ANGLED JACK PLUG 3,5MM
