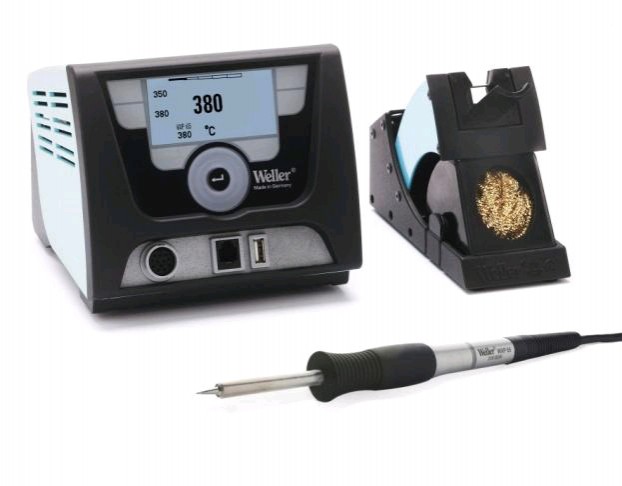

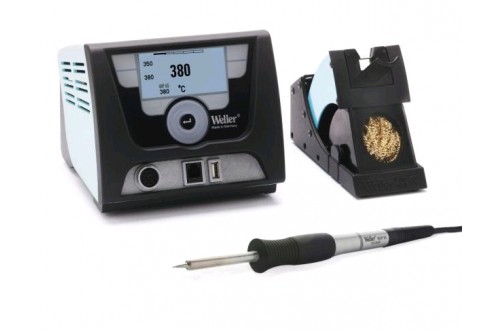

WELLER - Soldering Station WX 1012 with iron WXP65

Click to zoom

For illustration purpose only

ESD_safe
Brand :	WELLER
Code number :	810 34273
Supplier :	T0053427399N
Model :	WX 1012
Minimum temperature (°C) :	100
Maximum temperature (°C) :	450
Voltage (V) :	230
tag :	WX

Soldering station, digital, 200W, 230V with soldering iron WXP65 (65W).

Kit consists of:

WX 1 control unit (200W/230V)
WXP 65 soldering iron, 65W / 24V, XNT 1 tip
WDH 50 safety rest

WX 1 CONTROL UNIT 230V UK F/G :

Digital Power Unit, 200W / 230V.
Digital temperature control 50 ° C - 550 ° C (depending on the tool).

Very high capacity and fast heating time.
- Using a tool to 200W.
Robust capacitive touch screen.
Intuitive, twist and click to enter key and guide fingers.
Multilingual menu.
Automatic recognition tools.
USB port for firmware updates, configuration settings and journalistic systems.
Intelligent tools, A / D converter and memory tools in the handle.
Auto power thanks to sensors in the handle tools.
No calibration required.
Antistatic
Different possibilities of equipotential bonding on the device.

Technical Details:

Dimensions (L x W x H): 170 x 151 x 130mm
Weight: 3.2 Kg
Safety class: I, static frame.
Fuse: T 2A
Temperature accuracy: + - 9 ° C
Temperature Stability: + - 2 ° C
Earthing: 3.5 mm jack.

IRON WXP65 :

65 W | 24 V / max. temperature 450°C.
Very fast heat up time, suitable for small, extreme precision soldering.
Excellent performance for leaded and lead free soldering applications
ESD safe to protect sensitive components
Uses XNT series tips

WDH 10 SUPPORT :

Safety rest for WSP80, WP80, WP120.

Stock and price : Login required

Soldering station, digital, 200W, 230V with soldering iron WXP65 (65W).

Kit consists of:

WX 1 control unit (200W/230V)
WXP 65 soldering iron, 65W / 24V, XNT 1 tip
WDH 50 safety rest

WX 1 CONTROL UNIT 230V UK F/G :

Digital Power Unit, 200W / 230V.
Digital temperature control 50 ° C - 550 ° C (depending on the tool).

Very high capacity and fast heating time.
- Using a tool to 200W.
Robust capacitive touch screen.
Intuitive, twist and click to enter key and guide fingers.
Multilingual menu.
Automatic recognition tools.
USB port for firmware updates, configuration settings and journalistic systems.
Intelligent tools, A / D converter and memory tools in the handle.
Auto power thanks to sensors in the handle tools.
No calibration required.
Antistatic
Different possibilities of equipotential bonding on the device.

Technical Details:

Dimensions (L x W x H): 170 x 151 x 130mm
Weight: 3.2 Kg
Safety class: I, static frame.
Fuse: T 2A
Temperature accuracy: + - 9 ° C
Temperature Stability: + - 2 ° C
Earthing: 3.5 mm jack.

IRON WXP65 :

65 W | 24 V / max. temperature 450°C.
Very fast heat up time, suitable for small, extreme precision soldering.
Excellent performance for leaded and lead free soldering applications
ESD safe to protect sensitive components
Uses XNT series tips

WDH 10 SUPPORT :

Safety rest for WSP80, WP80, WP120.

Consist of

	Code number	Supplier	Description
1x	810 34173	T0053417399N	WX 1 CONTROL UNIT 230V UK F/G
1x	810 29211	T0052921199N	IRON WXP65
1x	810 44851	T0054485199	SOLDERING TIP XNT-A 1,6MM
1x	810 15121	T0051512199N	WDH 10 SUPPORT
