ELECTRO PJP - double jacket PVC cable - 1000V

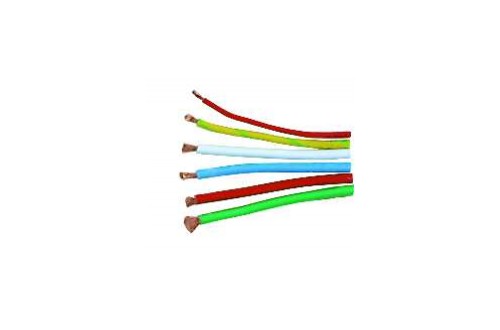

Click to zoom

For illustration purpose only

Brand : ELECTRO PJP
Code numberSupplier Section (mm²) Max. current (A) Outside ø (mm) AWG / Gauge Length (m) Color PackingStockPrice ( ExVAT )
421 90700 9002/SPOOL/10-N 0,40 6 2,0 21 10 Black On plastic spool
421 90710 9002/SPOOL/100-N
224565
0,40 6 2,0 21 100 Black On plastic spool
421 90702 9002/SPOOL/10-R 0,40 6 2,0 21 10 Red On plastic spool
421 90712 9002/SPOOL/100-R
224566
0,40 6 2,0 21 100 Red On plastic spool
421 90704 9002/SPOOL/10-J 0,40 6 2,0 21 10 Yellow On plastic spool
421 90714 9002/SPOOL/100-J
224564
0,40 6 2,0 21 100 Yellow On plastic spool
421 90705 9002/SPOOL/10-V 0,40 6 2,0 21 10 Green On plastic spool
421 90715 9002/SPOOL/100-V
224567
0,40 6 2,0 21 100 Green On plastic spool
421 90706 9002/SPOOL/10-BL 0,40 6 2,0 21 10 Blue On plastic spool
421 90716 9002/SPOOL/100-BL
224563
0,40 6 2,0 21 100 Blue On plastic spool
421 90709 9002/SPOOL/10-BC 0,40 6 2,0 21 10 White On plastic spool
421 90719 9002/SPOOL/100-BC
224562
0,40 6 2,0 21 100 White On plastic spool
421 90900 9007/SPOOL/10-N 0,50 10 2,8 20 10 Black On plastic spool
421 90910 9007/SPOOL/100-N
224572
0,50 10 2,8 20 100 Black On plastic spool
421 90902 9007/SPOOL/10-R 0,50 10 2,8 20 10 Red On plastic spool
Code numberSupplier Section (mm²) Max. current (A) Outside ø (mm) AWG / Gauge Length (m) Color PackingStockPrice ( ExVAT )
421 90912 9007/SPOOL/100-R
224573
0,50 10 2,8 20 100 Red On plastic spool
421 90904 9007/SPOOL/10-J 0,50 10 2,8 20 10 Yellow On plastic spool
421 90914 9007/SPOOL/100-J
224571
0,50 10 2,8 20 100 Yellow On plastic spool
421 90905 9007/SPOOL/10-V 0,50 10 2,8 20 10 Green On plastic spool
421 90915 9007/SPOOL/100-V
224574
0,50 10 2,8 20 100 Green On plastic spool
421 90906 9007/SPOOL/10-BL 0,50 10 2,8 20 10 Blue On plastic spool
421 90916 9007/SPOOL/100-BL
224570
0,50 10 2,8 20 100 Blue On plastic spool
421 90909 9007/SPOOL/10-BC 0,50 10 2,8 20 10 White On plastic spool
421 90919 9007/SPOOL/100-BC
224569
0,50 10 2,8 20 100 White On plastic spool
421 9090Y 9007/SPOOL/10-JV 0,50 10 2,8 20 10 Yellow / Green On plastic spool
421 9091Y 9007/SPOOL/100-JV 0,50 10 2,8 20 100 Yellow / Green On plastic spool
421 91000 9010/SPOOL/10-N 0,75 12 3,7 18 10 Black On plastic spool
421 91010 9010/SPOOL/100-N
224589
0,75 12 3,7 18 100 Black On plastic spool
421 91011 9010/SPOOL/100-BN
224586
0,75 12 3,7 18 100 Brown On plastic spool
421 91002 9010/SPOOL/10-R 0,75 12 3,7 18 10 Red On plastic spool
Code numberSupplier Section (mm²) Max. current (A) Outside ø (mm) AWG / Gauge Length (m) Color PackingStockPrice ( ExVAT )
421 91012 9010/SPOOL/100-R
224590
0,75 12 3,7 18 100 Red On plastic spool
421 91004 9010/SPOOL/10-J 0,75 12 3,7 18 10 Yellow On plastic spool
421 91014 9010/SPOOL/100-J
224588
0,75 12 3,7 18 100 Yellow On plastic spool
421 91005 9010/SPOOL/10-V 0,75 12 3,7 18 10 Green On plastic spool
421 91015 9010/SPOOL/100-V
224591
0,75 12 3,7 18 100 Green On plastic spool
421 91006 9010/SPOOL/10-BL 0,75 12 3,7 18 10 Blue On plastic spool
421 91016 9010/SPOOL/100-BL
224585
0,75 12 3,7 18 100 Blue On plastic spool
421 91009 9010/SPOOL/10-BC 0,75 12 3,7 18 10 White On plastic spool
421 91019 9010/SPOOL/100-BC
224584
0,75 12 3,7 18 100 White On plastic spool
421 91100 9012/SPOOL/10-N 1,0 20 3,8 17 10 Black On plastic spool
421 91110 9012/SPOOL/100-N
224596
1,0 20 3,8 17 100 Black On plastic spool
421 91101 9012/SPOOL/10-BN 1,0 20 3,8 17 10 Brown On plastic spool
421 91111 9012/SPOOL/100-BN
224595
1,0 20 3,8 17 100 Brown On plastic spool
421 91102 9012/SPOOL/10-R 1,0 20 3,8 17 10 Red On plastic spool
421 91112 9012/SPOOL/100-R
224597
1,0 20 3,8 17 100 Red On plastic spool
Code numberSupplier Section (mm²) Max. current (A) Outside ø (mm) AWG / Gauge Length (m) Color PackingStockPrice ( ExVAT )
421 91104 9012/SPOOL/10-J 1,0 20 3,8 17 10 Yellow On plastic spool
421 91114 9012/SPOOL/100-J
252686
1,0 20 3,8 17 100 Yellow On plastic spool
421 91105 9012/SPOOL/10-V 1,0 20 3,8 17 10 Green On plastic spool
421 91115 9012/SPOOL/100-V
224598
1,0 20 3,8 17 100 Green On plastic spool
421 91106 9012/SPOOL/10-BL 1,0 20 3,8 17 10 Blue On plastic spool
421 91116 9012/SPOOL/100-BL
224594
1,0 20 3,8 17 100 Blue On plastic spool
421 91109 9012/SPOOL/10-BC 1,0 20 3,8 17 10 White On plastic spool
421 91119 9012/SPOOL/100-BC
224593
1,0 20 3,8 17 100 White On plastic spool
421 9110Y 9012/SPOOL/10-JV 1,0 20 3,8 17 10 Yellow / Green On plastic spool
421 9111Y 9012/SPOOL/100-JV 1,0 20 3,8 17 100 Yellow / Green On plastic spool
421 91200 9015/SPOOL/10-N 1,5 25 3,8 15 10 Black On plastic spool
421 91210 9015/SPOOL/100-N
224603
1,5 25 3,8 15 100 Black On plastic spool
421 91202 9015/SPOOL/10-R 1,5 25 3,8 15 10 Red On plastic spool
421 91212 9015/SPOOL/100-R
224604
1,5 25 3,8 15 100 Red On plastic spool
421 91204 9015/SPOOL/10-J 1,5 25 3,8 15 10 Yellow On plastic spool
Code numberSupplier Section (mm²) Max. current (A) Outside ø (mm) AWG / Gauge Length (m) Color PackingStockPrice ( ExVAT )
421 91214 9015/SPOOL/100-J
224602
1,5 25 3,8 15 100 Yellow On plastic spool
421 91205 9015/SPOOL/10-V 1,5 25 3,8 15 10 Green On plastic spool
421 91215 9015/SPOOL/100-V
224605
1,5 25 3,8 15 100 Green On plastic spool
421 91206 9015/SPOOL/10-BL 1,5 25 3,8 15 10 Blue On plastic spool
421 91216 9015/SPOOL/100-BL
224601
1,5 25 3,8 15 100 Blue On plastic spool
421 91209 9015/SPOOL/10-BC 1,5 25 3,8 15 10 White On plastic spool
421 91219 9015/SPOOL/100-BC
224600
1,5 25 3,8 15 100 White On plastic spool
421 9120Y 9015/SPOOL/10-JV 1,5 25 3,8 15 10 Yellow / Green On plastic spool
421 9121Y 9015/SPOOL/100-JV 1,5 25 3,8 15 100 Yellow / Green On plastic spool
421 91300 9017/SPOOL/10-N 2,5 36 3,9 13 10 Black On plastic spool
421 91310 9017/SPOOL/100-N
224616
2,5 36 3,9 13 100 Black On plastic spool
421 91301 9017/SPOOL/10-BN 2,5 36 3,9 13 10 Brown On plastic spool
421 91311 9017/SPOOL/100-BN 2,5 36 3,9 13 100 Brown On plastic spool
421 91302 9017/SPOOL/10-R 2,5 36 3,9 13 10 Red On plastic spool
421 91312 9017/SPOOL/100-R
224617
2,5 36 3,9 13 100 Red On plastic spool
Code numberSupplier Section (mm²) Max. current (A) Outside ø (mm) AWG / Gauge Length (m) Color PackingStockPrice ( ExVAT )
421 91304 9017/SPOOL/10-J 2,5 36 3,9 13 10 Yellow On plastic spool
421 91314 9017/SPOOL/100-J
224615
2,5 36 3,9 13 100 Yellow On plastic spool
421 91305 9017/SPOOL/10-V 2,5 36 3,9 13 10 Green On plastic spool
421 91315 9017/SPOOL/100-V
224618
2,5 36 3,9 13 100 Green On plastic spool
421 91306 9017/SPOOL/10-BL 2,5 36 3,9 13 10 Blue On plastic spool
421 91316 9017/SPOOL/100-BL
224614
2,5 36 3,9 13 100 Blue On plastic spool
421 91308 9017/SPOOL/10-G 2,5 36 3,9 13 10 Grey On plastic spool
421 91318 9017/SPOOL/100-G 2,5 36 3,9 13 100 Grey On plastic spool
421 91309 9017/SPOOL/10-BC 2,5 36 3,9 13 10 White On plastic spool
421 91319 9017/SPOOL/100-BC
224613
2,5 36 3,9 13 100 White On plastic spool
421 9130Y 9017/SPOOL/10-JV 2,5 36 3,9 13 10 Yellow / Green On plastic spool
421 9131Y 9017/SPOOL/100-JV 2,5 36 3,9 13 100 Yellow / Green On plastic spool
