COMPONENTS CORPORATION - Test point TP-104

COMPONENTS CORPORATION - Test point TP-104

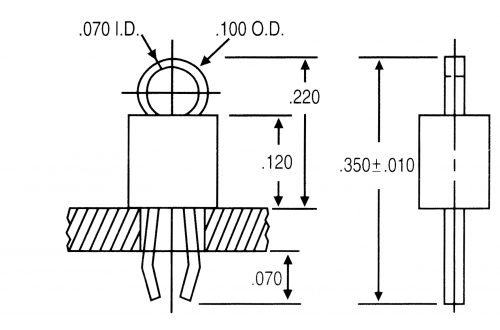

Click to zoom

For illustration purpose only

Brand : COMPONENTS CORPORATION

Color coded test point.

The TP-104 Series takes highly-efficient and economical loop configured test point design one step further, by adding a plastic standoff that boosts visibility and allows for easy polarization and identification.
The TP-104 incorporates following features:

  • solid non-slip grip of test clips and probes
  • low profile
  • single hole wave-solderable mounting
  • elimination of skin punctures suffered by users of wrap posts as substitute test points

The 30-position is breakaway strips.

Specification

  • Contact material: .015" x .030" Phosphor Bronze #510 Alloy
  • Finish material: .0001" Matte Tin over .00005" Nickel
  • Colar material: 15% Glass Filled Polyester
Code numberSupplierModel Nombre de contacts Width Height Total height Mounting holes Color Max. current PackingStockPrice ( ExVAT )
452 43003 TP104-01-00 1M TP104-01-00 1M 1 .125" .220" .350" .063" Black 2 A x1000
452 43000 TP104-30-00 TP104-30-00 30 .220" .350" .063" Black 2 A x1
452 43001 TP104-01-01 1M TP104-01-01 1M 1 .125" .220" .350" .063" Brown 2 A x1000
452 43004 TP104-01-02 1M TP104-01-02 1M 1 .125" .220" .350" .063" Red 2 A x1000
452 43013 TP104-01-03 1M TP104-01-03 1M 1 .125" .220" .350" .063" Orange 2 A x1000
452 43014 TP104-01-04 1M TP104-01-04 1M 1 .125" .220" .350" .063" Yellow 2 A x1000
452 43015 TP104-01-05 1M TP104-01-05 1M 1 .125" .220" .350" .063" Green 2 A x1000
452 43016 TP104-01-06 1M TP104-01-06 1M 1 .125" .220" .350" .063" Blue 2 A x1000
452 43017 TP104-01-07 1M TP104-01-07 1M 1 .125" .220" .350" .063" Purple 2 A x1000
452 43018 TP104-01-08 1M TP104-01-08 1M 1 .125" .220" .350" .063" Gray 2 A x1000
452 43009 TP104-01-09 1M TP104-01-09 1M 1 .125" .220" .350" .063" White 2 A x1000
